10.5 EMI
The TPSM53604 is compliant with EN55011 Class-B radiated emissions. Figure 10-5 and Figure 10-6 show typical examples of radiated emissions plots for the TPSM53604. The graphs include the plots of the antenna in the horizontal and vertical positions.
EMI plots were measured using the standard TPSM53604EVM with no input filter.

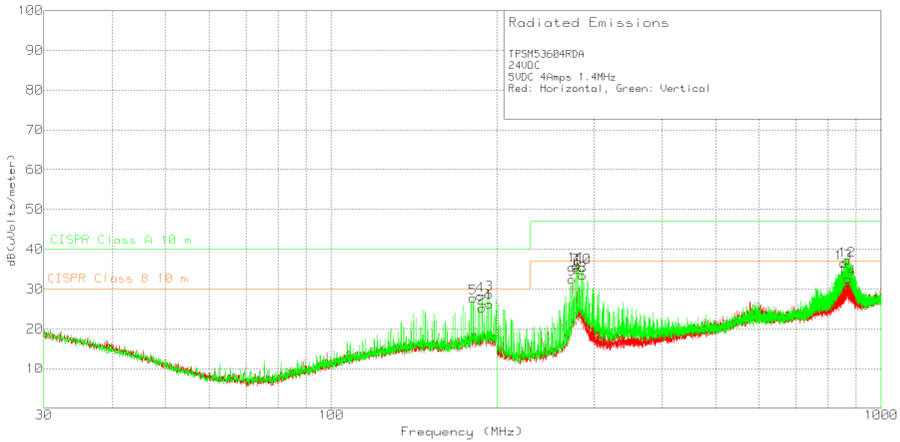

Figure 10-5 Radiated Emissions 24-V Input, 5-V Output, 4-A Load

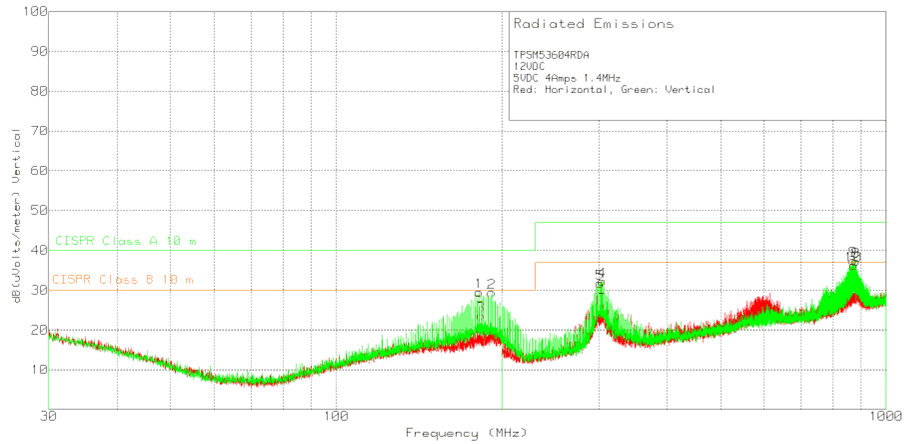

Figure 10-6 Radiated Emissions 12-V Input, 5-V Output, 4-A Load
