7.4.1 Fault States

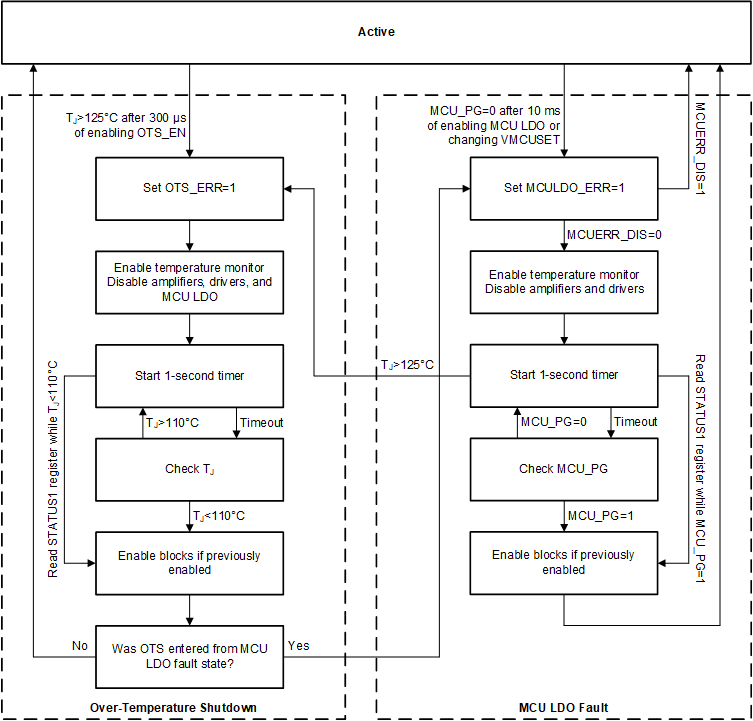

Figure 7-9 Fault States DiagramThe TPS8804 device uses several monitors to alert the MCU when system irregularities occur. In addition to alerting the MCU, two monitors cause the device to enter protective fault states:
- MCULDO under-voltage
- system over-temperature
The fault states reduce risk of damage and brown-outs to the system in the event of short circuits or other power errors.
