7.3.1 System Power-up

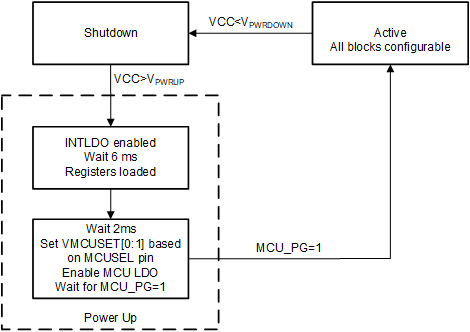

Figure 7-1 Power-up State DiagramThe TPS8804 can power-up from a DC power supply above 3.6 V connected to the VCC pin. When the VCC voltage exceeds the VPWRUP threshold, the TPS8804 initializes for 6 ms. After the initialization, the MCUSEL pin is sensed for 2 ms to determine the MCULDO voltage and program the VMCUSET register. Table 7-1 indicates the VMCU setting for each MCUSEL configuration. The MCULDO is enabled and the system waits for VMCU to reach its power-good threshold (typically 85% of its target voltage). It is only after VMCU reaches its power-good threshold that I2C communication is allowed with the TPS8804. This sequence of events is outlined in Figure 7-1.
Table 7-1 VMCU Power-up Voltage
| MCUSEL Connection | VMCU (V) |
|---|---|
| 620-Ω to GND | 1.5 |
| Short to GND | 1.8 |
| Short to VINT | 2.5 |
| 330-pF to GND | 3.3 |
