8.2.3 Application Curves
All curves use the schematics shown in Figure 8-1. The photo amplifier curves do not have the 470 kΩ PREF resistor installed.

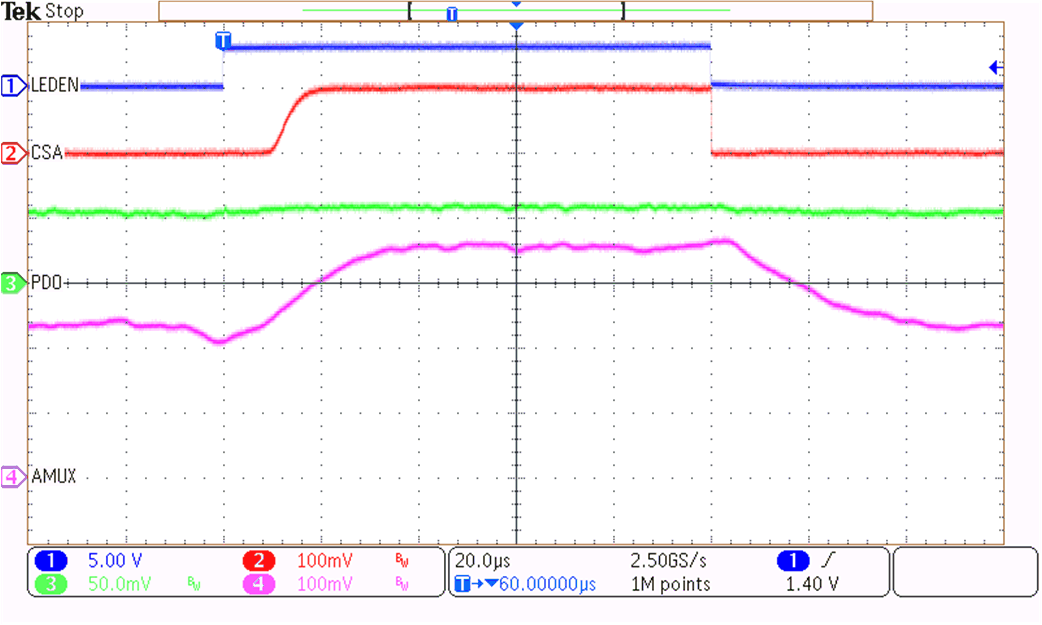

Figure 8-2 LED Driver and Photo Amplifier Waveforms

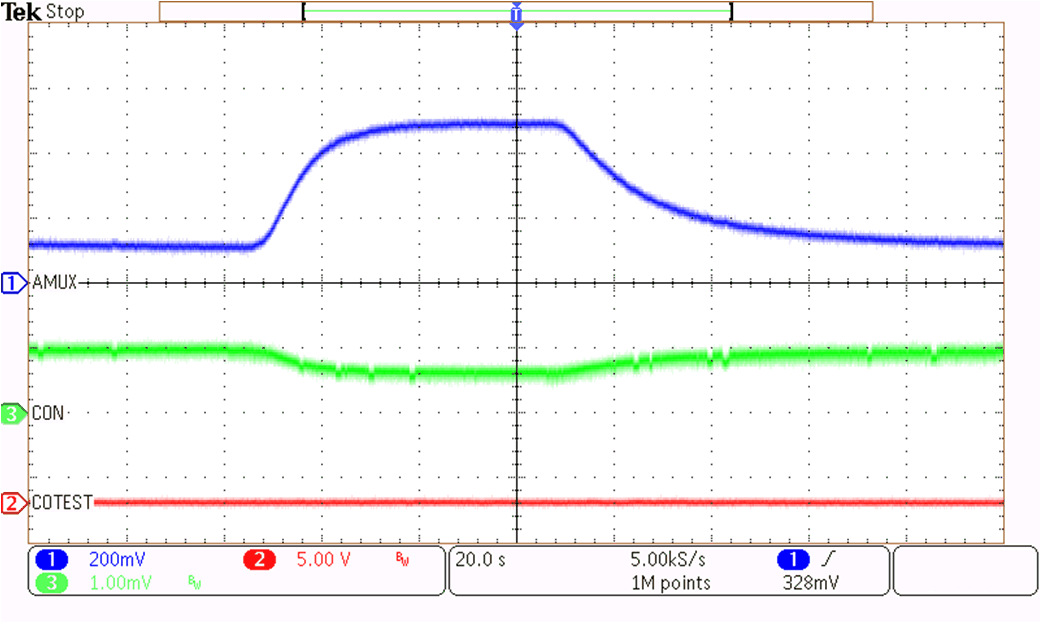

Figure 8-4 Carbon Monoxide Amplifier Waveforms with Calibration Gas

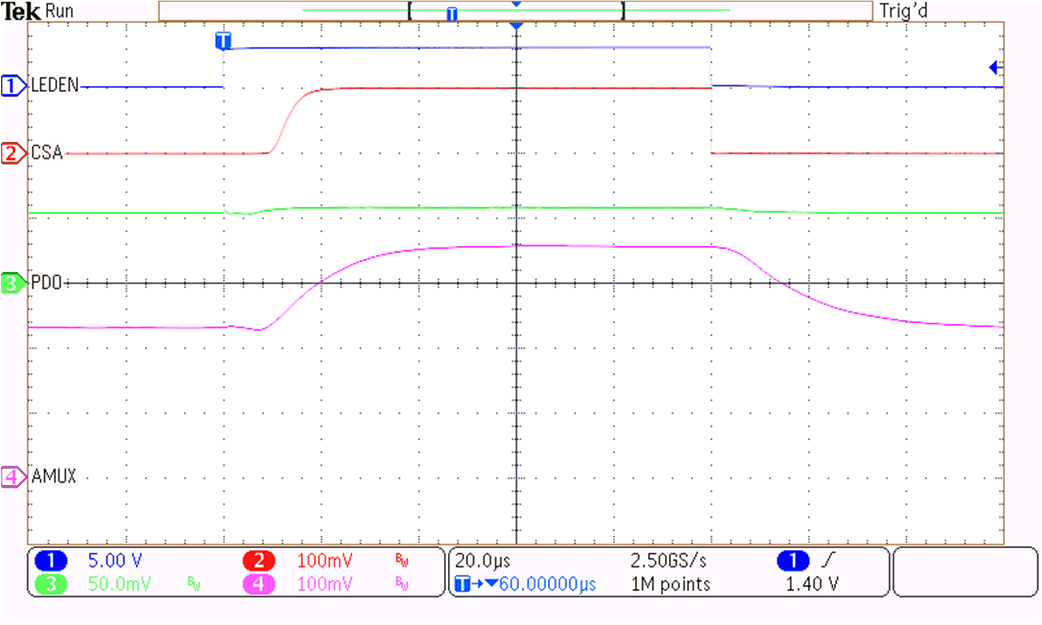

Figure 8-3 LED Driver and Photo Amplifier Waveforms with 128 Averages
