7 Parameter Measurement Information
Figure 7-1 EN Signal Low Time to Restart
Device (tLOW)
Figure 7-2 Turn-On
(tON), Turn-Off (tOFF) and VOUT Fall Time
(tF) Waveforms
Figure 7-3 OVP Assert
(tASSERT) and OVP Deassert (tDEASSERT) Waveforms

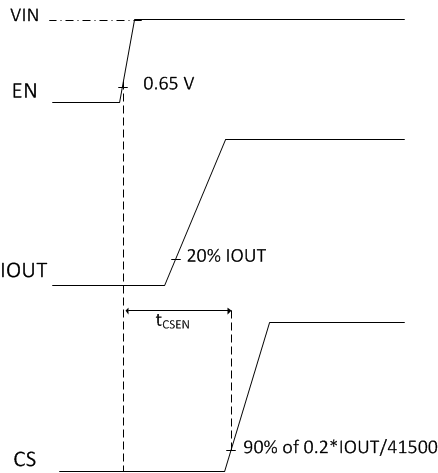

Figure 7-4 tCSEN
Waveforms

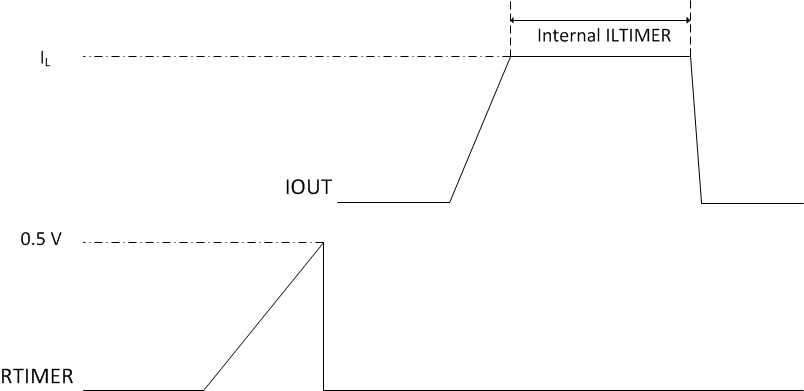

Figure 7-5 Internal ILTIMER
Waveforms

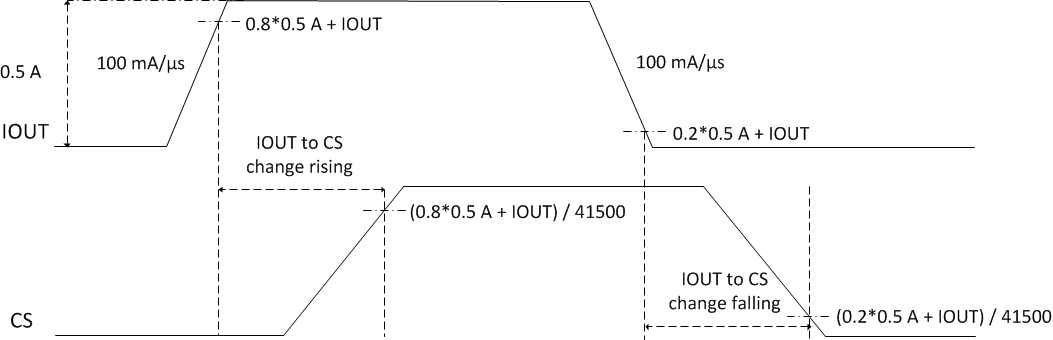

Figure 7-6 VOUT Current to CS Change
Delay Time
