9.2.5 Application Curves
The power-up behavior of this design example is shown in Figure 9-4 and the current limit behavior is shown in Figure 9-5.

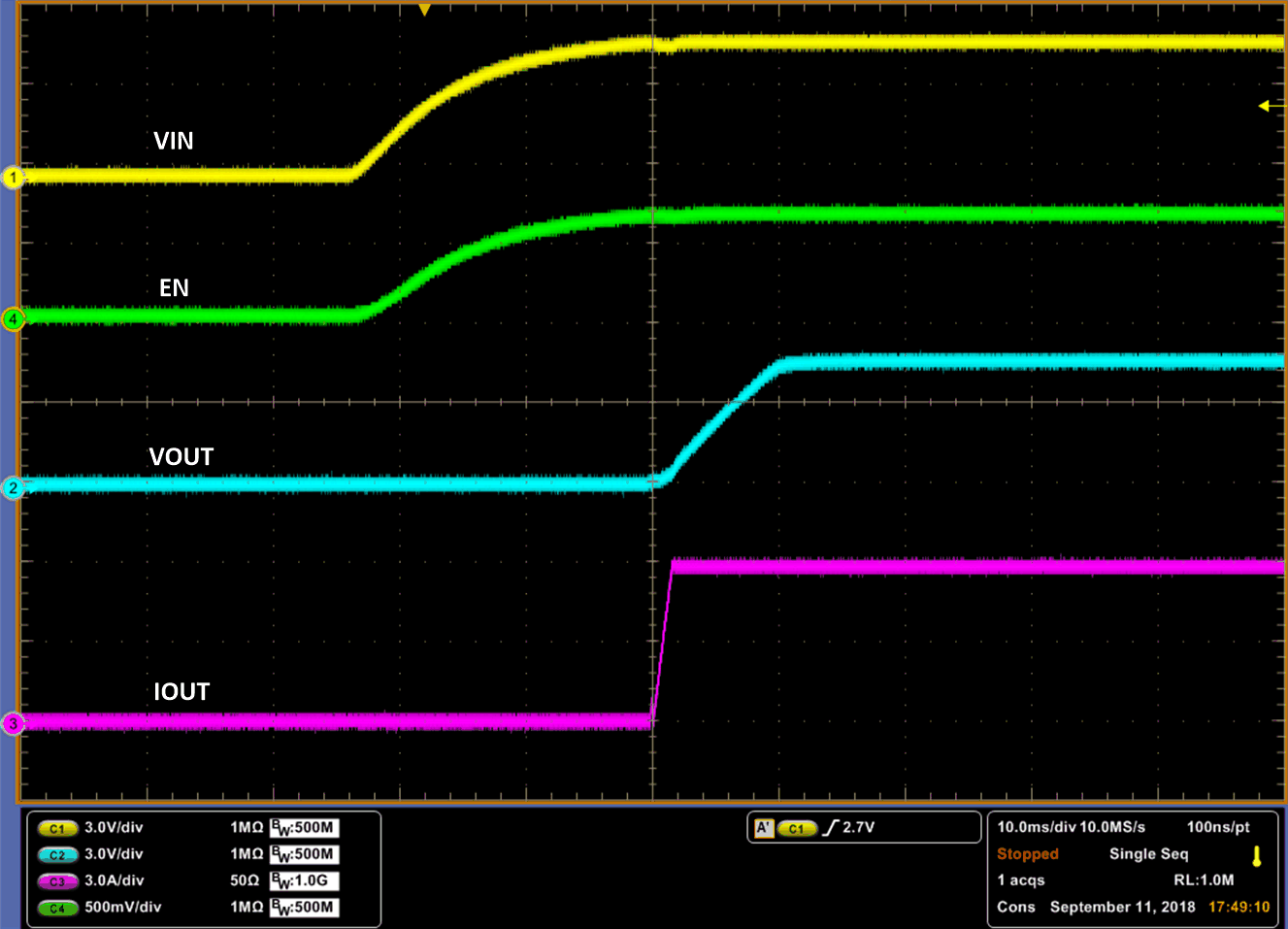

Figure 9-4 Power-up Behavior of the TPS7H2201-SP

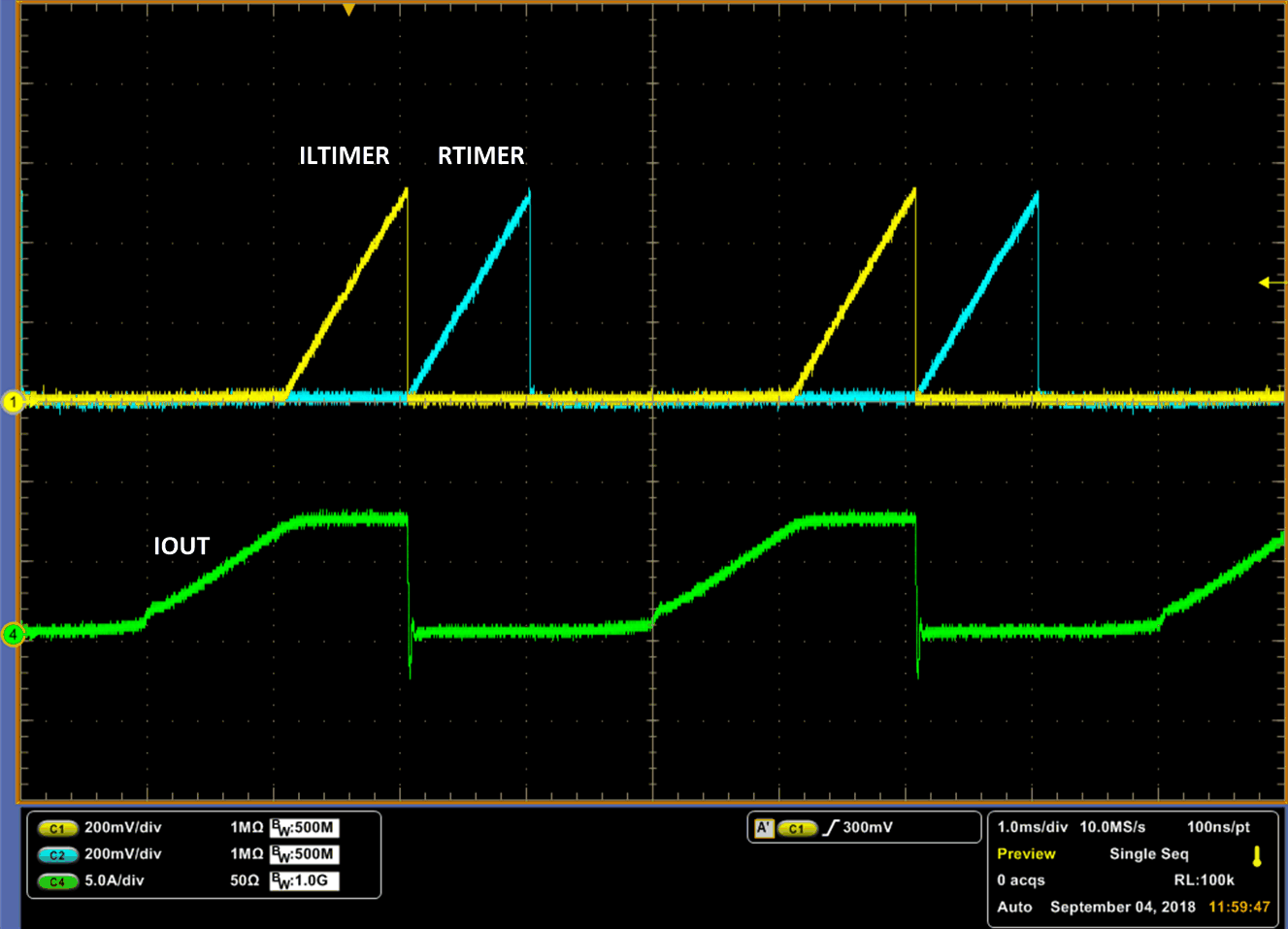

Figure 9-5 ILTIMER and RTIMER Waveforms When IL is Set to 7.5 A
