specified at TJ = –40°C to +150°C,
VIN = 13.5 V, IOUT = 100 μA, COUT = 2.2 μF, 1
mΩ < COUT ESR < 2 Ω, and
CIN = 1 μF (unless otherwise noted)

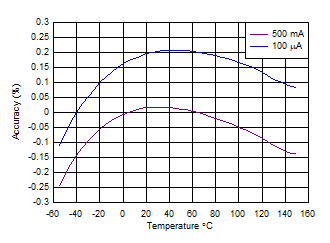

Figure 6-1 Accuracy vs
Temperature

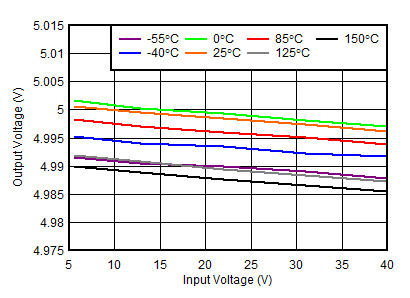

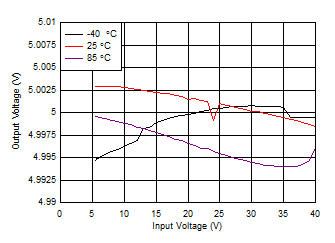

Figure 6-3 Line
Regulation vs VIN

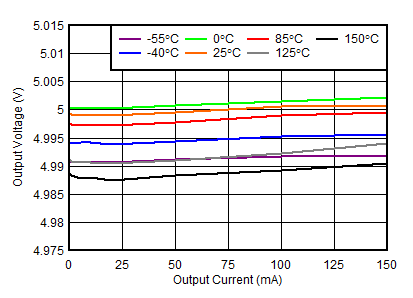

Figure 6-5 Load Regulation vs
IOUT
Figure 6-7 Line Regulation at 100
mA
| COUT = 10 μF (X7R 50 V), VOUT
= 5 V |

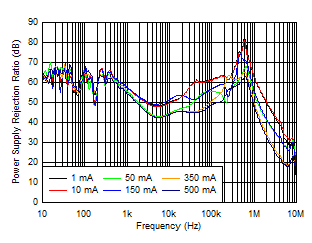

Figure 6-9 PSRR vs Frequency and
IOUT
| COUT = 10 μF (X7R 50 V), VOUT
= 3.3 V |

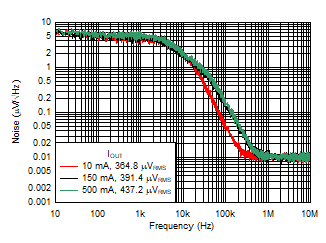

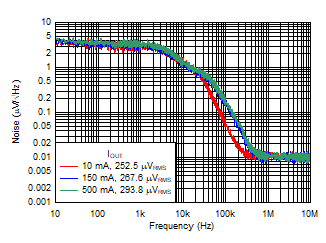

Figure 6-11 Noise vs Frequency
VOUT = 5 V, IOUT = 1 mA,
VIN = 13.5 V to 45 V,
slew rate = 2.7 V/μs |

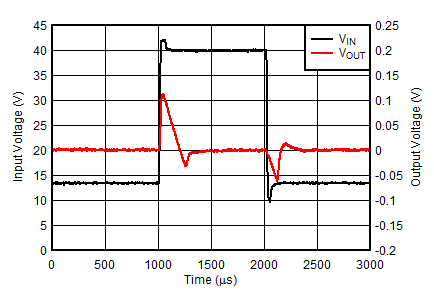

Figure 6-13 Line Transients
VOUT = 5 V, IOUT = 0 mA to
100 mA, slew rate = 1 A/μs,
COUT = 10 μF |

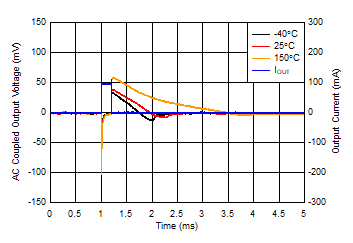

Figure 6-15 Load Transient, No Load to
100 mA
VOUT = 5 V, IOUT = 45 mA to
105 mA, slew rate = 0.1 A/μs,
COUT = 10 μF |

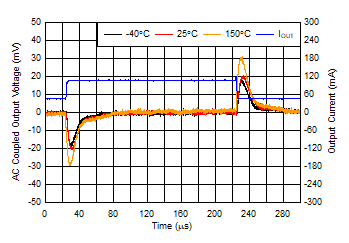

Figure 6-17 Load Transient, 45 mA to
105 mA
VOUT = 5 V, IOUT = 0 mA to
150 mA, slew rate = 1 A/μs,
COUT = 10 μF |

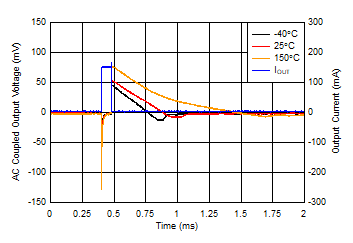

Figure 6-19 Load
Transient, No Load to 150-mA
VOUT = 5 V, IOUT = 150 mA to
350 mA, slew rate = 0.1 A/μs,
COUT = 10 μF |

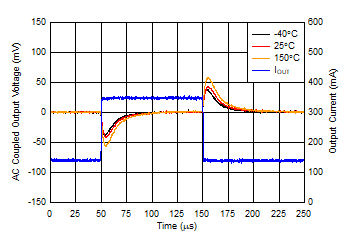

Figure 6-21 Load
Transient, 150-mA to 350-mA
VOUT = 5 V, IOUT = 0 mA to
500 mA, slew rate = 1 A/μs,
COUT = 10 μF |
| |
Figure 6-23 Load
Transient, No Load to 500-mA Rising Edge

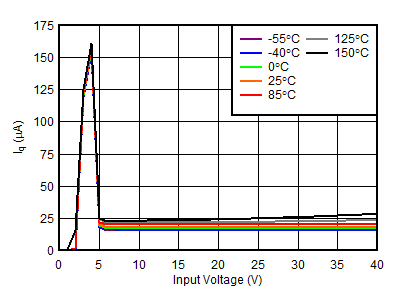

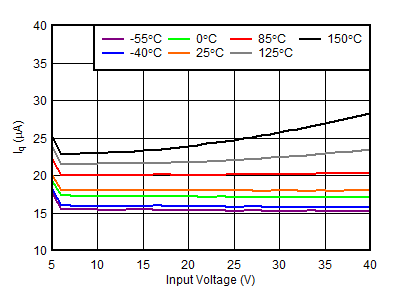

Figure 6-25 Quiescent Current
(IQ) vs VIN

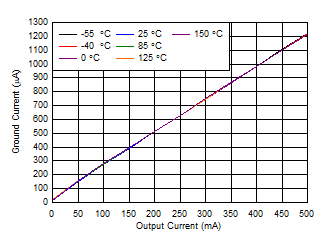

Figure 6-27 Ground Current
(IGND) vs IOUT

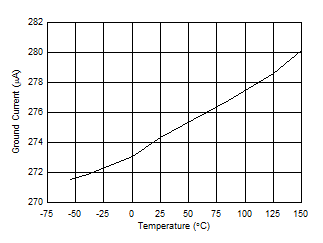

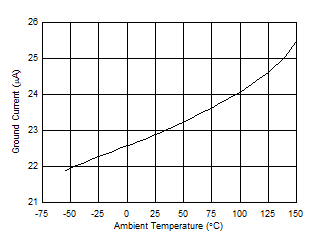

Figure 6-29 Ground Current at 500
μA
| VIN = 13.5 V, VOUT = 5 V,
IOUT = 150 mA, COUT = 10
μF |
| |

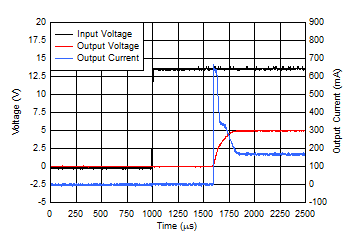

Figure 6-31 Startup Plot Inrush
Current

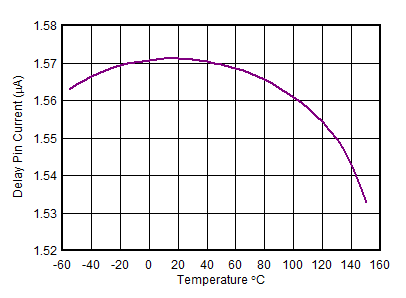

Figure 6-33 Delay
Pin Current vs Temperature

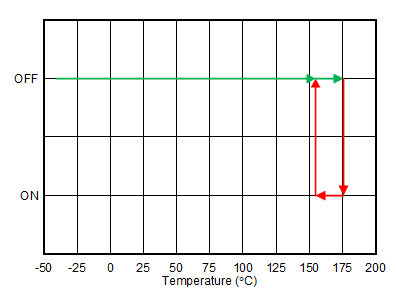

Figure 6-35 Thermal Shutdown
| VOUT = 5 V, IOUT = 150
mA |

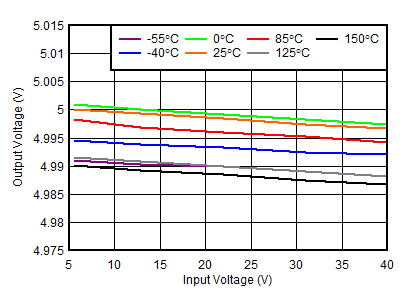

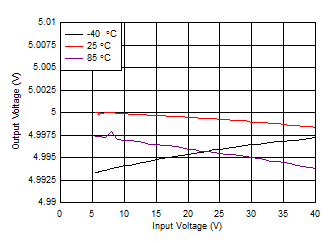

Figure 6-2 Line Regulation vs
VIN
Figure 6-4 Line
Regulation vs VIN
Figure 6-6 Line Regulation at 50
mA

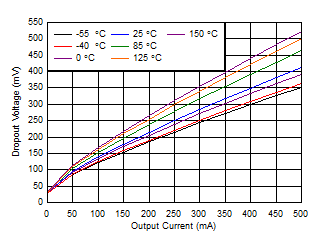

Figure 6-8 Dropout Voltage
(VDO) vs IOUT
| COUT = 10 μF (X7R 50 V), VOUT
= 5 V |
Figure 6-10 Noise vs Frequency
| COUT = 10 μF (X7R 50 V), IOUT
= 500 mA, VOUT = 5 V |
Figure 6-12 PSRR vs Frequency and
VIN
VOUT = 5 V, IOUT = 100 mA,
VIN = 5.5 V to 6.5 V,
rise time = 1 μs |

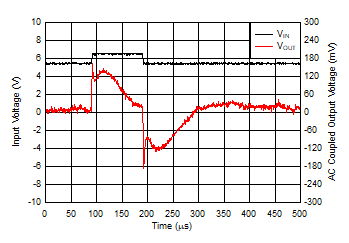

Figure 6-14 Line Transients
VOUT = 5 V, IOUT = 0 mA to
100 mA, slew rate = 1 A/μs,
COUT = 10 μF |

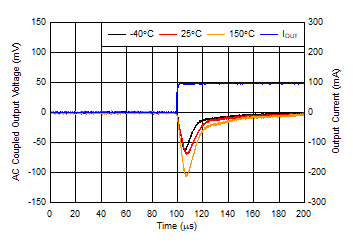

Figure 6-16 Load
Transient, No Load to 100-mA Rising Edge
VOUT = 5 V, IOUT = 45 mA to
105 mA, slew rate = 0.1 A/μs,
COUT = 10 μF |

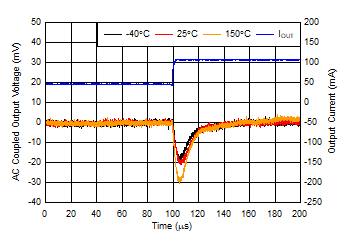

Figure 6-18 Load
Transient, 45-mA to 105-mA Rising Edge
VOUT = 5 V, IOUT = 0 mA to
150 mA, slew rate = 1 A/μs,
COUT = 10 μF |

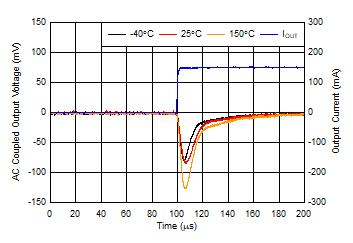

Figure 6-20 Load
Transient, No Load to 150-mA Rising Edge
VOUT = 5 V, IOUT = 0 mA to
500 mA, slew rate = 1 A/μs,
COUT = 10 μF |

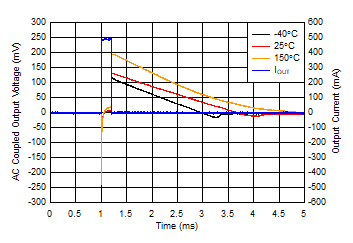

Figure 6-22 Load
Transient, No Load to 500 mA
| VIN = VOUT + 1 V,
VOUT = 90% × VOUT(NOM) |
Figure 6-24 Output Current Limit vs
Temperature
Figure 6-26 Quiescent Current
(IQ) vs VIN
Figure 6-28 Ground Current at 100 mA

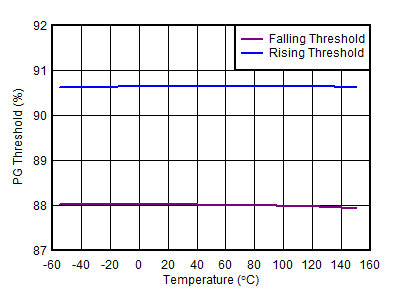

Figure 6-30 PG Threshold vs
Temperature

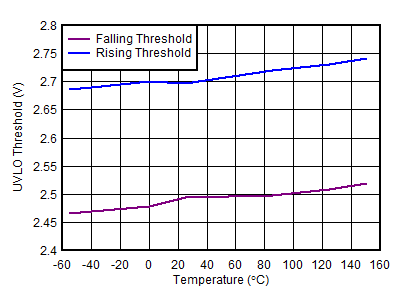

Figure 6-32 Undervoltage Lockout
(UVLO) Threshold vs Temperature

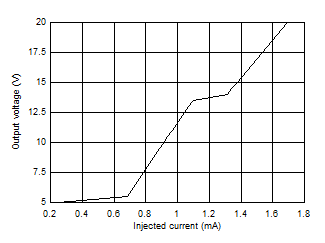

Figure 6-34 Output Voltage vs Injected
Current

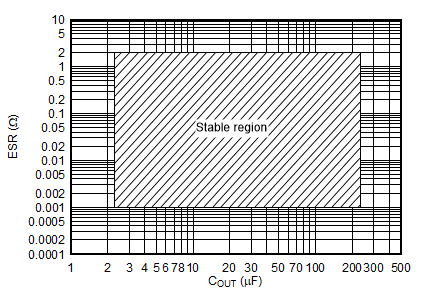

Figure 6-36 Stability, ESR vs
COUT
