8.2 Typical Application

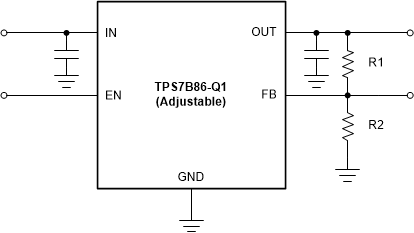

Figure 8-7 shows a typical application circuit for the TPS7B86-Q1. TI recommends a low-ESR ceramic capacitor with a dielectric of type X5R or X7R.
Figure 8-7 Typical
Application Schematic for the TPS7B86-Q1
