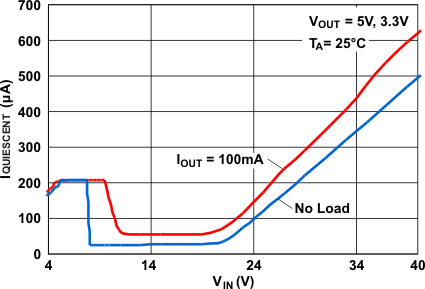

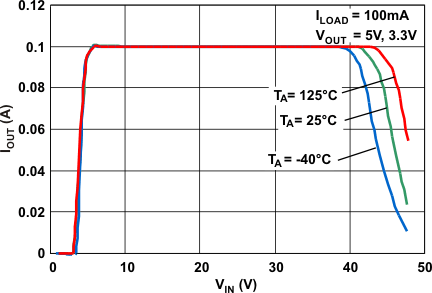

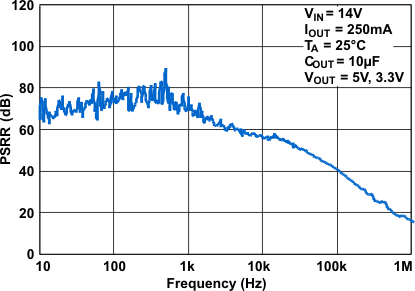

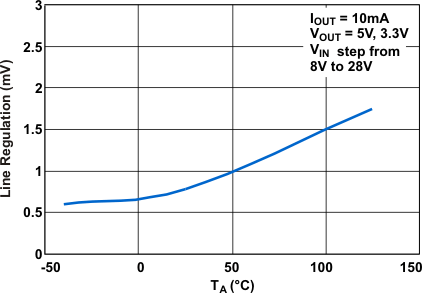

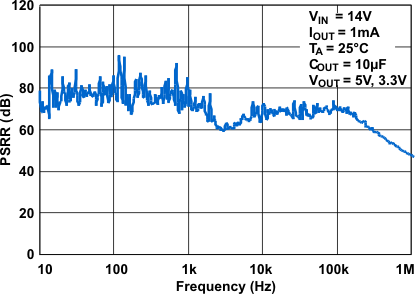

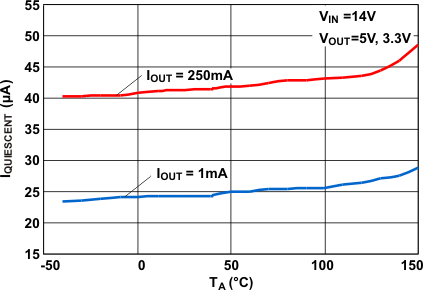

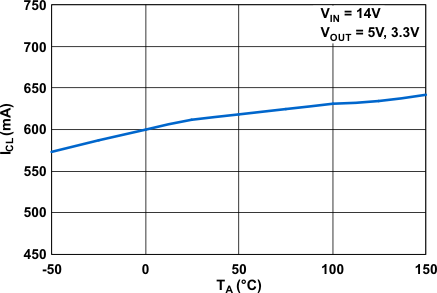

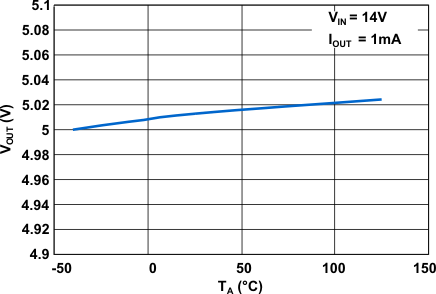

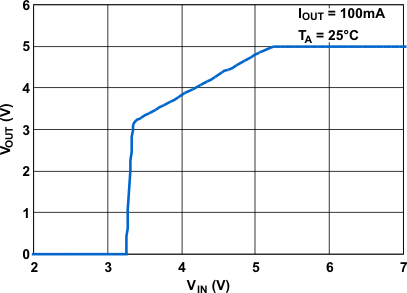

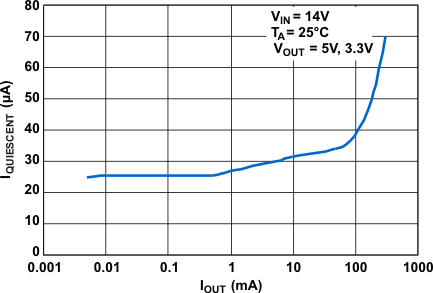

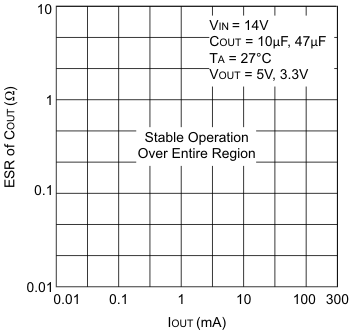

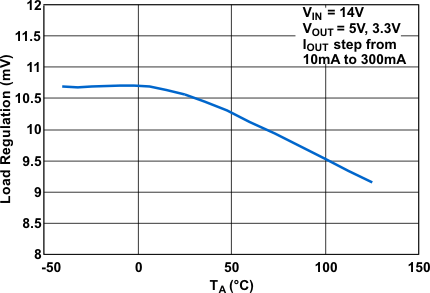

7.7 Typical Characteristics
for TPS7A60-Q1 and TPS7A61-Q1

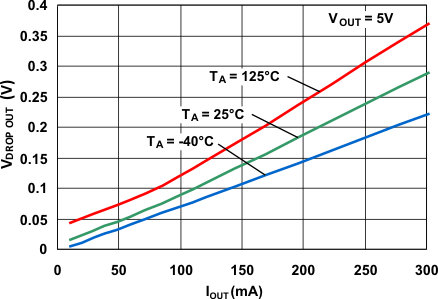

1. Dropout voltage is measured when the output voltage drops by 100 mV from the regulated output voltage level. (For example, dropout voltage for the TPS7A6050-Q1 is measured when the output voltage drops down to 4.9 V from 5 V.)
