8.3.12.5 I2C Pin Address Setting (ADCIN2)
To enable the setting of multiple I2C addresses using a single TPS65987D pin, a resistor divider is placed externally on the ADCIN2 pin. The internal ADC then decodes the address from this divider value. Figure 8-29 shows the decoding.

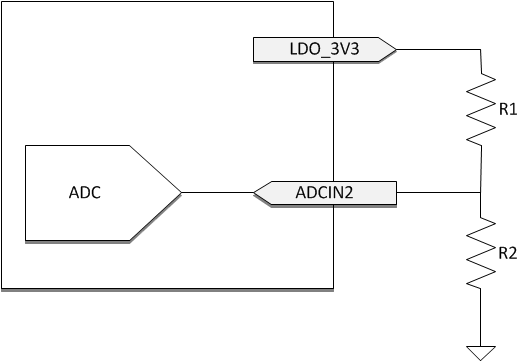

Figure 8-29 I2C Address DividerTable 8-4 lists the external divider needed to set bits [3:1] of the I2C Unique Address.
Table 8-4 I2C Address Selection
| DIV = R2/(R1+R2)(1) | I2C UNIQUE ADDRESS [3:1] | |
|---|---|---|
| DIV_min | DIV_max | I2C_ADDR_DECODE |
| 0.00 | 0.18 | 000b |
| 0.20 | 0.38 | 001b |
| 0.40 | 0.58 | 010b |
| 0.60 | 1.00 | 011b |
(1) External resistor tolerance of
1% is required. Resistor values must be chosen to yield a DIV value centered
nominally between listed MIN and MAX values.
