8.3.9.3 SPI

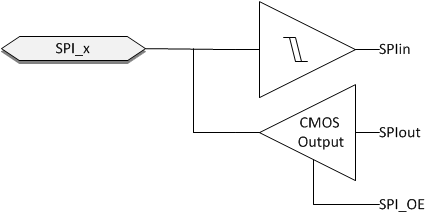

The TPS65987D has a single SPI controller interface for use with external memory devices. Figure 8-21 shows the I/O buffers for the SPI interface.
Figure 8-21 SPI buffer
