6.12 Typical Characteristics
Table 1. Table of Graphs
| FIGURE | |||
|---|---|---|---|
| η | Efficiency | vs Output current | Figure 5, Figure 6, Figure 7,
Figure 8, Figure 9, Figure 10 |

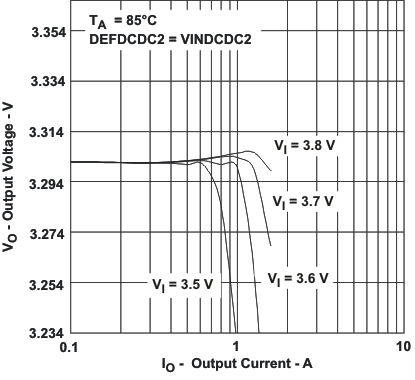

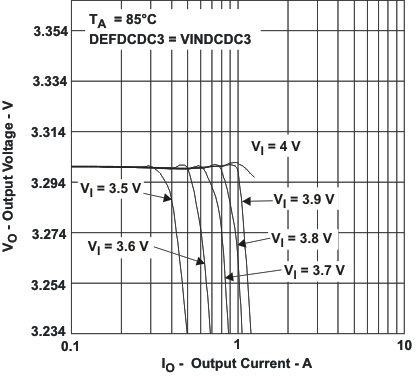

| Output voltage | vs Output current at 85°C | Figure 11, Figure 12 | |

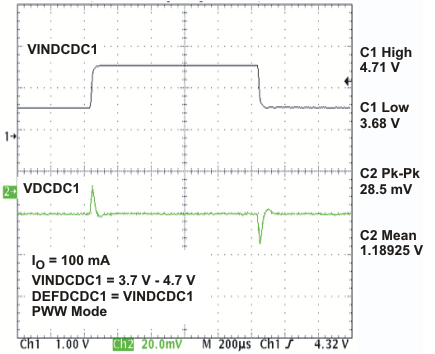

| Line transient response | Figure 13, Figure 14, Figure 15 | ||

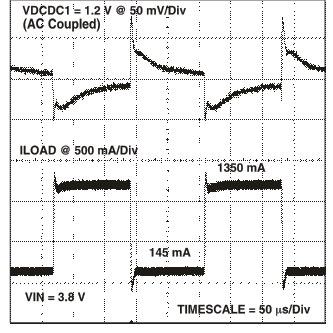

| Load transient response | Figure 16, Figure 17, Figure 18 | ||
| VDCDC2 PFM operation | Figure 19 | ||

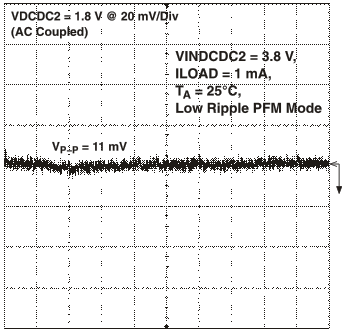

| VDCDC2 low ripple PFM operation | Figure 20 | ||
| VDCDC2 PWM operation | Figure 21 | ||
| Startup VDCDC1, VDCDC2 and VDCDC3 | Figure 22 | ||
| Startup LDO1 and LDO2 | Figure 23 | ||
| Line transient response | Figure 24, Figure 25, Figure 26 | ||
| Load transient response | Figure 27, Figure 28, Figure 29 | ||

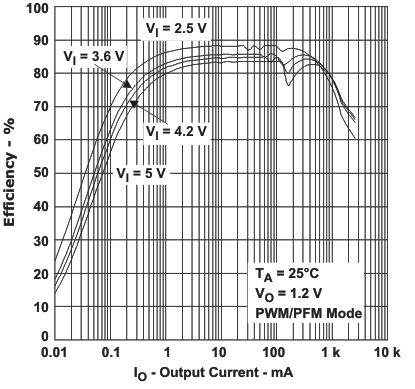

Figure 5. DCDC1: Efficiency vs Output Current

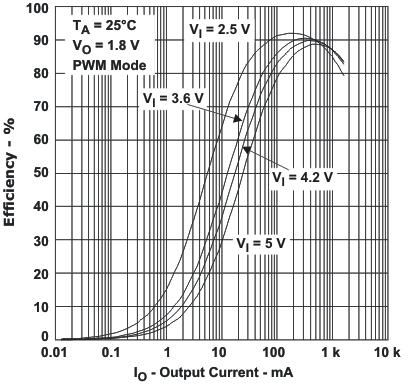

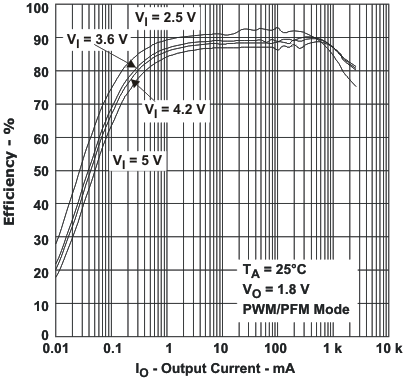

Figure 7. DCDC2: Efficiency vs Output Current

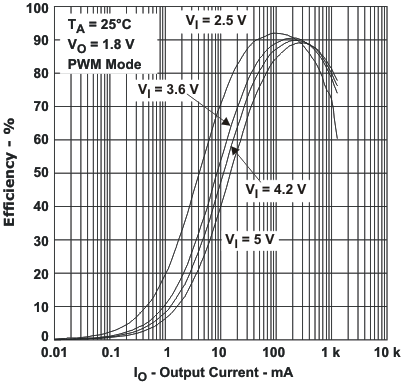

Figure 9. DCDC3: Efficiency vs Output Current
Figure 15. VDCDC3 Line Transient Response
Figure 19. VDCDC2 Output Voltage Ripple
Figure 21. VDCDC2 Output Voltage Ripple

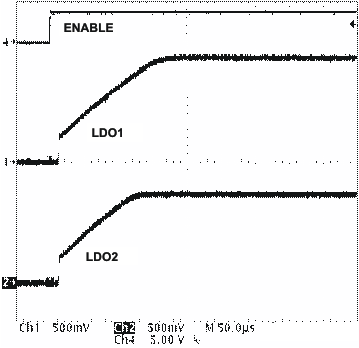

Figure 23. Start-Up LDO1 and LDO2

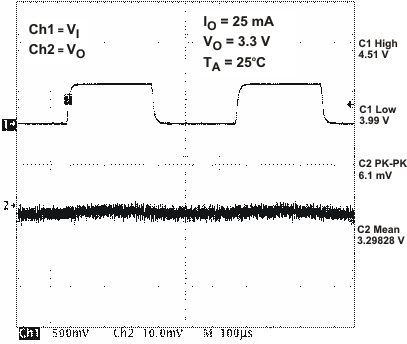

Figure 25. LDO2 Line Transient Response

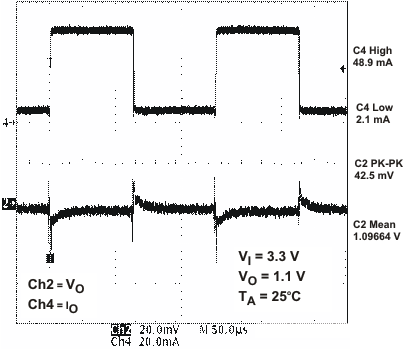

Figure 27. LDO1 Load Transient Response

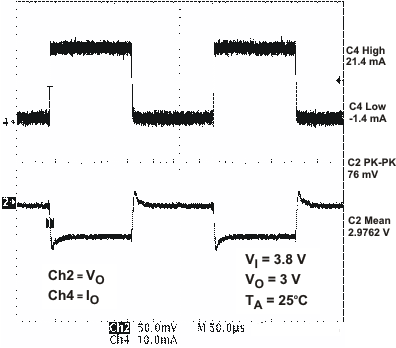

Figure 29. VRTC Load Transient Response
Figure 6. DCDC1: Efficiency vs Output Current

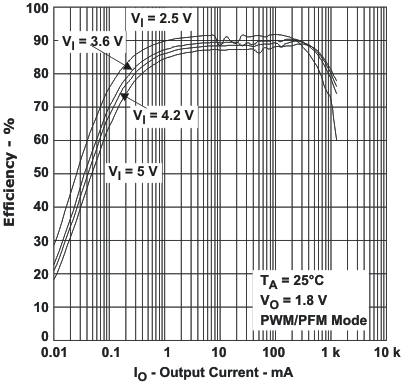

Figure 8. DCDC2: Efficiency vs Output Current
Figure 10. DCDC3: Efficiency vs Output Current
Figure 14. VDCDC2 Line Transient Response

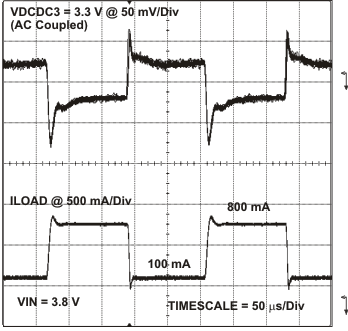

Figure 18. VDCDC3 Load Transient Response

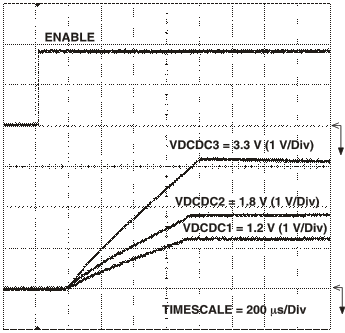

Figure 22. Start-Up VDCDC1, VDCDC2, and VDCDC3

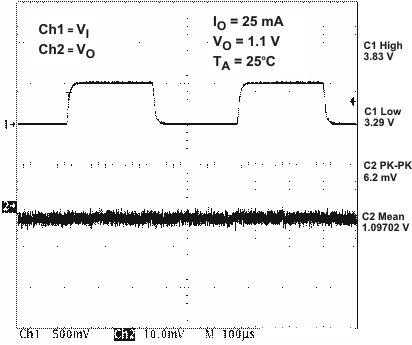

Figure 24. LDO1 Line Transient Response

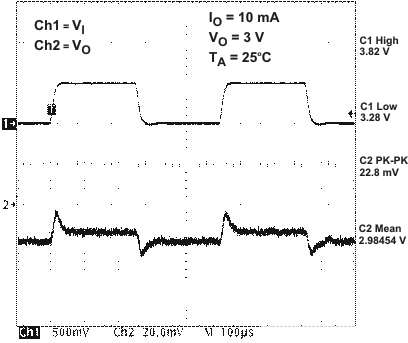

Figure 26. VRTC Line Transient Response

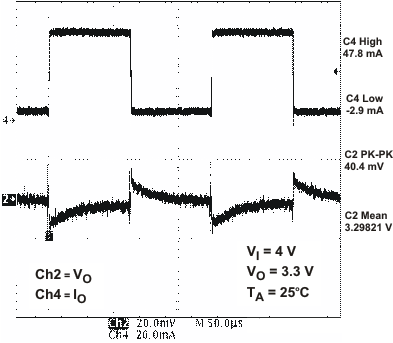

Figure 28. LDO2 Load Transient Response
