6.6 Typical Characteristics

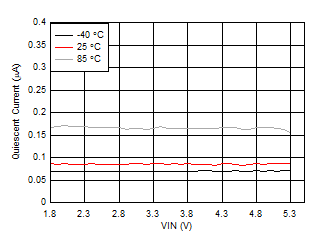

| VO = 5.1 V | EN = HIGH | IO = 0 mA, device not switching |

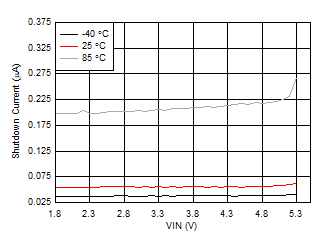

| VO = 5.1 V | EN = LOW |

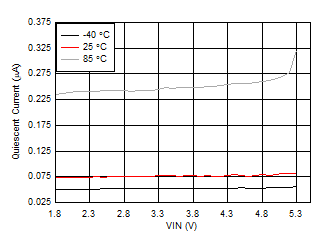

| VO = 5.1 V | EN = HIGH | IO = 0 mA, device not switching |
