6 Pin Configuration and Functions

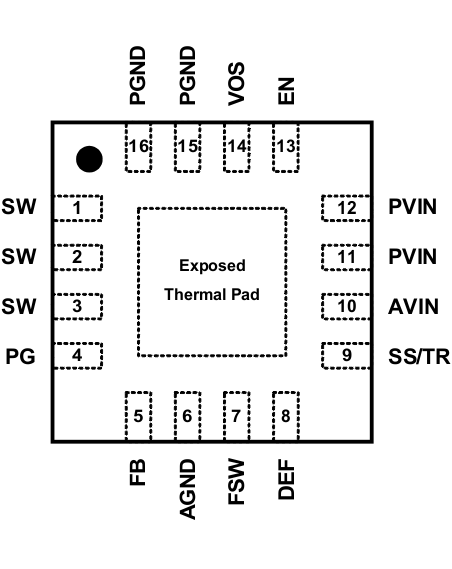

Figure 6-1 16-Pin
VQFNRGT Package(Top View)Table 6-1 Pin Functions
| PIN(1) | I/O | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1,2,3 | SW | O | Switch node, which is connected to the internal MOSFET switches. Connect inductor between SW and the output capacitor. |
| 4 | PG | O | Output power good (high = VOUT ready, low = VOUT below nominal regulation); open drain (requires pullup resistor) |
| 5 | FB | I | Voltage feedback of the adjustable version. Connect a resistive voltage divider to this pin. It is recommended to connect FB to AGND on fixed output voltage versions for improved thermal performance. |
| 6 | AGND | Analog ground. Must be connected directly to the exposed thermal pad and common ground plane. | |
| 7 | FSW | I | Switching frequency select (low ≈ 2.5 MHz, high ≈ 1.25 MHz(2) for typical operation)(3) |
| 8 | DEF | I | Output voltage scaling (low = nominal, high = nominal + 5%)(3) |
| 9 | SS/TR | I | Soft-start/tracking [in. An external capacitor connected to this pin sets the internal voltage reference rise time. It can be used for tracking and sequencing. |
| 10 | AVIN | I | Supply voltage for control circuitry. Connect to the same source as PVIN. |
| 11,12 | PVIN | I | Supply voltage for power stage. Connect to the same source as AVIN. |
| 13 | EN | I | Enable input (high = enabled, low = disabled)(3) |
| 14 | VOS | I | Output voltage sense pin and connection for the control loop circuitry |
| 15,16 | PGND | Power ground. Must be connected directly to the exposed thermal pad and common ground plane. | |
| Exposed Thermal Pad | Must be connected to AGND (pin 6), PGND (pin 15, 16), and common ground plane. See Figure 11-1. Must be soldered to achieve appropriate power dissipation and mechanical reliability. | ||
(2) Connect FSW to VOUT or PG in this case.
(3) An internal pulldown resistor keeps the logic level low, if
pin is floating.
