8.2 Functional Block Diagrams
* This pin is connected to a
pull down resistor internally (see Section 8.3)

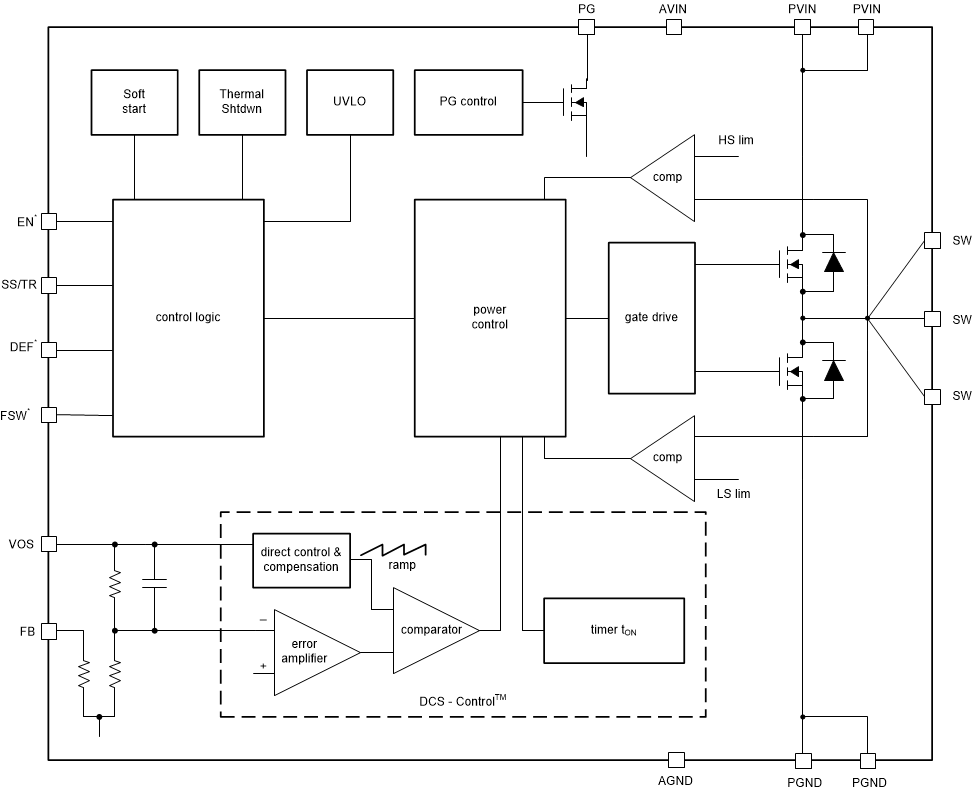

Figure 8-1 TPS62140 and TPS62140A (Adjustable Output Voltage)
* This pin is connected to a pull
down resistor internally (see Section 8.3)

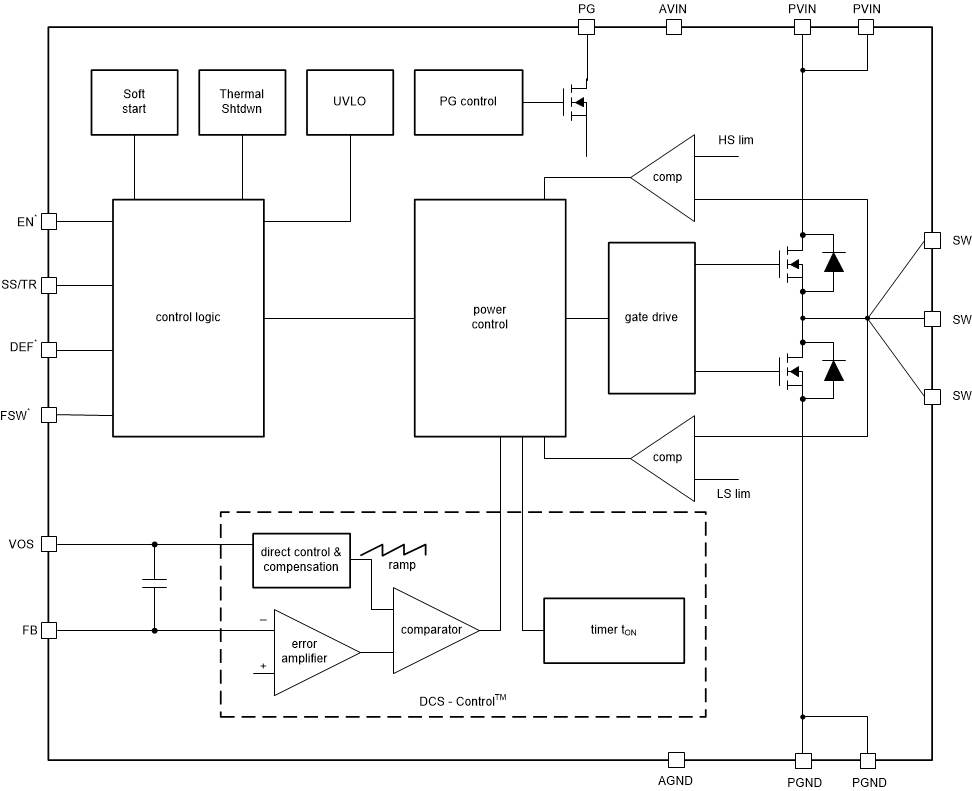

Figure 8-2 TPS62141/2/3 (Fixed Output Voltage)
