8.2.3 Application Curves

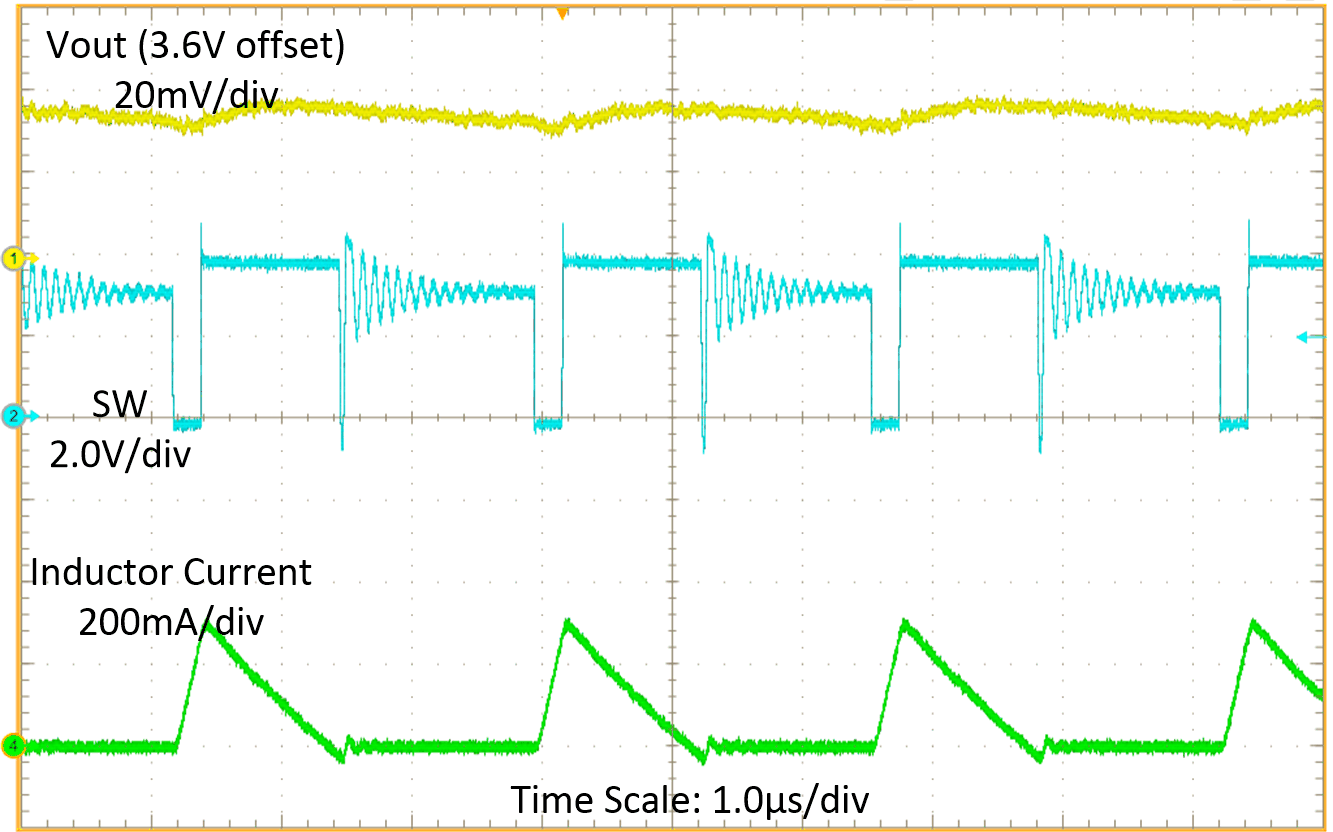

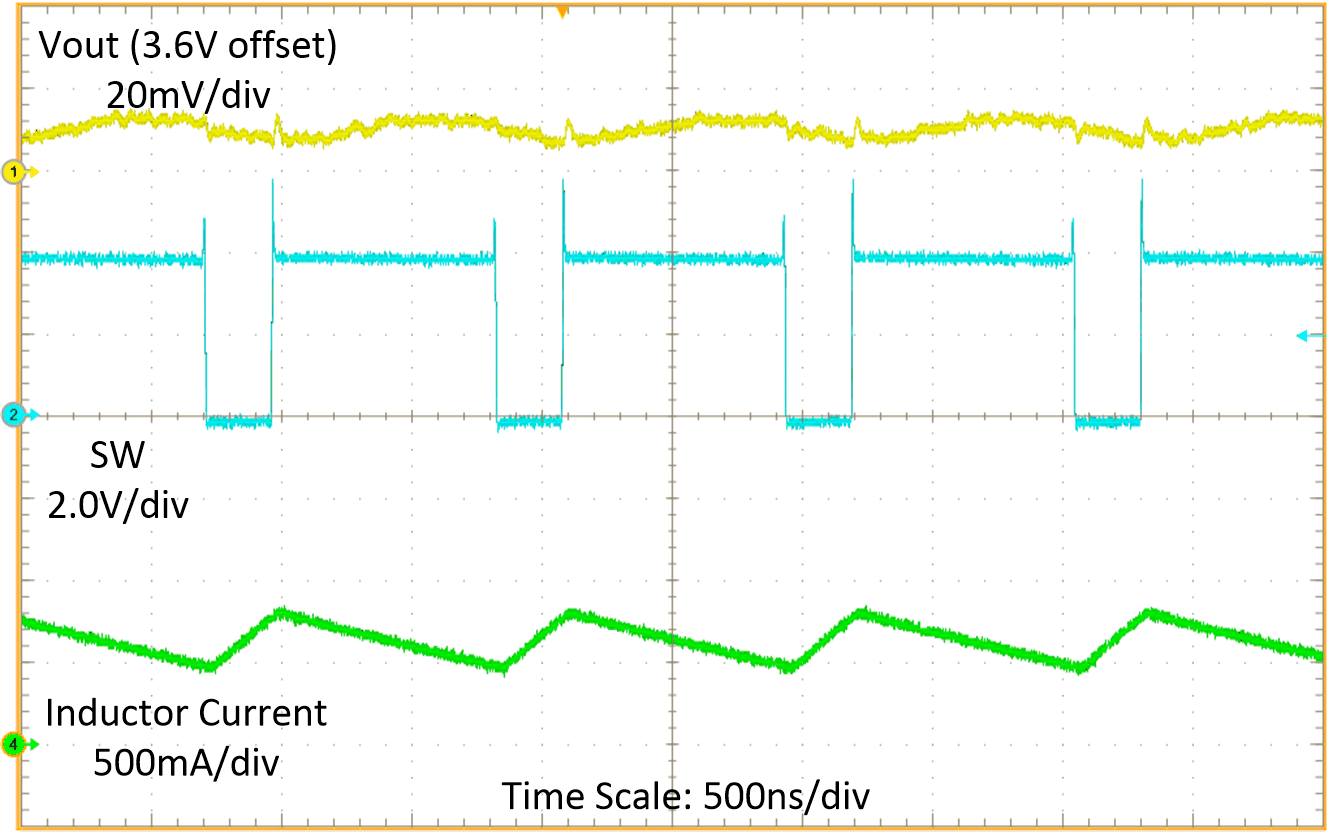

| VIN = 3 V, VOUT = 3.6 V | IOUT = 500 mA | |
| VIN = 3 V, VOUT = 3.6 V | IOUT = 1 mA | |

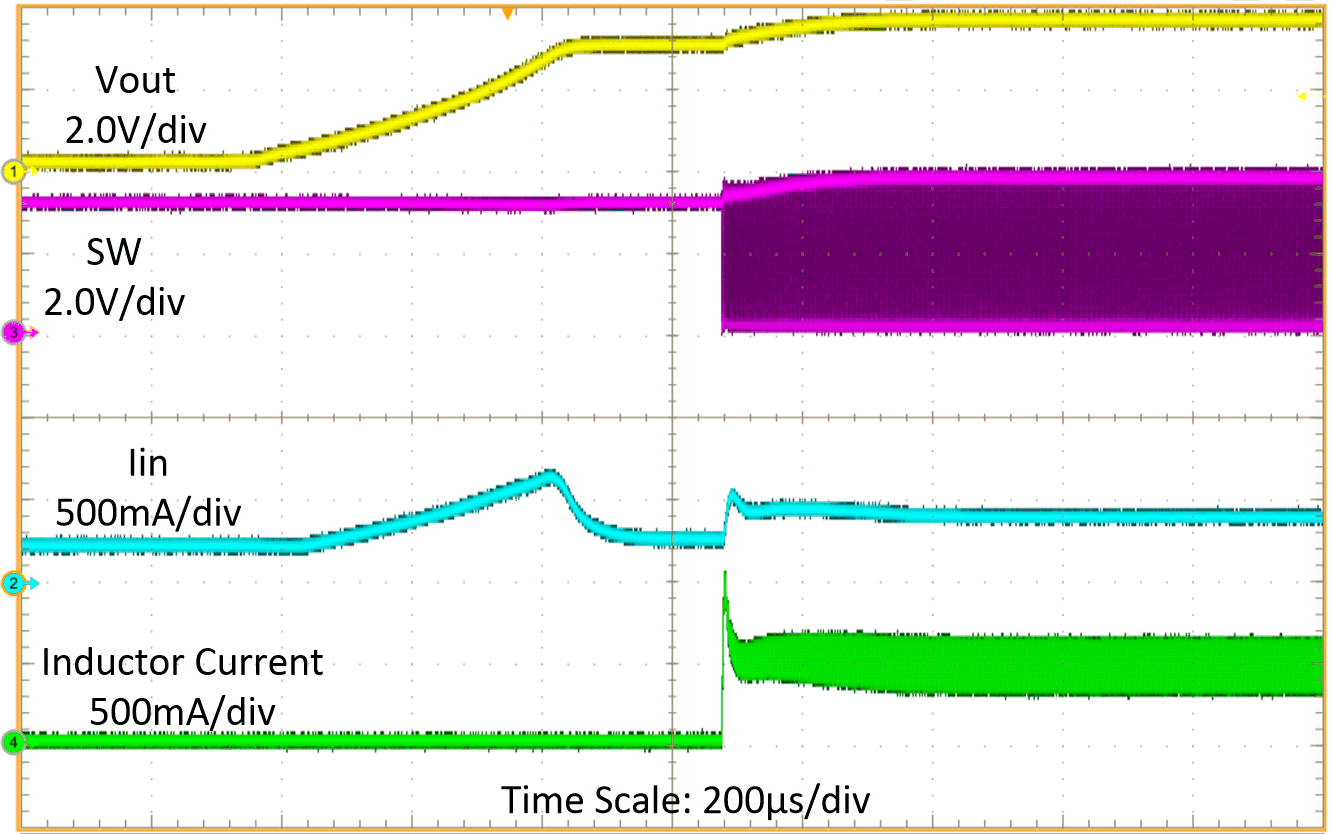

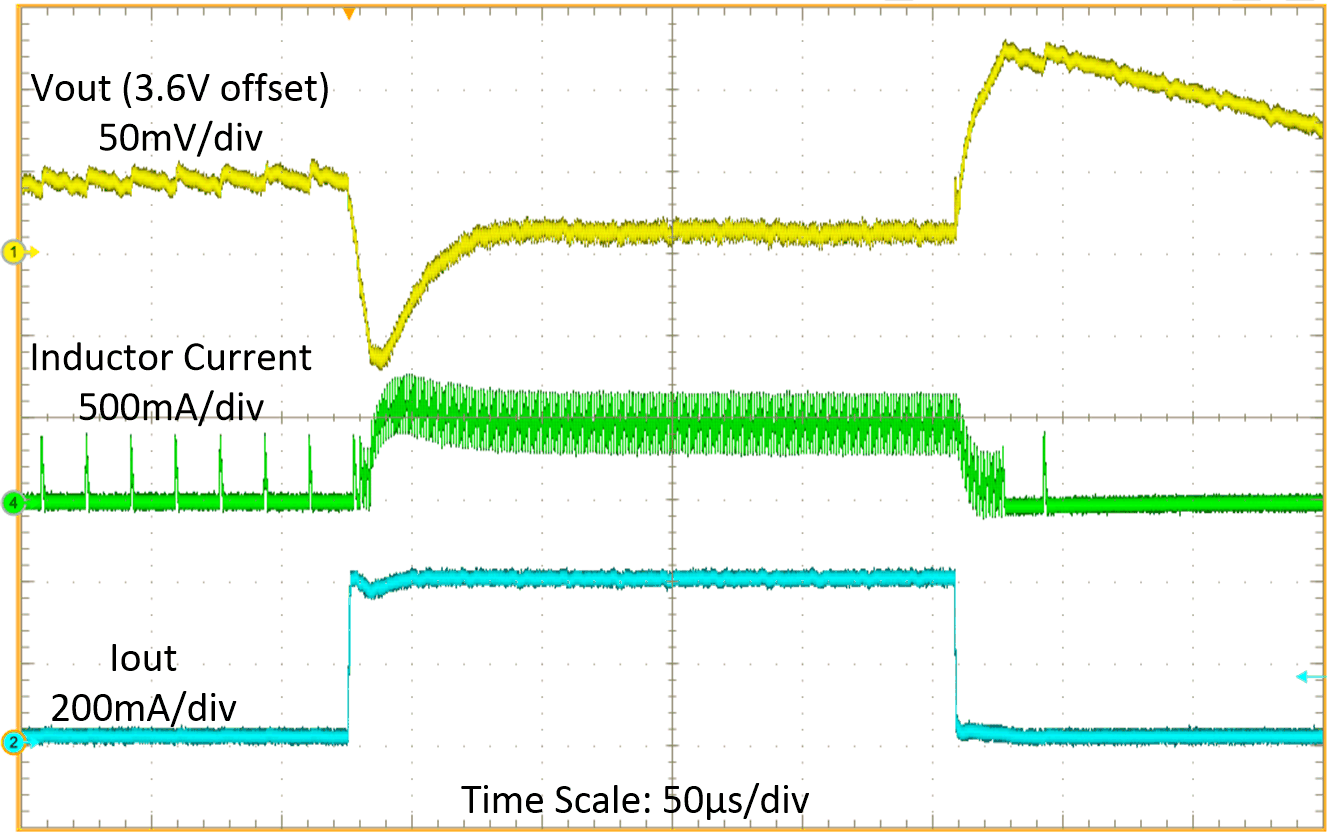

| VIN = 3 V | VOUT = 3.6 V | 10-Ω resistance load | |
| VIN = 3 V | VOUT = 3.6 V |
| IOUT = 10 mA to 400 mA with 20-μs slew rate | |

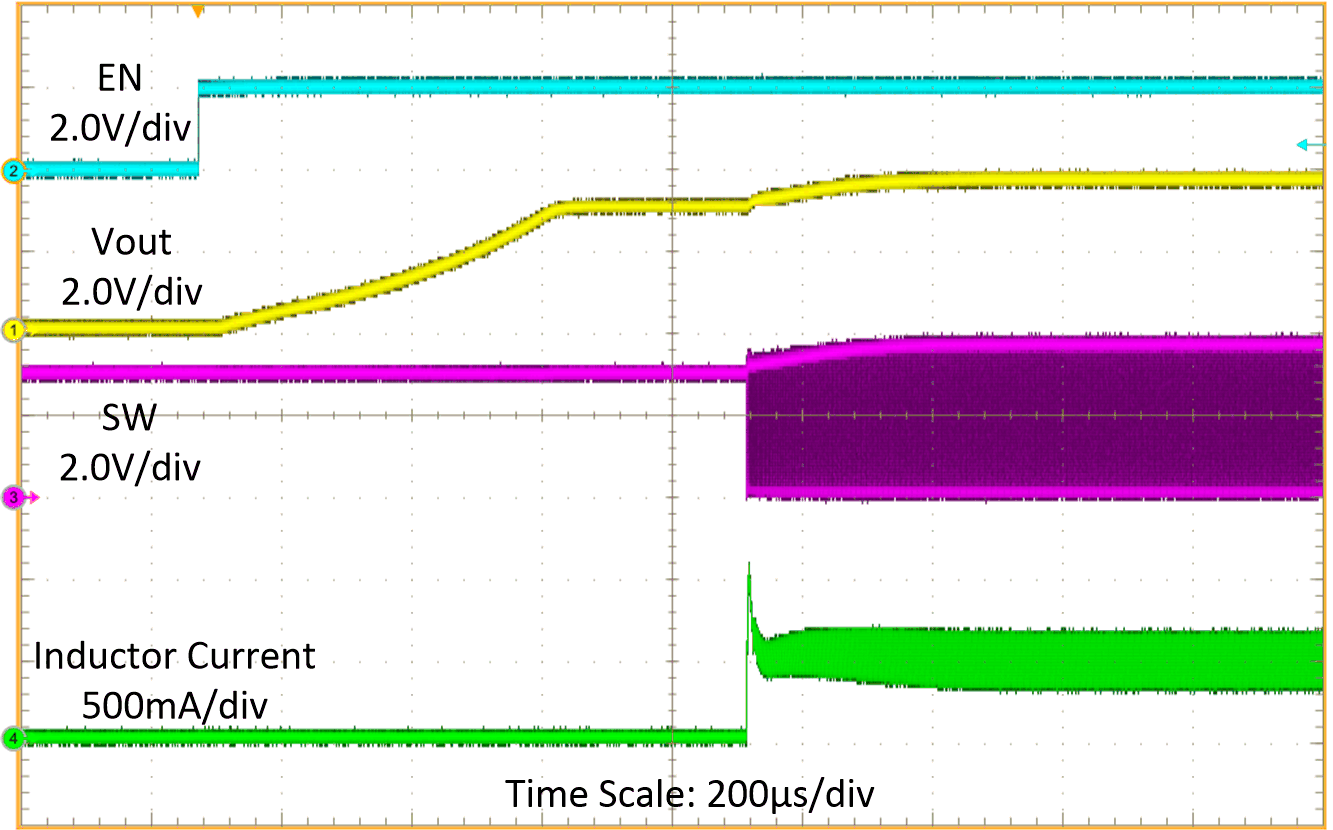

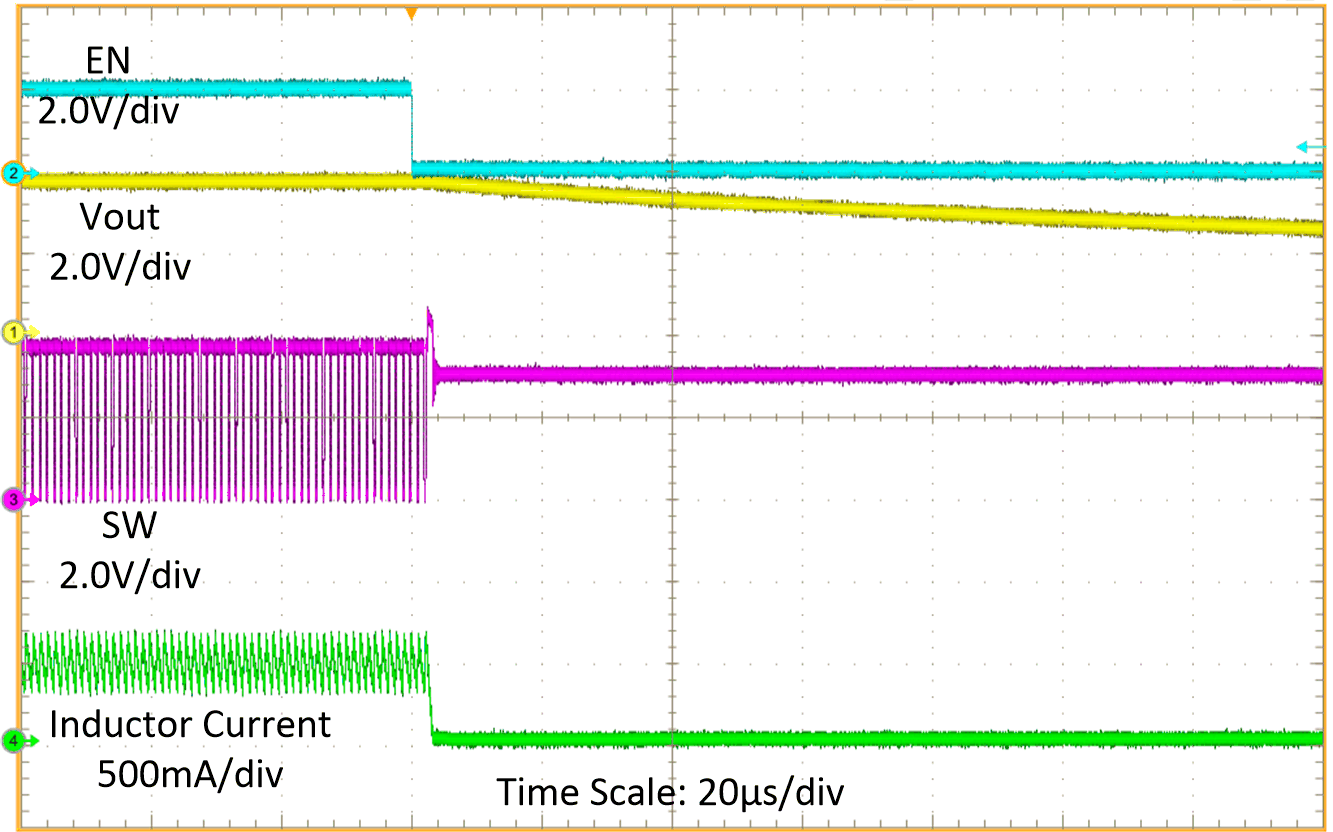

| VIN = 3 V | VOUT = 3.6 V |
| IOUT = 0-A to 500-mA Sweep | |
| VIN = 3 V | VOUT = 3.6 V |
| 10-Ω resistance load | |

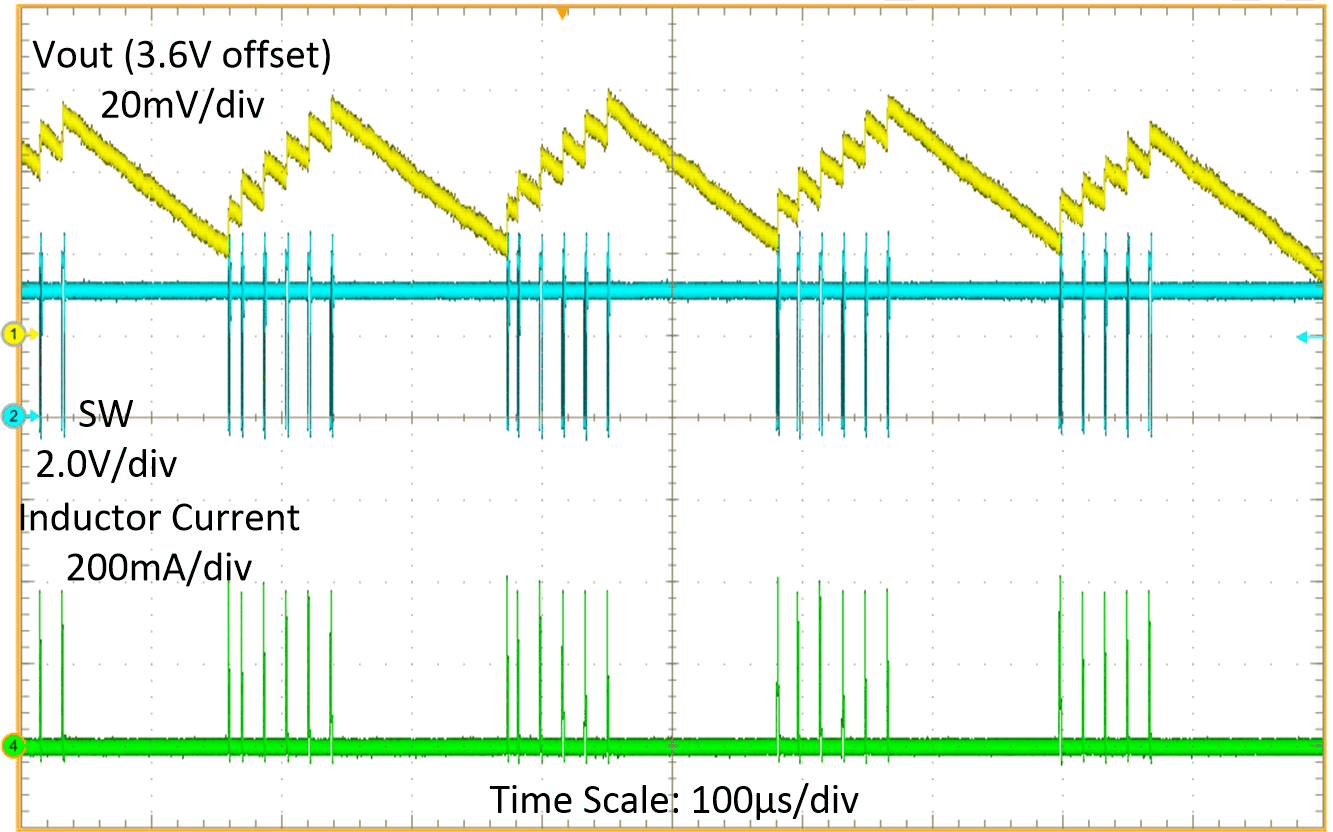

| VIN = 3 V, VOUT = 3.6 V | IOUT = 50 mA | |

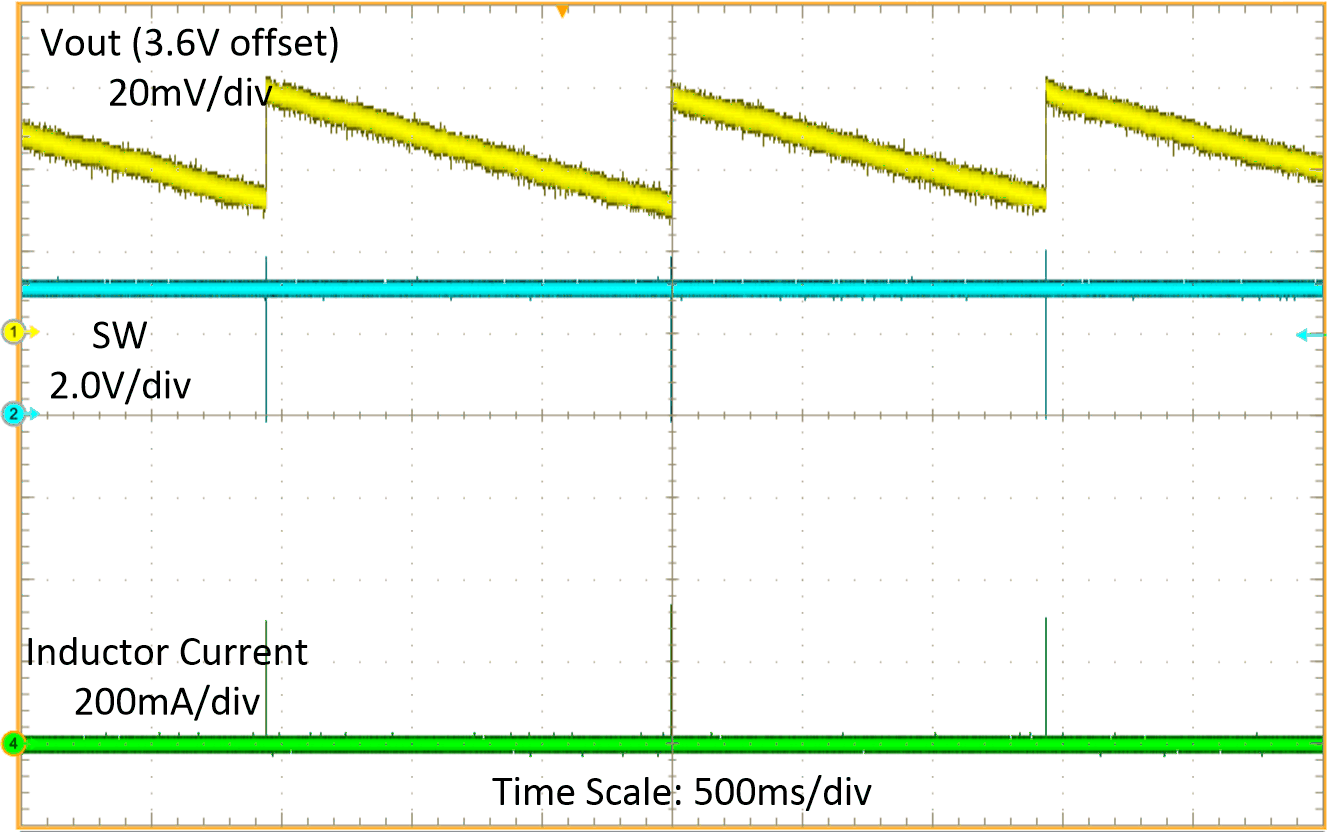

| VIN = 3 V | VOUT = 3.6 V | Open load |

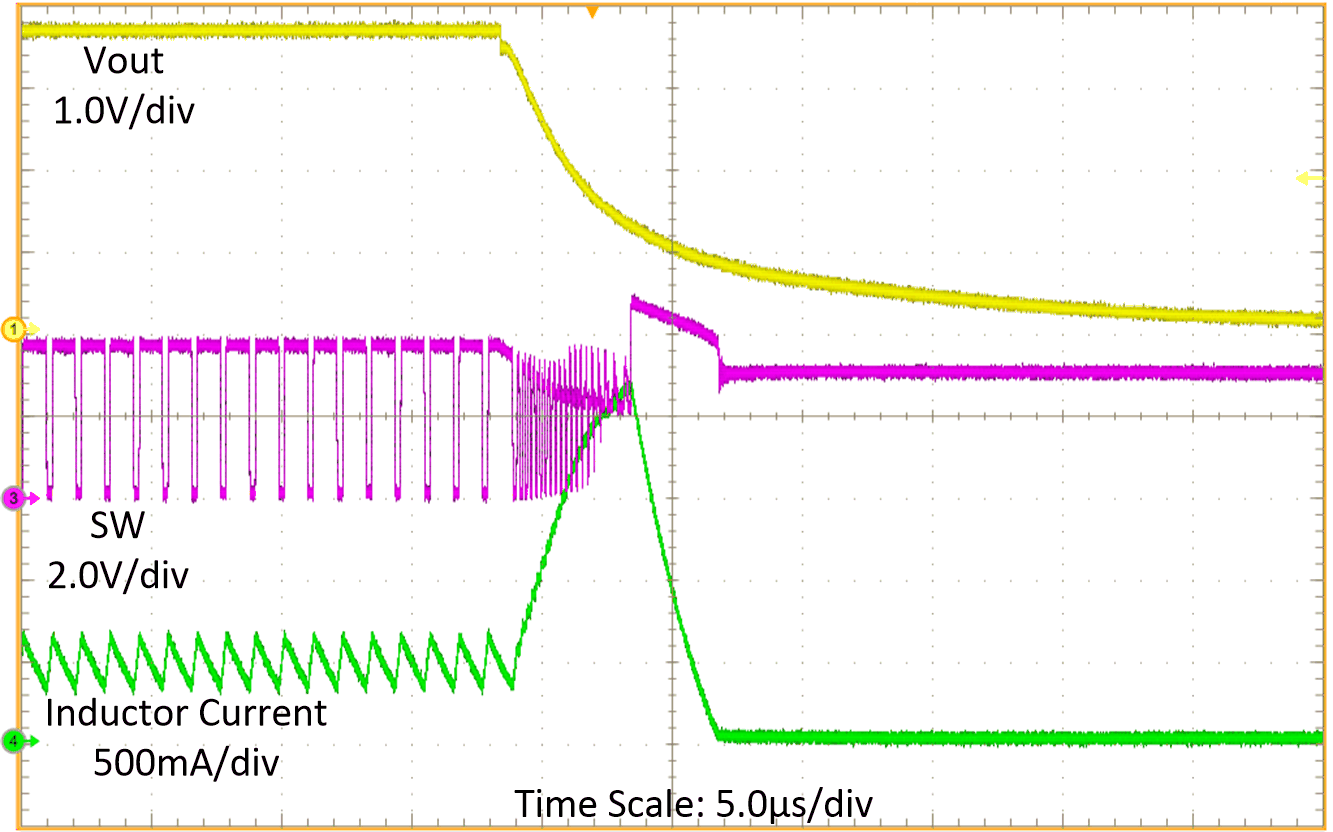

| VIN = 3 V | VOUT = 3.6 V | 10-Ω resistance load | |
| VOUT = 3.6 V | IOUT = 500 mA |

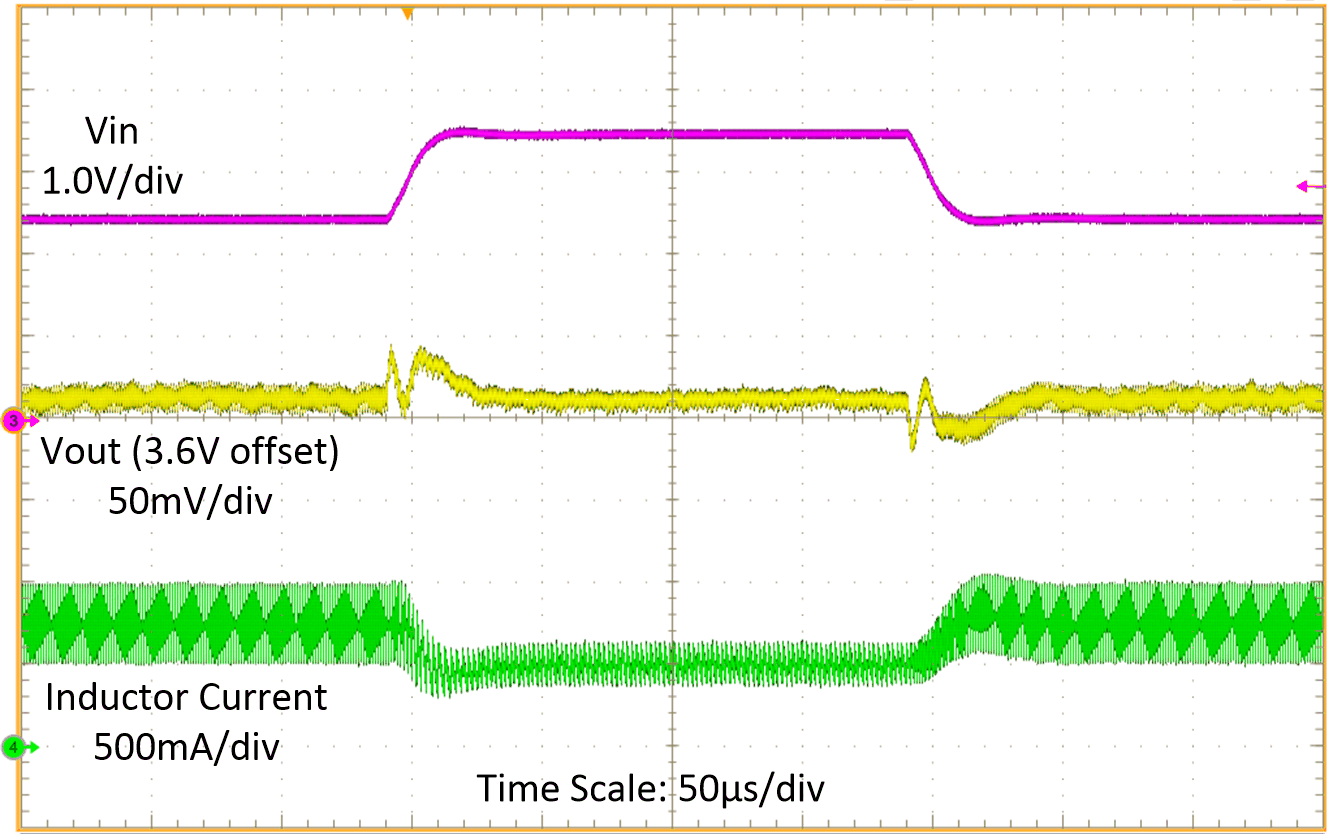

| VIN = 2.5 V to 3.5 V with 20-μs slew rate | |
| VOUT = 3.6 V | 10-Ω resistance load |

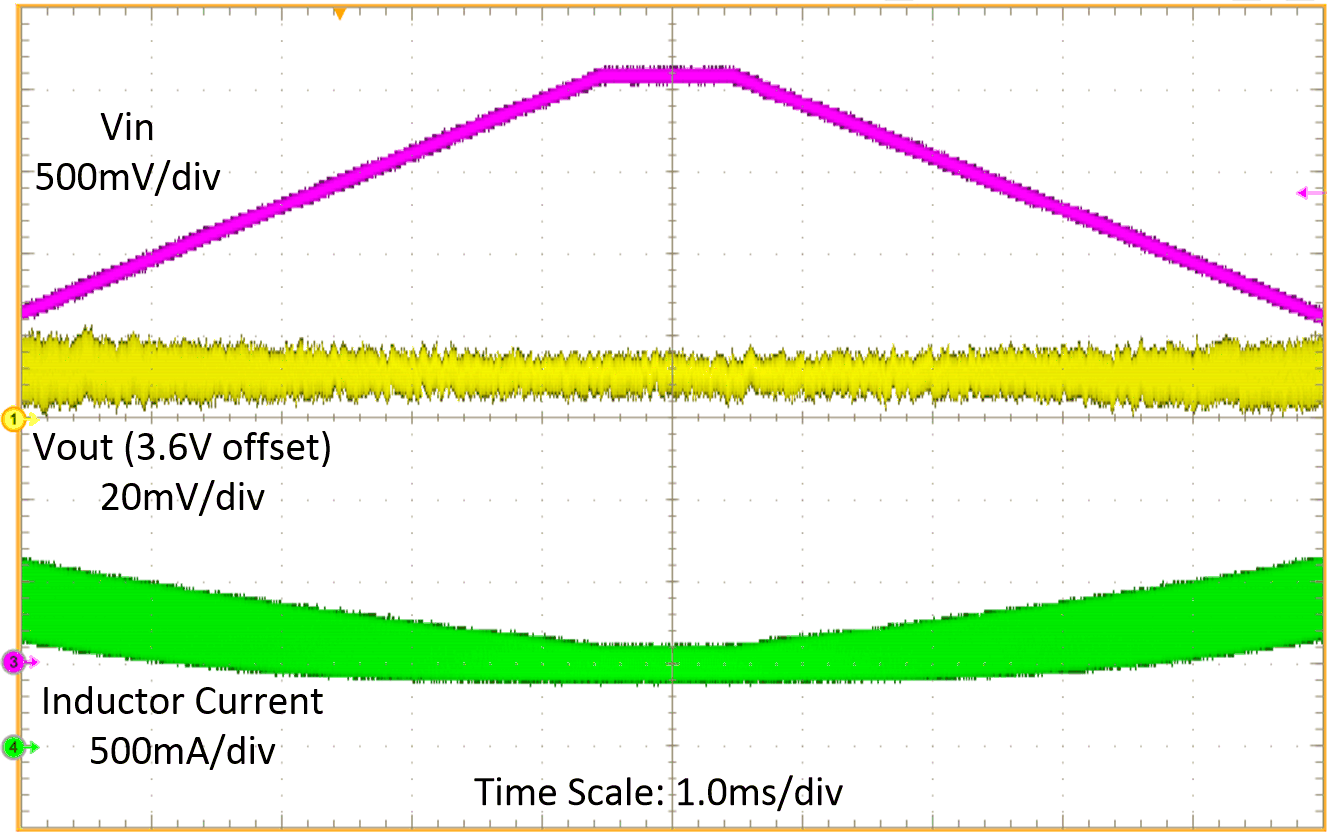

| VIN = 2.0-V to 3.5-V Sweep | |
| VIN = 3 V | VOUT = 3.6 V |
| 10-Ω resistance load | |
