10.2 Layout Example
The bottom layer is a large GND plane connected by vias.
Figure 10-1 Layout: Boost
Converter with Bypass Mode

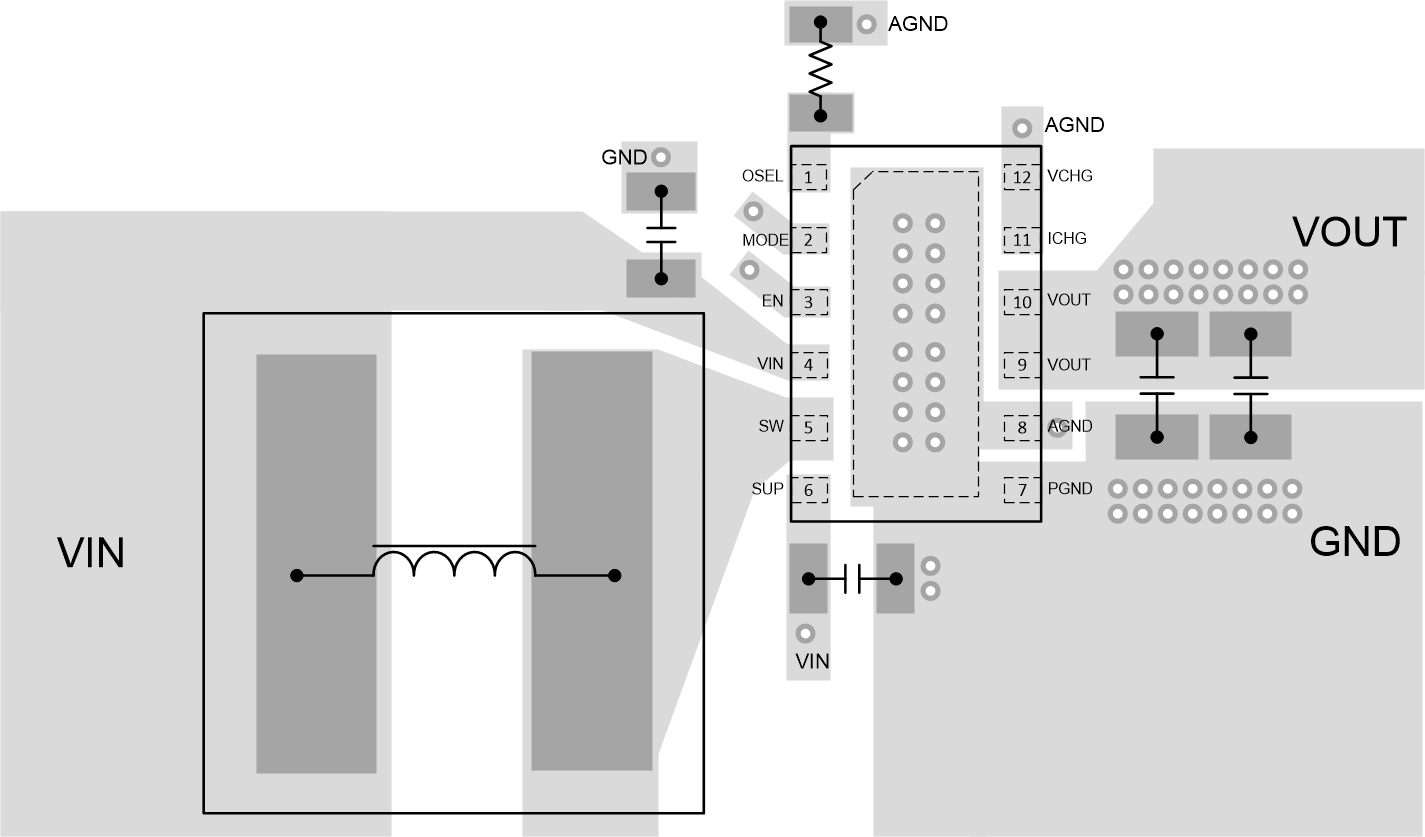

Figure 10-2 Layout: Boost
Converter with Automatic Bypass and Buck function
