8.2 Typical Application
This application example details the design of a high frequency switching regulator design using ceramic output capacitors. A few parameters must be known in order to start the design process. These parameters are typically determined at the system level.

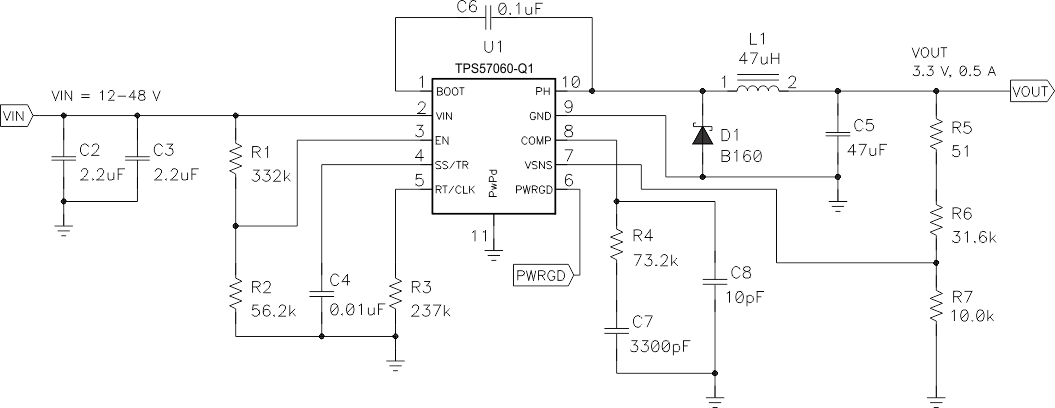

Figure 51. High Frequency, 3.3-V Output Power-Supply Design With Adjusted UVLO
