6.6 Typical Characteristics

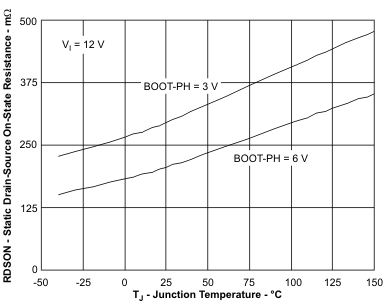

Figure 1. On Resistance vs Junction Temperature

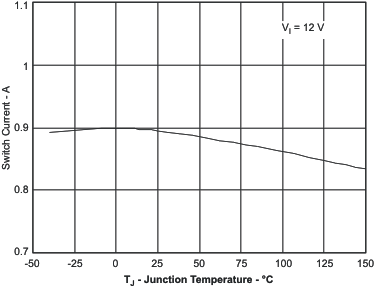

Figure 3. Switch Current Limit vs Junction Temperature
Figure 5. Switching Frequency vs RT/CLK Resistance High-Frequency Range
Figure 7. EA Transconductance During Slow Start vs Junction Temperature

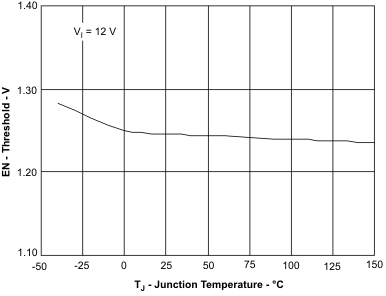

Figure 9. EN Pin Voltage vs Junction Temperature

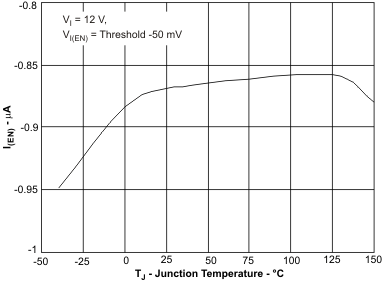

Figure 11. EN Pin Current vs Junction Temperature
Figure 13. SS/TR Discharge Current vs Junction Temperature
Figure 15. Shutdown Supply Current vs Junction Temperature

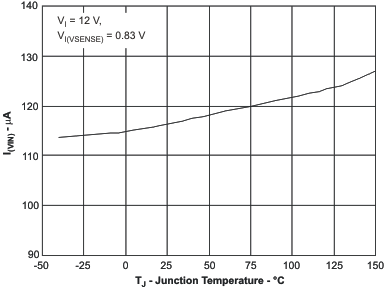

Figure 17. VIN Supply Current vs Junction Temperature
Figure 19. PWRGD On Resistance vs Junction Temperature

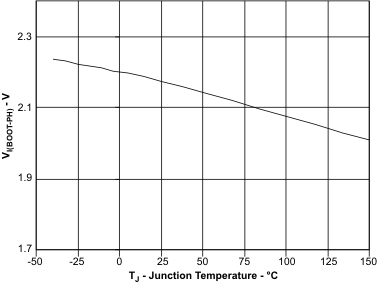

Figure 21. BOOT-PH UVLO vs Junction Temperature

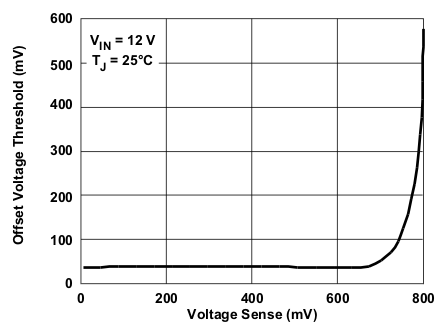

Figure 23. SS/TR to VSENSE Offset vs VSENSE

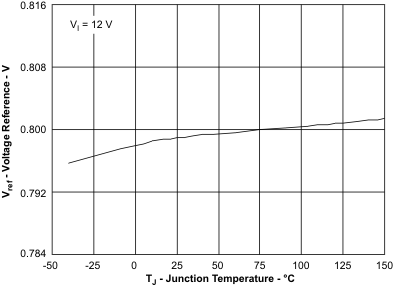

Figure 2. Voltage Reference vs Junction Temperature

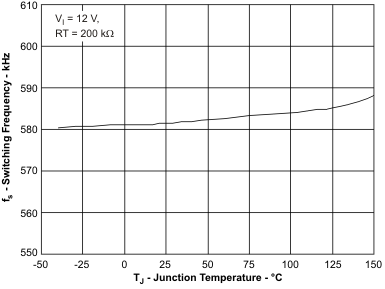

Figure 4. Switching Frequency vs Junction Temperature
Figure 6. Switching Frequency vs RT/CLK Resistance Low-Frequency Range

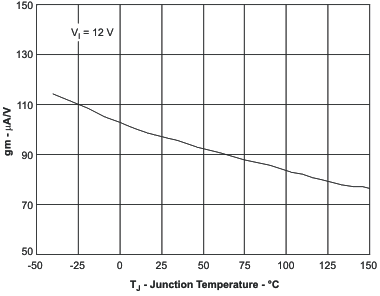

Figure 8. EA Transconductance vs Junction Temperature

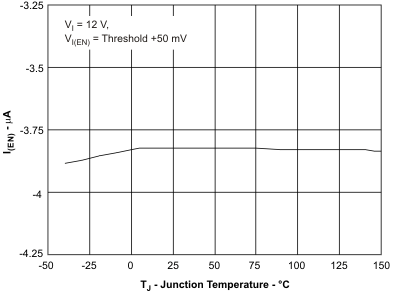

Figure 10. EN Pin Current vs Junction Temperature

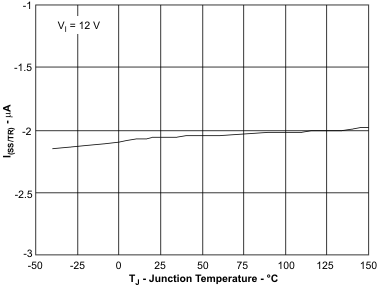

Figure 12. SS/TR Charge Current vs Junction Temperature

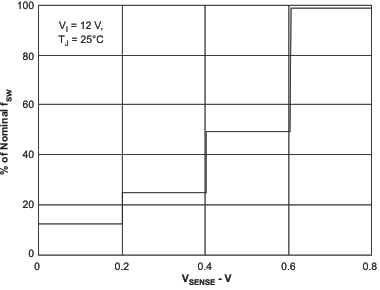

Figure 14. Switching Frequency vs VSENSE

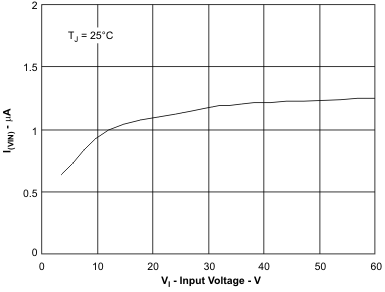

Figure 16. Shutdown Supply Current vs Input Voltage (VIN)

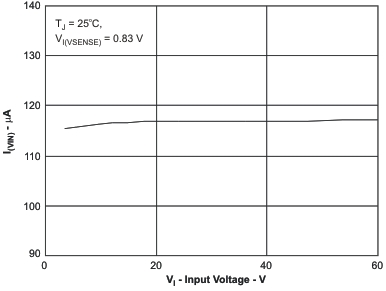

Figure 18. VIN Supply Current vs Input Voltage

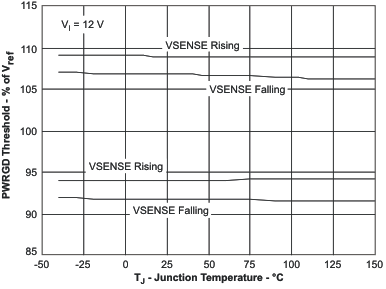

Figure 20. PWRGD Threshold vs Junction Temperature
Figure 22. Input Voltage (UVLO) vs Junction Temperature

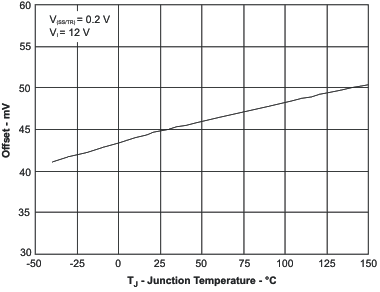

Figure 24. SS/TR to VSENSE Offset vs Temperature
