8.2.2.3 Application Curves
The following curves are characteristics of the SEPIC converter.

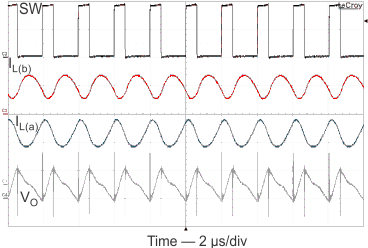

| V(SW) = 10 V/div | IL(b) = 1 A/div |
| VO (AC-coupled) = 50 mV/div | IL(a) = 1 A/div |

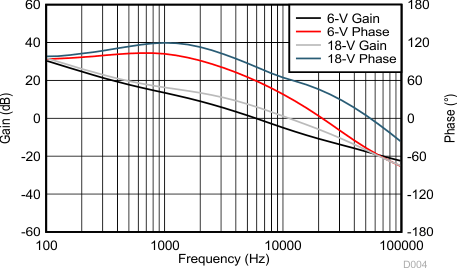

Figure 8-16 Closed Loop Gain and Phase of the SEPIC Converter

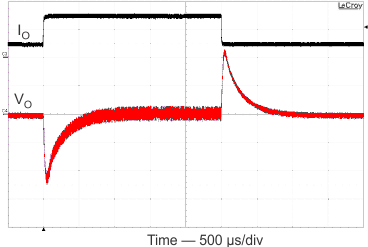

| IO = 500 mA/div | VO (AC-coupled) = 200 mV/div | |

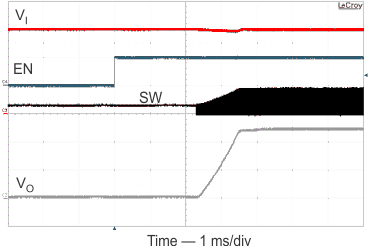

| VI = 2 V/div | V(SW) = 20 V/div |
| VO = 5 V/dvi | V(EN) = 2 V/div |
