8.2.1.3 Application Curves
The following application curves are characteristics of the boost converter.

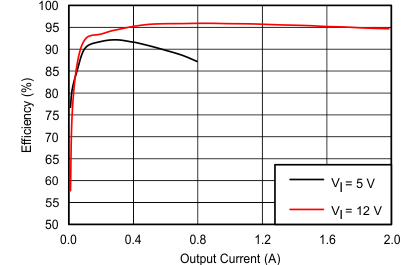

Figure 8-3 Efficiency Versus Output Current

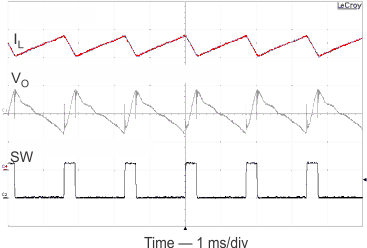

| IL = 1 A/div | V(SW) = 20 V/div | |
| VO (AC-coupled) = 100 mV/div | ||

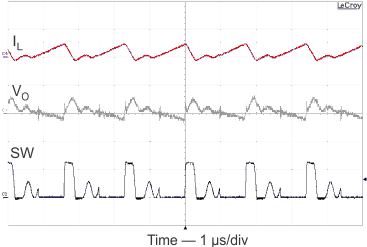

| IL = 200 mA/div | V(SW) = 20 V/div |
| VO (AC-coupled) = 20 mV/div | |

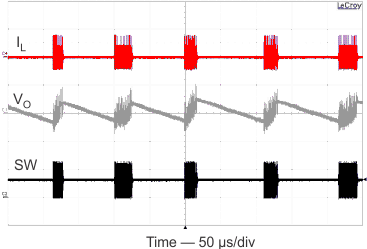

| IO = 800 mA |

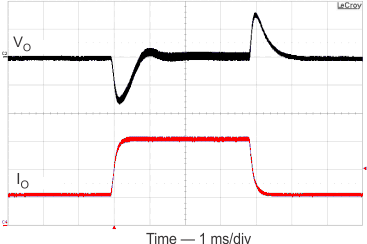

| VO (AC-coupled) = 500 mV/div | IO = 200 mA/div | |
| IL = 1 A/div | V(SW) = 20 V/div | |
| VO (AC-coupled) = 10 mV/div | ||

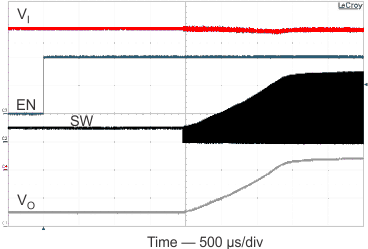

| VI = 1 V/div | V(EN) = 2 V/dvi | V(SW) = 10 V/div |
| VO = 10 V/div | ||
