6.6 Typical Characteristics
VIN = 12 V, TA = 25 °C (unless otherwise noted)

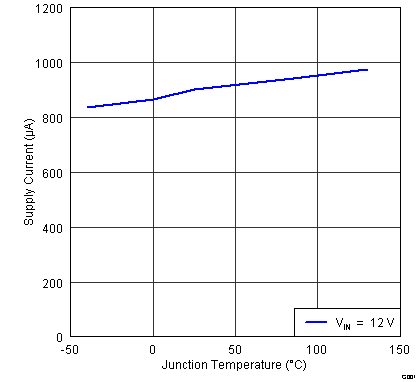

Figure 6-1 VIN Current vs
Junction Temperature

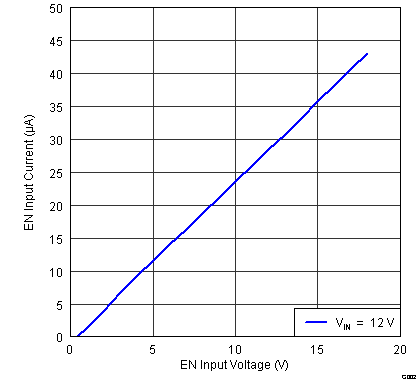

Figure 6-3 EN Current vs EN
Voltage

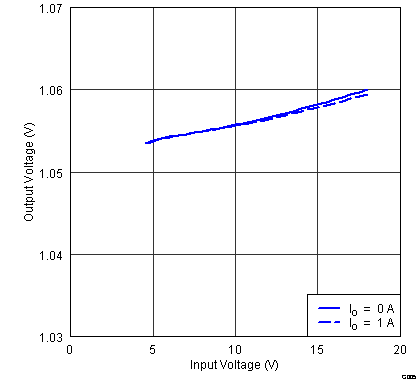

Figure 6-5 1.05-V Output Voltage vs
Input Voltage

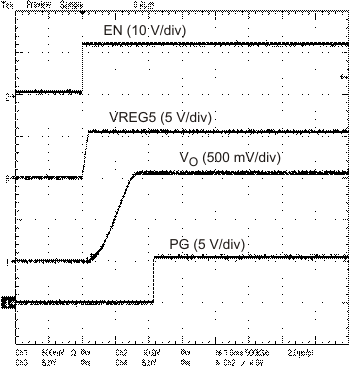

Figure 6-7 Start-Up Waveform

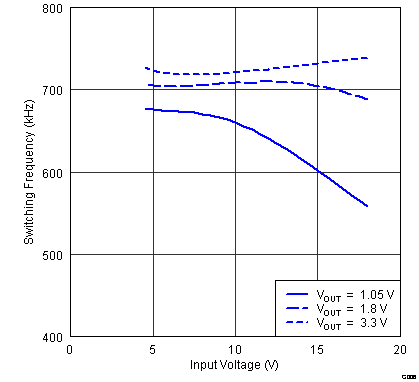

Figure 6-9 Switching Frequency vs
Input Voltage (IO = 1 A)

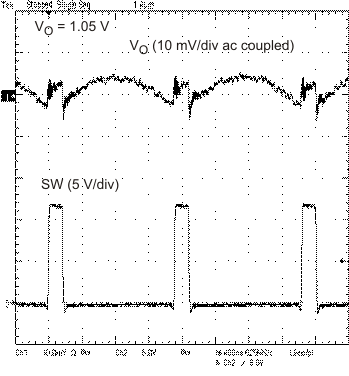

Figure 6-11 Voltage Ripple at Outptut
(IO = 5.5 A)

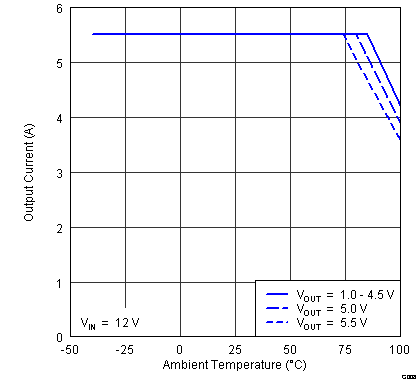

Figure 6-13 Output Current vs Ambient
Temperature

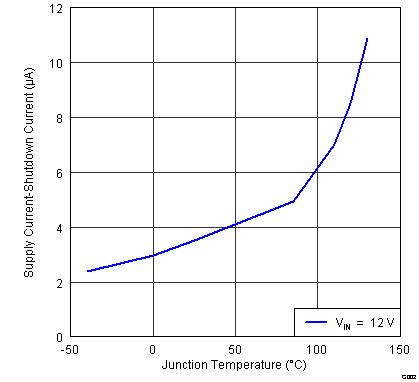

Figure 6-2 VIN Shutdown
Current vs Junction Temperature

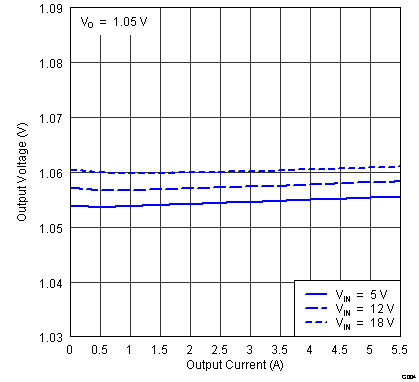

Figure 6-4 1.05-V Output Voltage vs
Output Current
Figure 6-6 1.05-V, 50-mA to 5.5-A
Load Transient Response

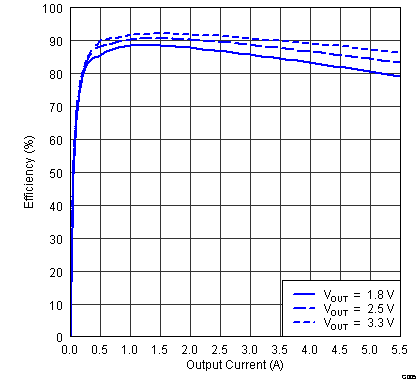

Figure 6-8 Efficiency vs Output
Current

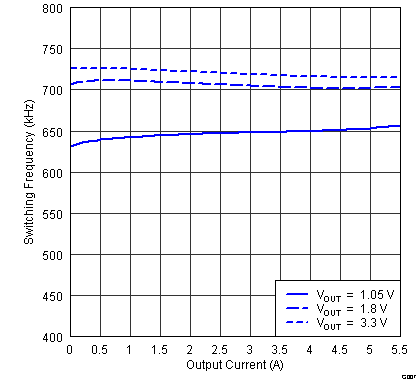

Figure 6-10 Switching Frequency vs
Output Current

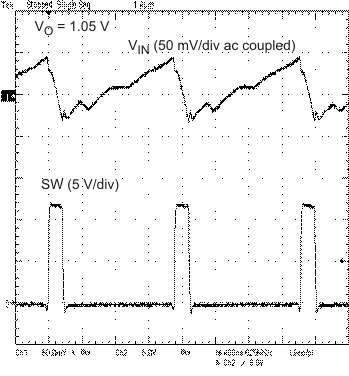

Figure 6-12 Voltage Ripple at Input
(IO = 5.5 A)
