8.2.3 Application Curves

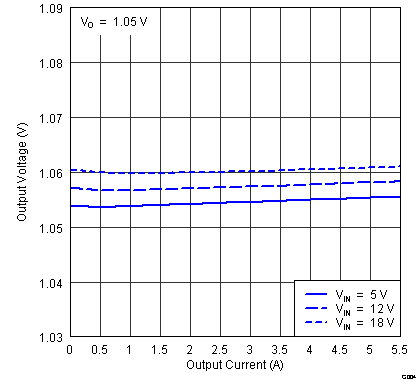

Figure 8-2 1.05-V Output Voltage vs
Output Current

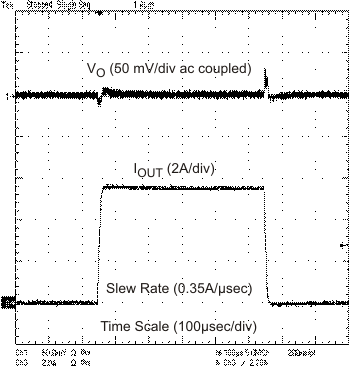

Figure 8-4 1.05-V, 50-mA to 5.5-A
Load Transient Response

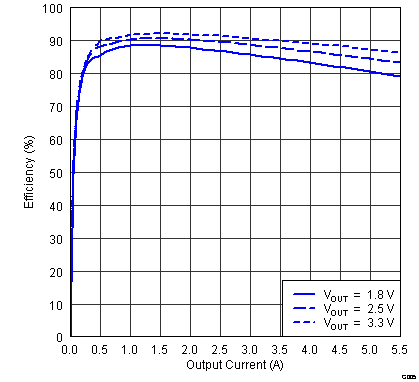

Figure 8-6 Efficiency vs Output
Current
Figure 8-8 Switching Frequency vs
Output Current
Figure 8-10 Voltage Ripple at Input
(IO = 5.5 A)

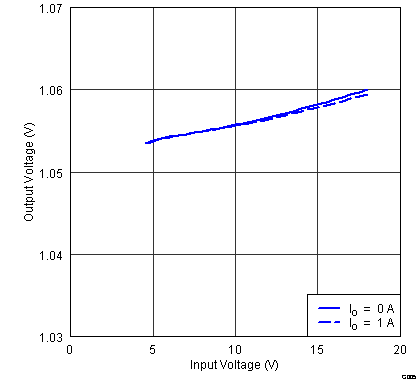

Figure 8-3 1.05-V Output Voltage vs
Input Voltage
Figure 8-5 Start-Up Waveform
Figure 8-7 Switching Frequency vs
Input Voltage (IO = 1 A)

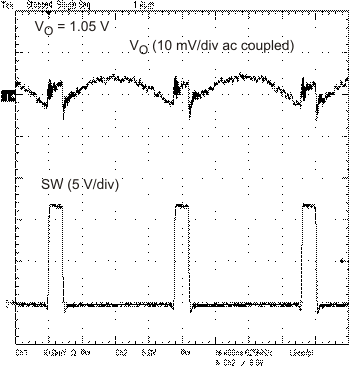

Figure 8-9 Voltage Ripple at Outptut
(IO = 5.5 A)
Figure 8-11 Output Current vs Ambient
Temperature
