7.6 Typical Characteristics
Figure 7-1 OSCILLATOR FREQUENCY vs
JUNCTION TEMPERATURE

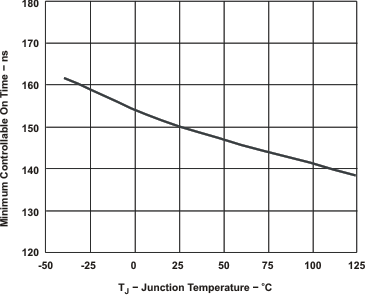

Figure 7-3 MINIMUM CONTROLLABLE ON TIME vsJUNCTION TEMPERATURE

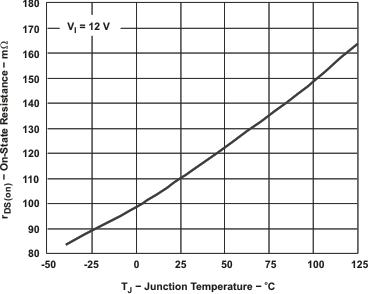

Figure 7-5 ON STATE RESISTANCE vsJUNCTION TEMPERATURE

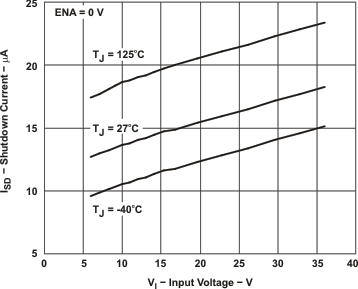

Figure 7-7 SHUTDOWN QUIESCENT CURRENT vs INPUT VOLTAGE

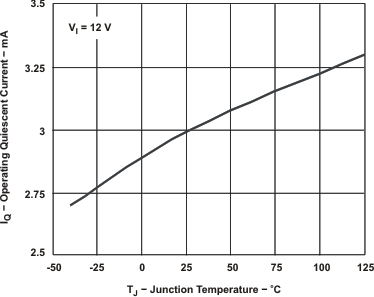

Figure 7-2 OPERATING QUIESCENT CURRENT vsJUNCTION TEMPERATURE

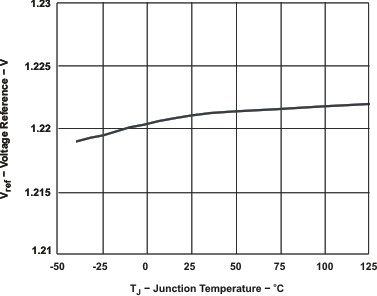

Figure 7-4 VOLTAGE REFERENCE vsJUNCTION TEMPERATURE

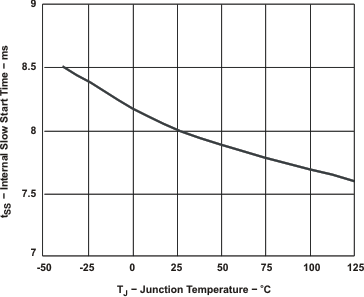

Figure 7-6 INTERNAL SLOW START TIME vsJUNCTION TEMPERATURE

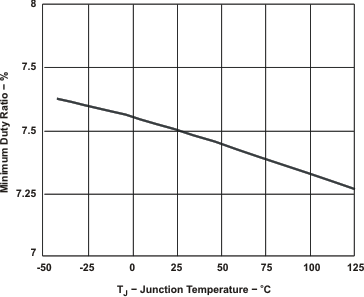

Figure 7-8 MINIMUM CONTROLLABLE DUTY RATIO vs JUNCTION TEMPERATURE
