3 說明
TPS54020 是一款 10A、4.5V 到 17V 輸入 SWIFT 轉換器。該器件采用創新型 3.5mm × 3.5mm HotRod 封裝，能夠優化高密度降壓設計。TPS54020 是一款功能全面的轉換器。
通過高側和低側 MOSFET 的創新集成和封裝實現了高效率。TPS54020 可在較高的負載條件下保持持續電流模式 (CCM) 運行，并能夠在跳過脈沖時切換到 Eco 模式以提升輕載效率。
兩個 MOSFET 上的電流限制提供器件和系統的保護。高側 MOSFET 內的逐周期電流限制在過載情況下提供保護。低側 MOSFET 零電流檢測在輕負載運行時關閉低側 MOSFET。共有三種限流閾值可供選擇，能夠適用于多種應用。也可選擇一個斷續或逐周期過流保護機制。
當芯片溫度超過熱關斷觸發點時，熱關斷保護禁用開關，而在內置熱滯后和關斷斷續時間后啟用開關。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS54020 | VQFN (15) | 3.50mm x 3.50mm |
(1) 如需了解所有可用封裝，請見數據表末尾的可訂購產品附錄。

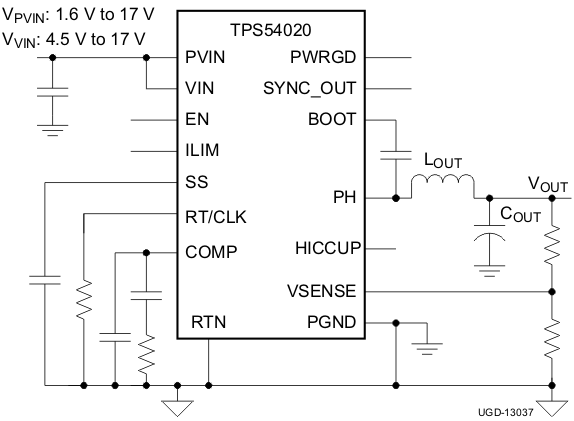

簡化版應用電路原理圖

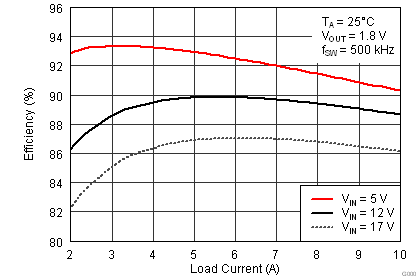

效率與負載電流間的關系
