7.6 Typical Characteristics

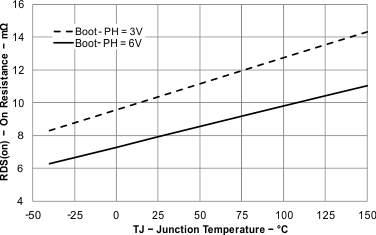

Figure 7-1 High-Side MOSFET On-Resistance vs Junction Temperature

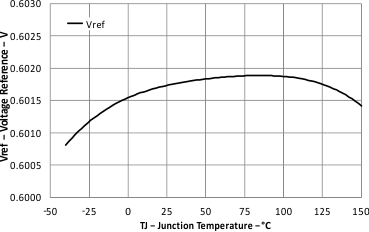

Figure 7-3 Voltage Reference vs Junction Temperature

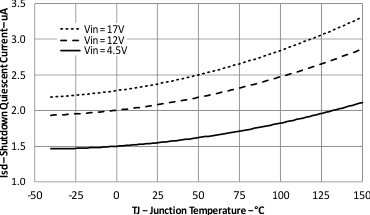

Figure 7-5 Shutdown Quiescent Current vs Junction Temperature
Figure 7-7 EN
Pin Pullup Current vs Junction Temperature, VEN = 1.1 V

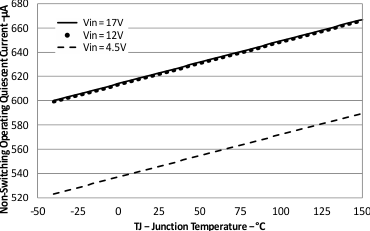

Figure 7-9 Nonswitching Operating Current vs vs Junction Temperature
Figure 7-11 (VSS-VVSENSE) Offset vs Junction
Temperature

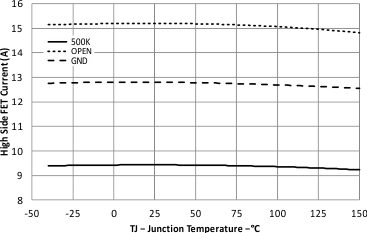

Figure 7-13 High-Side MOSFET Current Limit vs Junction Temperature, VIN = 12
V

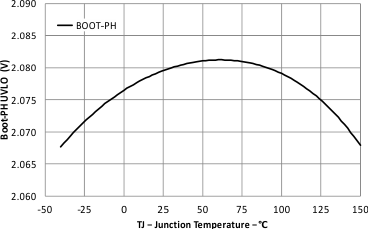

Figure 7-15 BOOT-PH UVLO vs Junction Temperature

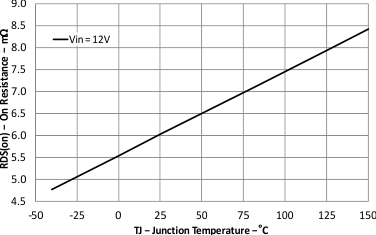

Figure 7-2 Low-Side MOSFET On-Resistance vs Junction Temperature

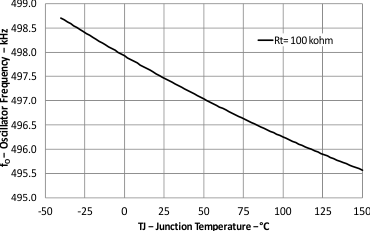

Figure 7-4 Oscillator Frequency vs Junction Temperature

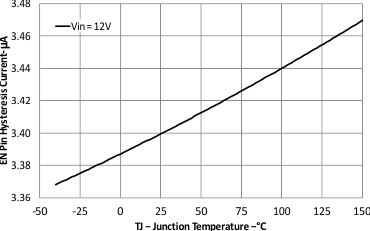

Figure 7-6 EN
Pin Hysteresis Current vs Junction Temperature, VEN = 1.3
V

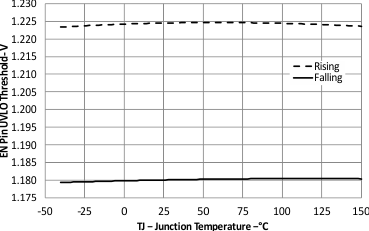

Figure 7-8 EN
Pin UVLO Threshold vs Junction Temperature, VVIN = 12 V

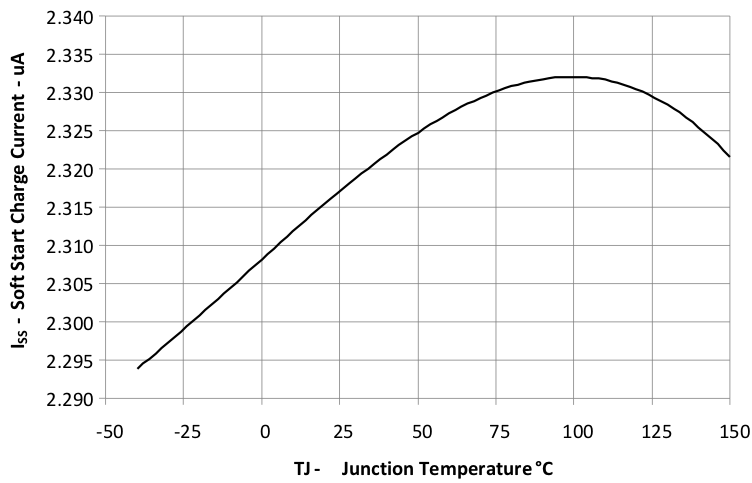

Figure 7-10 Soft-Start Charge Current vs Junction Temperature

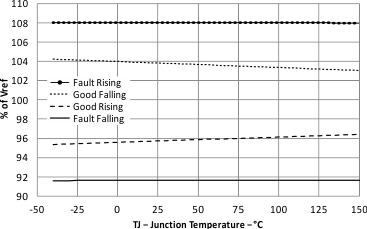

Figure 7-12 Power-Good Threshold vs Junction Temperature

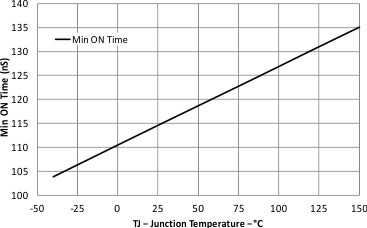

Figure 7-14 Minimum On-Time vs Temperature
