6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Input voltage(2) | VBST | –0.3 | 36 | V |
| VBST(3) | –0.3 | 6 | ||
| SW | –5 | 30 | ||
| VLDOIN, VDDQSNS, REFIN | –0.3 | 3.6 | ||
| VTTSNS | –0.3 | 3.6 | ||
| PGND, VTTGND | –0.3 | 0.3 | ||
| V5IN, S3, S5, TRIP, MODE | –0.3 | 6 | ||
| Output voltage(2) | DRVH | –5 | 36 | V |
| DRVH(3) | –0.3 | 6 | ||
| VTTREF, VREF | –0.3 | 3.6 | ||
| VTT | –0.3 | 3.6 | ||
| DRVL | –0.3 | 6 | ||
| PGOOD | –0.3 | 6 | ||
| Junction temperature, TJ | 125 | °C | ||
| Storage temperature, Tstg | –55 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to the network ground terminal unless otherwise noted.
(3) Voltage values are with respect to the SW terminal.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±500 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| Supply voltage | V5IN | 4.5 | 5.5 | V | |
| Input voltage range | VBST | –0.1 | 33.5 | V | |
| VBST(2) | –0.1 | 5.5 | |||
| SW | –3 | 28 | |||
| SW(1) | –4.5 | 28 | |||
| VLDOIN, VDDQSNS, REFIN | –0.1 | 3.5 | |||
| VTTSNS | –0.1 | 3.5 | |||
| PGND, VTTGND | –0.1 | 0.1 | |||
| S3, S5, TRIP, MODE | –0.1 | 5.5 | |||
| Output voltage range | DRVH | –3 | 33.5 | V | |
| DRVH(2) | –0.1 | 5.5 | |||
| DRVH(1) | –4.5 | 33.5 | |||
| VTTREF, VREF | –0.1 | 3.5 | |||
| VTT | –0.1 | 3.5 | |||
| DRVL | –0.1 | 5.5 | |||
| PGOOD | –0.1 | 5.5 | |||
| TA | Operating free-air temperature | –40 | 85 | °C | |
(1) This voltage should be applied for less than 30% of the repetitive period.
(2) Voltage values are with respect to the SW terminal.
6.4 Thermal Information
| THERMAL METRIC(1) | TPS51716 | UNIT | |
|---|---|---|---|
| RUK (WQFN) | |||
| 20 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 94.1 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 58.1 | °C/W |
| RθJB | Junction-to-board thermal resistance | 64.3 | °C/W |
| ψJT | Junction-to-top characterization parameter | 31.8 | °C/W |
| ψJB | Junction-to-board characterization parameter | 58.0 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 5.9 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
6.5 Electrical Characteristics
over operating free-air temperature range, VV5IN = 5 V, VLDOIN is connected to VDDQ output, VMODE= 0 V, VS3= VS5= 5 V (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| SUPPLY CURRENT | ||||||
| IV5IN(S0) | V5IN supply current, in S0 | TA = 25°C, No load, VS3 = VS5 = 5 V | 590 | μA | ||
| IV5IN(S3) | V5IN supply current, in S3 | TA = 25°C, No load, VS3 = 0 V, VS5 = 5 V | 500 | μA | ||
| IV5INSDN | V5IN shutdown current | TA = 25°C, No load, VS3 = VS5 = 0 V | 1 | μA | ||
| IVLDOIN(S0) | VLDOIN supply current, in S0 | TA = 25°C, No load, VS3 = VS5 = 5 V | 5 | μA | ||
| IVLDOIN(S3) | VLDOIN supply current, in S3 | TA = 25°C, No load, VS3 = 0 V, VS5 = 5 V | 5 | μA | ||
| IVLDOINSDN | VLDOIN shutdown current | TA = 25°C, No load, VS3 = VS5 = 0 V | 5 | μA | ||
| VREF OUTPUT | ||||||
| VVREF | Output voltage | IVREF = 30 μA, TA = 25°C | 1.8000 | V | ||
| 0 μA ≤ IVREF <300 μA, TA = –10°C to 85°C | 1.7856 | 1.8144 | ||||
| 0 μA ≤ IVREF <300 μA, TA = –40°C to 85°C | 1.7820 | 1.8180 | ||||
| IVREFOCL | Current limit | VVREF = 1.7 V | 0.4 | 0.8 | mA | |
| VTTREF OUTPUT | ||||||
| VVTTREF | Output voltage | VVDDQSNS / 2 | V | |||
| VVTTREF | Output voltage tolerance to VVDDQ | |IVTTREF| <100 μA, 1.2 V ≤ VVDDQSNS ≤ 1.8 V | 49.2% | 50.8% | ||
| |IVTTREF| <10 mA, 1.2 V ≤ VVDDQSNS ≤ 1.8 V | 49% | 51% | ||||
| IVTTREFOCLSRC | Source current limit | VVDDQSNS = 1.8 V, VVTTREF= 0 V | 10 | 18 | mA | |
| IVTTREFOCLSNK | Sink current limit | VVDDQSNS = 1.8 V, VVTTREF = 1.8 V | 10 | 17 | mA | |
| IVTTREFDIS | VTTREF discharge current | TA = 25°C, VS3 = VS5 = 0 V, VVTTREF = 0.5 V | 0.8 | 1.3 | mA | |
| VTT OUTPUT | ||||||
| VVTT | Output voltage | VVTTREF | V | |||
| VVTTTOL | Output voltage tolerance to VTTREF | |IVTT| ≤ 10 mA, 1.2 V ≤ VVDDQSNS ≤ 1.8 V, IVTTREF= 0 A |
–20 | 20 | mV | |
| |IVTT| ≤ 1 A, 1.2 ≤ VVDDQSNS ≤ 1.8 V, IVTTREF= 0 A |
–30 | 30 | ||||
| |IVTT| ≤ 2 A, 1.4 V ≤ VVDDQSNS ≤ 1.8 V, IVTTREF= 0 A |
–40 | 40 | ||||
| |IVTT| ≤ 1.5 A, 1.2 V ≤ VVDDQSNS ≤ 1.4 V, IVTTREF= 0 A |
–40 | 40 | ||||
| IVTTOCLSRC | Source current limit | VVDDQSNS = 1.8 V, VVTT = VVTTSNS = 0.7 V, IVTTREF= 0 A |
2 | 3 | A | |
| IVTTOCLSNK | Sink current limit | VVDDQSNS = 1.8V, VVTT = VVTTSNS = 1.1 V, IVTTREF= 0 A |
2 | 3 | A | |
| IVTTLK | Leakage current | TA = 25°C , VS3 = 0 V, VS5 = 5 V, VVTT = VVTTREF | 5 | μA | ||
| IVTTSNSBIAS | VTTSNS input bias current | VS3 = 5 V, VS5 = 5 V, VVTTSNS = VVTTREF | –0.5 | 0.0 | 0.5 | μA |
| IVTTSNSLK | VTTSNS leakage current | VS3 = 0 V, VS5 = 5 V, VVTTSNS = VVTTREF | –1 | 0 | 1 | μA |
| IVTTDIS | VTT Discharge current | TA = 25°C, VS3 = VS5 = 0 V, VVDDQSNS = 1.8 V, VVTT = 0.5 V, IVTTREF= 0 A |
7.8 | mA | ||
| VDDQ OUTPUT | ||||||
| VVDDQSNS | VDDQ sense voltage | VREFIN | ||||
| IVDDQSNS | VDDQSNS input current | VVDDQSNS = 1.8 V | 39 | μA | ||
| IREFIN | REFIN input current | VREFIN = 1.8 V | –0.1 | 0.0 | 0.1 | μA |
| IVDDQDIS | VDDQ discharge current | VS3 = VS5 = 0 V, VVDDQSNS = 0.5 V, non-tracking discharge mode | 12 | mA | ||
| IVLDOINDIS | VLDOIN discharge current | VS3 = VS5 = 0 V, VVDDQSNS = 0.5 V, tracking discharge mode | 1.2 | A | ||
| SWITCH MODE POWER SUPPLY (SMPS) FREQUENCY | ||||||
| fSW | VDDQ switching frequency | VIN = 12 V, VVDDQSNS = 1.8 V, RMODE = 1 kΩ | 500 | kHz | ||
| VIN = 12 V, VVDDQSNS = 1.8 V, RMODE = 12 kΩ | 670 | |||||
| tON(min) | Minimum on time | DRVH rising to falling(1) | 60 | ns | ||
| tOFF(min) | Minimum off time | DRVH falling to rising | 200 | 320 | 450 | ns |
| VDDQ MOSFET DRIVER | ||||||
| RDRVH | DRVH resistance | Source, IDRVH = –50 mA | 1.6 | 3 | Ω | |
| Sink, IDRVH = 50 mA | 0.6 | 1.5 | ||||
| RDRVL | DRVL resistance | Source, IDRVL = –50 mA | 0.9 | 2 | Ω | |
| Sink, IDRVL = 50 mA | 0.5 | 1.2 | ||||
| tDEAD | Dead time | DRVH-off to DRVL-on | 10 | ns | ||
| DRVL-off to DRVH-on | 20 | |||||
| INTERNAL BOOT STRAP SW | ||||||
| VFBST | Forward voltage | VV5IN-VBST, TA = 25°C, IF = 10 mA | 0.1 | 0.2 | V | |
| IVBSTLK | VBST leakage current | TA = 25°C, VVBST = 33 V, VSW = 28 V | 0.01 | 1.5 | μA | |
| LOGIC THRESHOLD | ||||||
| IMODE | MODE source current | 14 | 15 | 16 | μA | |
| VTHMODE | MODE threshold voltage | MODE 0-1 | 109 | 129 | 149 | mV |
| MODE 1-2 | 235 | 255 | 275 | |||
| MODE 2-3 | 392 | 412 | 432 | |||
| VIL | S3/S5 low-level voltage | 0.5 | V | |||
| VIH | S3/S5 high-level voltage | 1.8 | V | |||
| VIHYST | S3/S5 hysteresis voltage | 0.25 | V | |||
| IILK | S3/S5 input leak current | –1 | 0 | 1 | μA | |
| SOFT START | ||||||
| tSS | VDDQ soft-start time | Internal soft-start time, CVREF = 0.1 μF, S5 rising to VVDDQSNS > 0.99 × VREFIN |
1.1 | ms | ||
| PGOOD COMPARATOR | ||||||
| VTHPG | VDDQ PGOOD threshold | PGOOD in from higher | 106% | 108% | 110% | |
| PGOOD in from lower | 90% | 92% | 94% | |||
| PGOOD out to higher | 114% | 116% | 118% | |||
| PGOOD out to lower | 82% | 84% | 86% | |||
| IPG | PGOOD sink current | VPGOOD = 0.5 V | 3 | 5.9 | mA | |
| tPGDLY | PGOOD delay time | Delay for PGOOD in | 0.8 | 1 | 1.2 | ms |
| Delay for PGOOD out, with 100 mV over drive | 330 | ns | ||||
| tPGSSDLY | PGOOD start-up delay | CVREF = 0.1 μF, S5 rising to PGOOD rising | 2.5 | ms | ||
| PROTECTIONS | ||||||
| ITRIP | TRIP source current | TA = 25°C, VTRIP = 0.4 V | 9 | 10 | 11 | μA |
| TCITRIP | TRIP source current temperature coefficient(1) | 4700 | ppm/°C | |||
| VTRIP | VTRIP voltage range | 0.2 | 3 | V | ||
| VOCL | Current limit threshold | VTRIP = 3.0 V | 360 | 375 | 390 | mV |
| VTRIP = 1.6 V | 190 | 200 | 210 | |||
| VTRIP = 0.2 V | 20 | 25 | 30 | |||
| VOCLN | Negative current limit threshold | VTRIP = 3.0 V | –390 | –375 | –360 | mV |
| VTRIP = 1.6 V | –210 | –200 | –190 | |||
| VTRIP = 0.2 V | –30 | –25 | –20 | |||
| VZC | Zero cross detection offset | 0 | mV | |||
| VUVLO | V5IN UVLO threshold voltage | Wake-up | 4.2 | 4.4 | 4.5 | V |
| Shutdown | 3.7 | 3.9 | 4.1 | |||
| VOVP | VDDQ OVP threshold voltage | OVP detect voltage | 118% | 120% | 122% | |
| tOVPDLY | VDDQ OVP propagation delay | With 100 mV over drive | 430 | ns | ||
| VUVP | VDDQ UVP threshold voltage | UVP detect voltage | 66% | 68% | 70% | |
| tUVPDLY | VDDQ UVP delay | 1 | ms | |||
| tUVPENDLY | VDDQ UVP enable delay | 1.2 | ms | |||
| VOOB | OOB Threshold voltage | 108% | ||||
| THERMAL SHUTDOWN | ||||||
| TSDN | Thermal shutdown threshold | Shutdown temperature(1) | 140 | °C | ||
| Hysteresis(1) | 10 | |||||
(1) Specified by design. Not production tested.

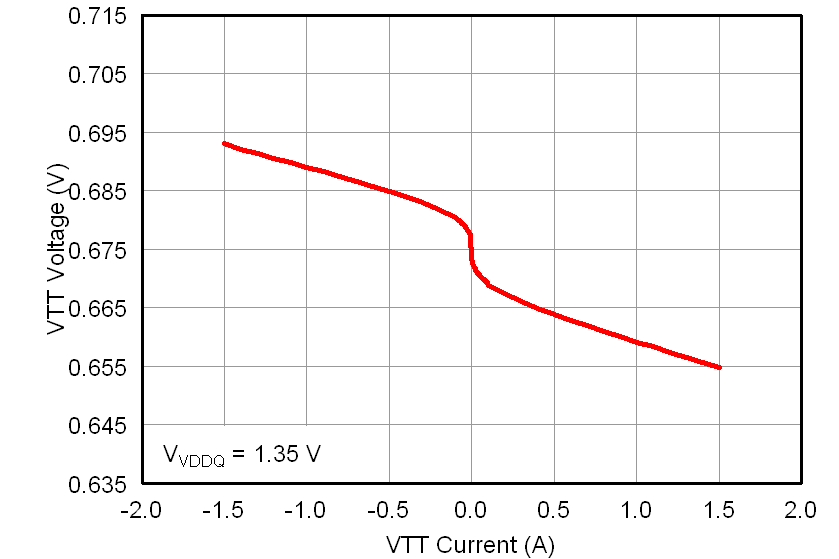

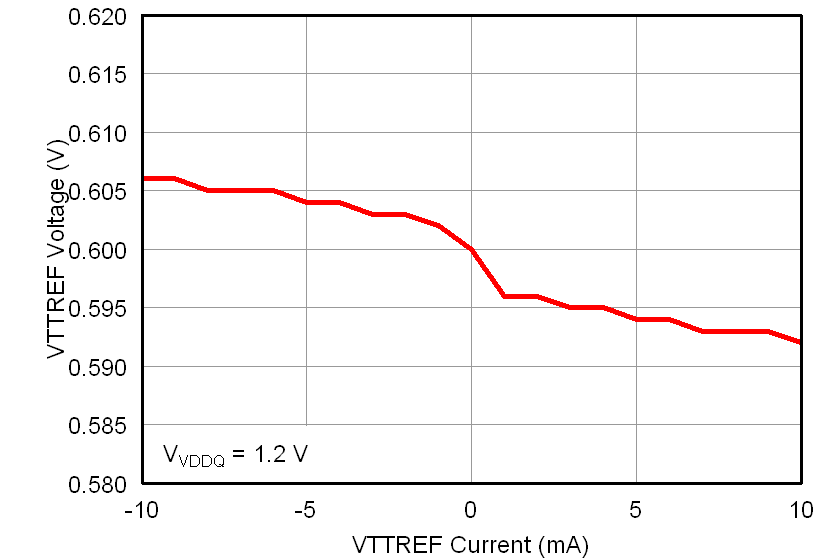

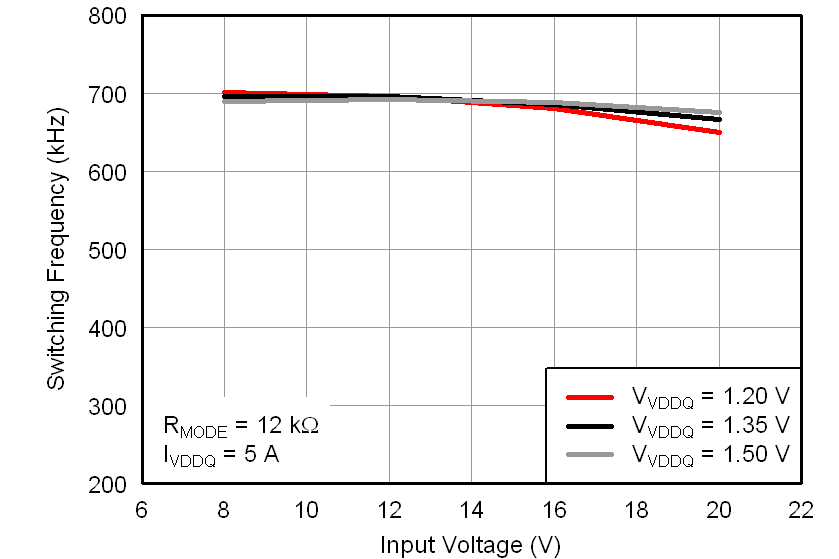

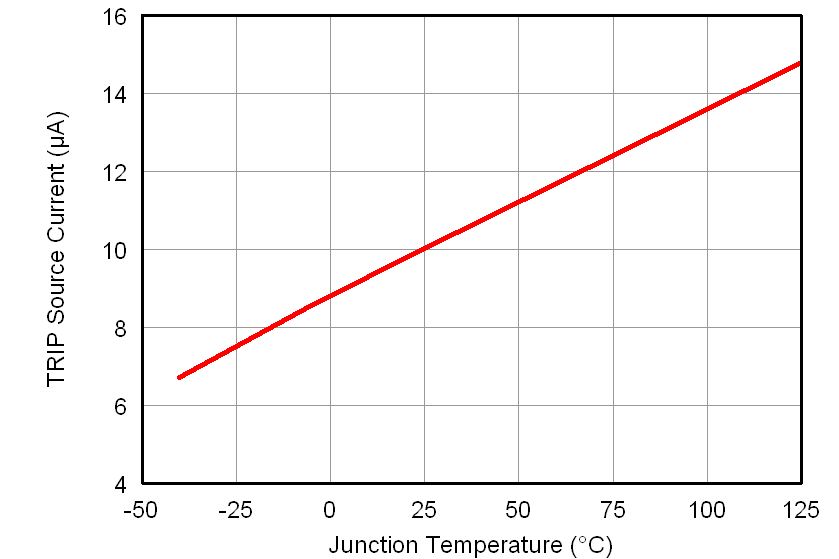

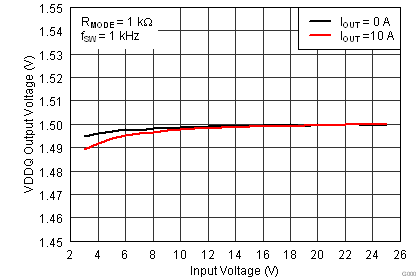

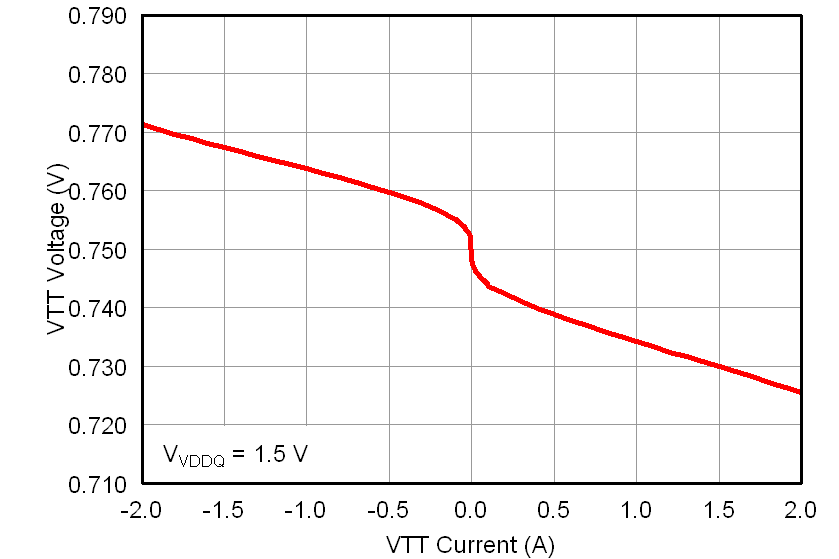

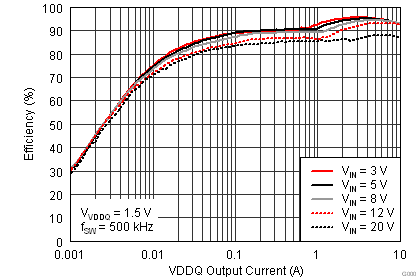

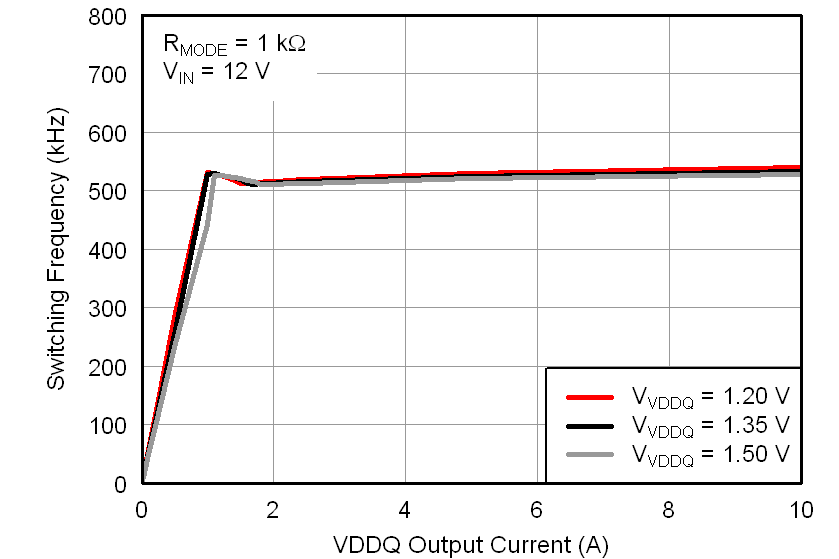

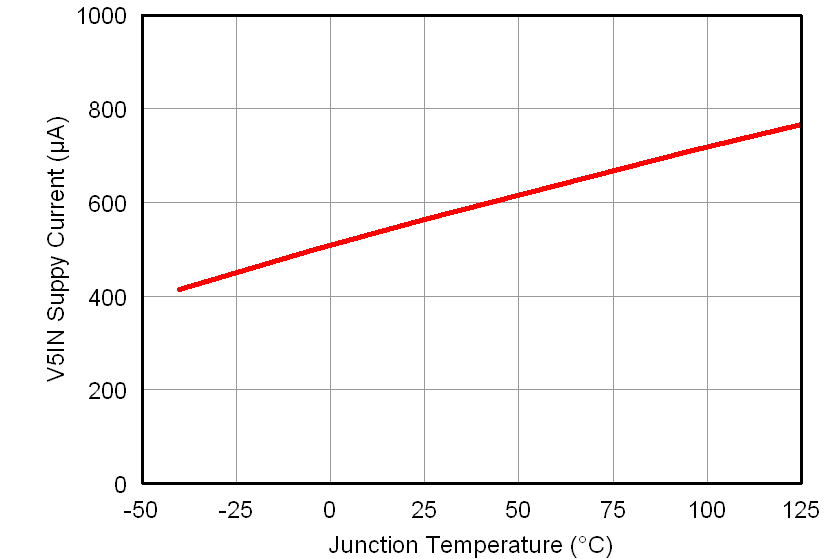

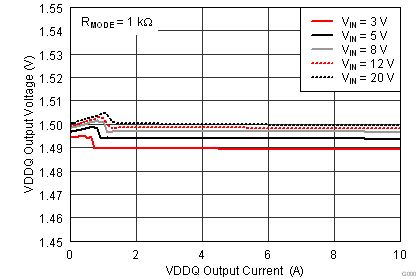

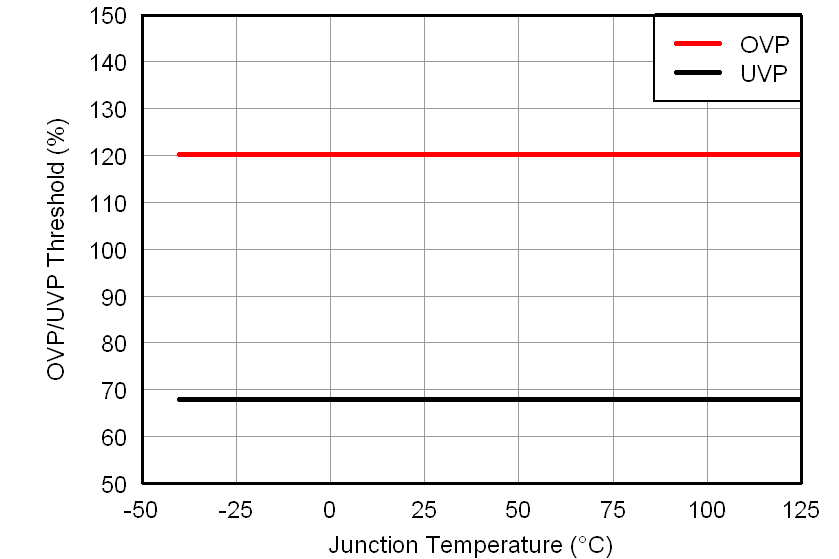

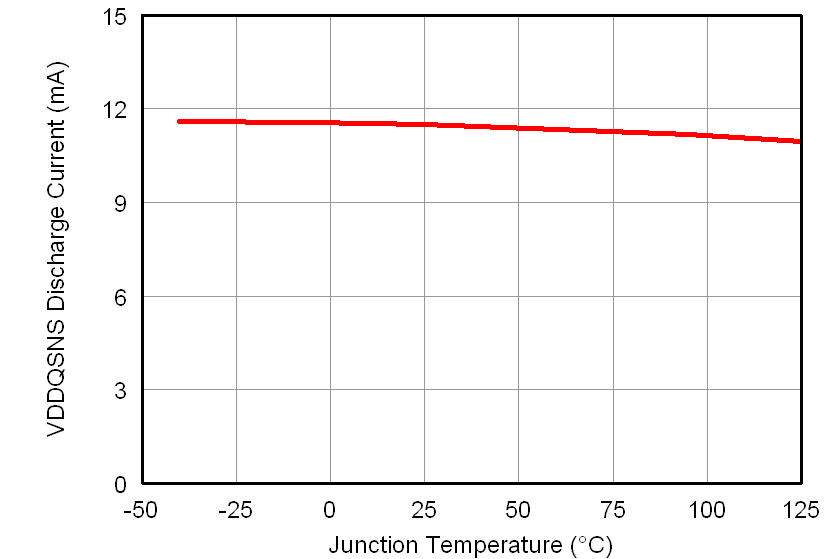

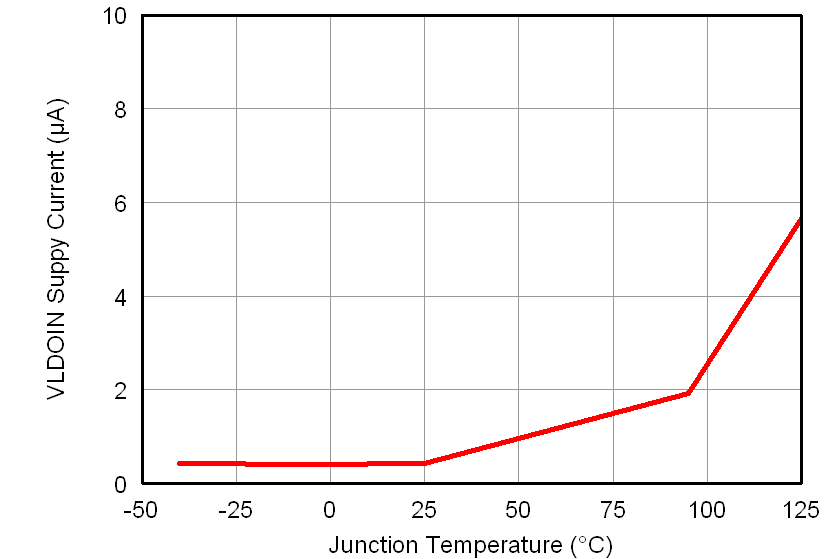

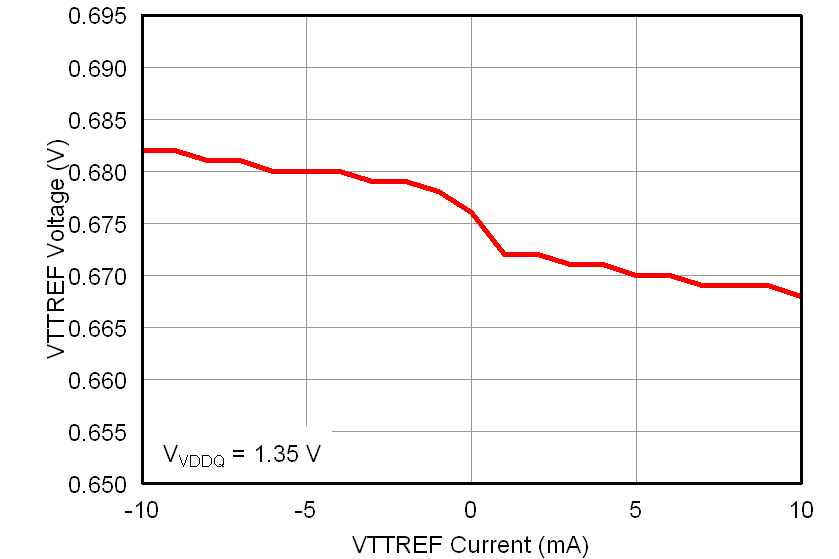

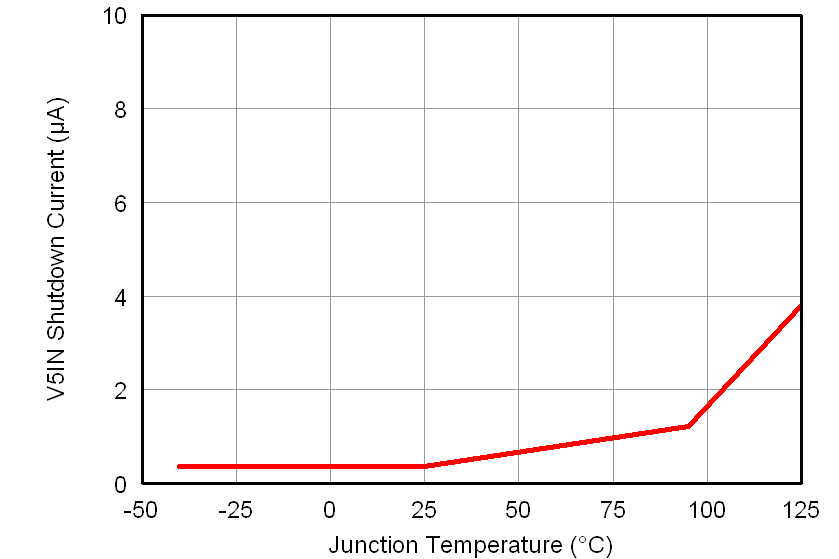

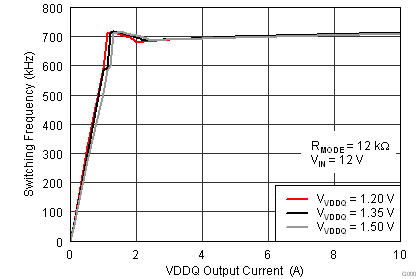

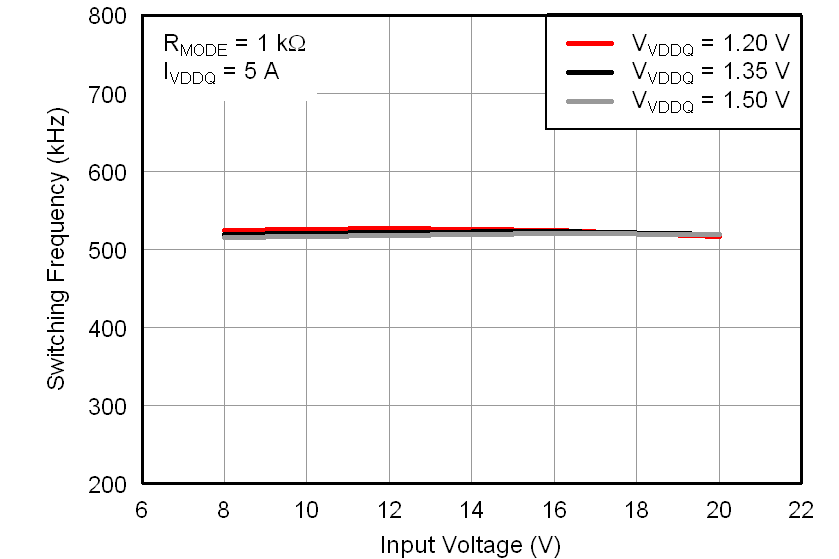

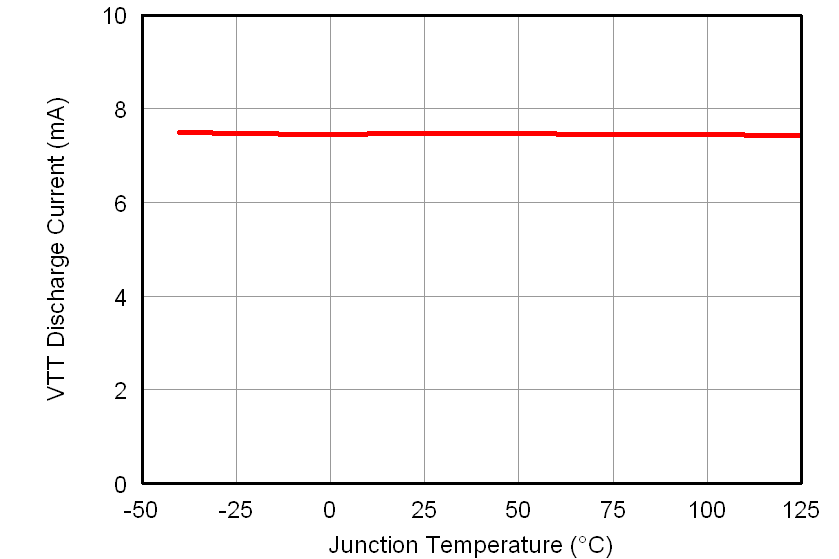

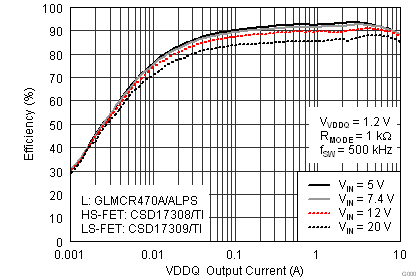

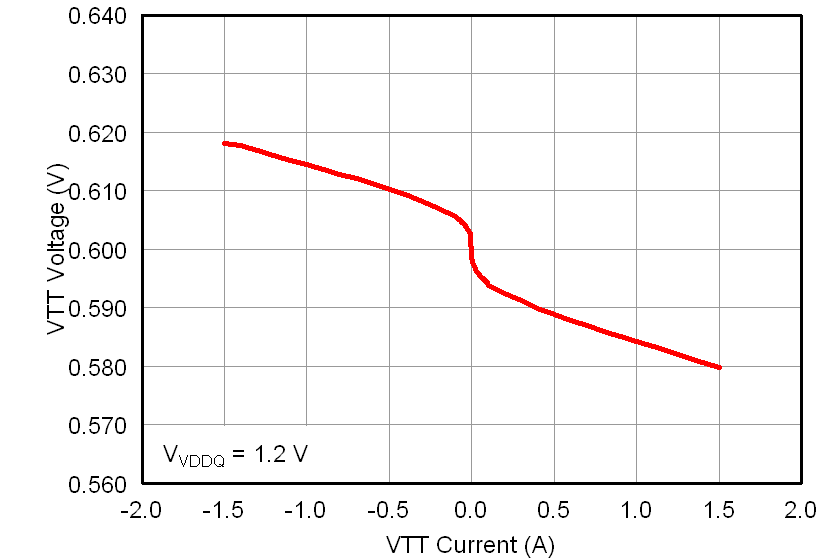

6.6 Typical Characteristics
