8.2.3 Application Curves

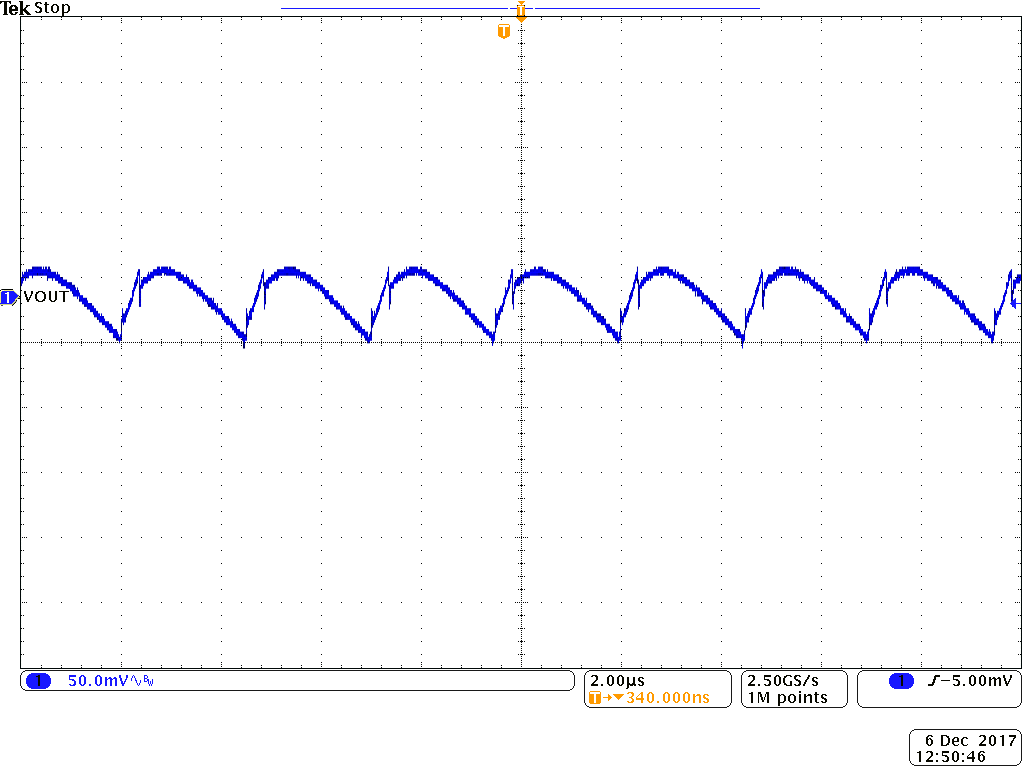

| DDR3 | Current Mode |
| VIN = 12 V | IOUT = 10 A |

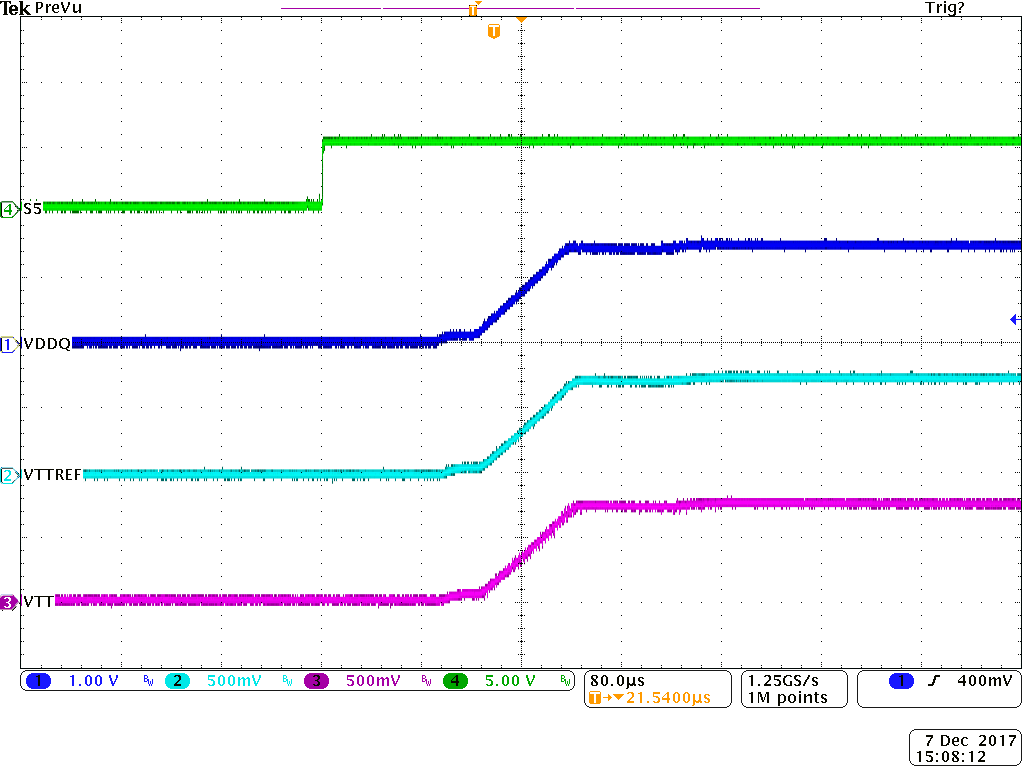

| DDR3 | Current Mode |
| VIN = 12 V | IOUT = 1 A |

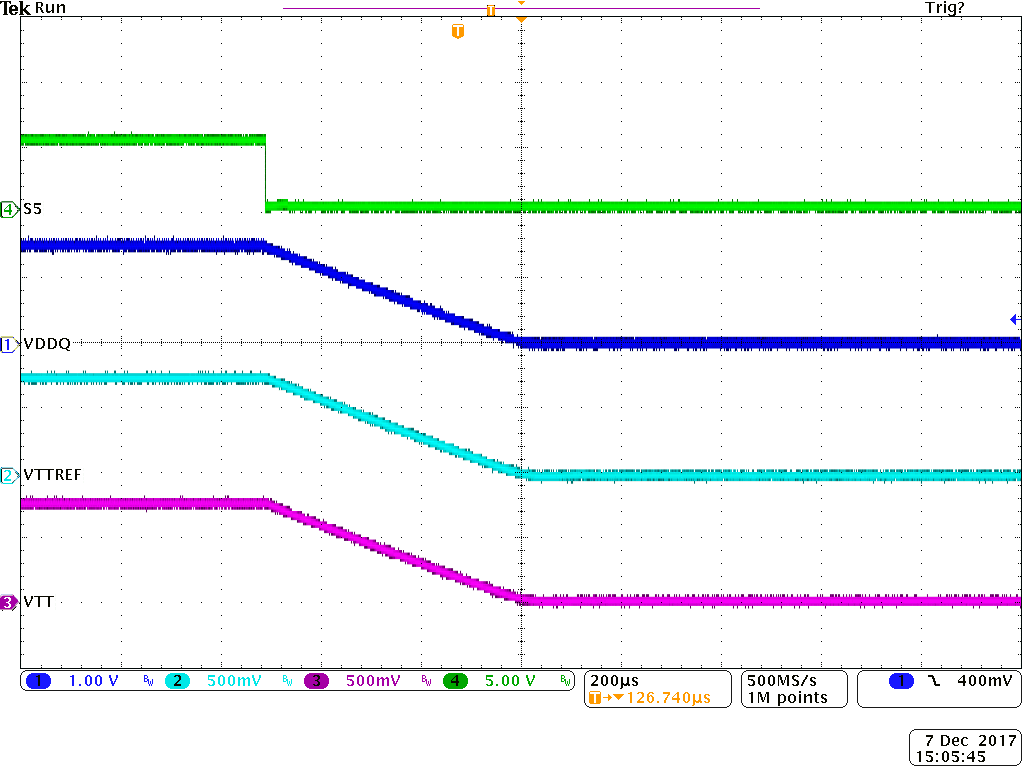

| DDR3 | Current Mode |
| VIN = 12 V | IOUT = 1 A |

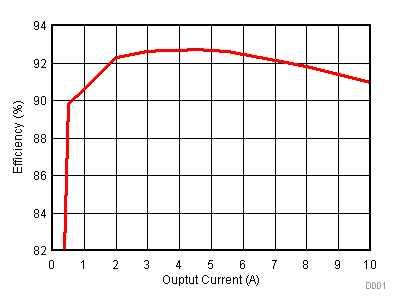

| DDR3 | Current Mode |
| fSWN = 400 kHz |
