3 說明
TPS40422 是一款雙輸出 PMBus 協議同步降壓控制器。它也可配置為單一的雙向輸出。
其寬輸入范圍支持 5V 和 12V 中間總線。準確的基準電壓滿足了最新 ASIC 的精度電壓的需要并且有可能減少了輸出電容。電壓模式控制降低噪聲敏感度并保證低占空比轉換。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS40422 | VQFN (40) | 6.00mm × 6.00mm |
| WQFN (40) | 5.00mm × 5.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

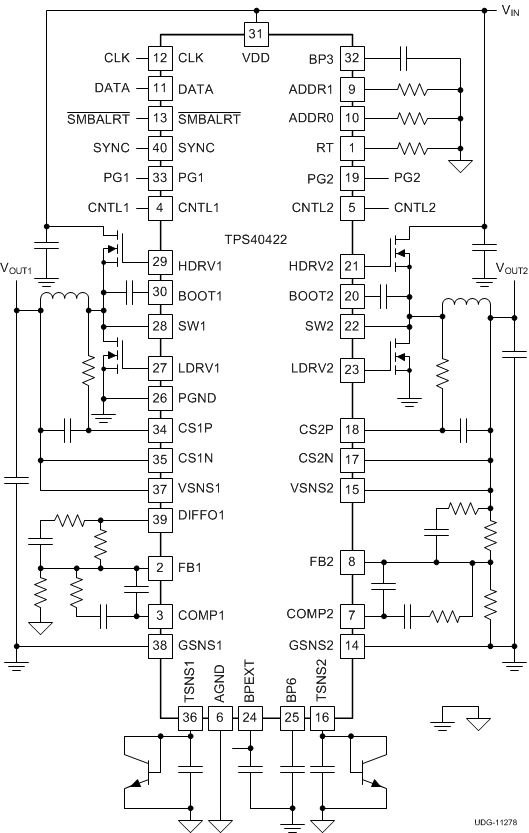

簡化版應用
