6 Pin Configuration and Functions

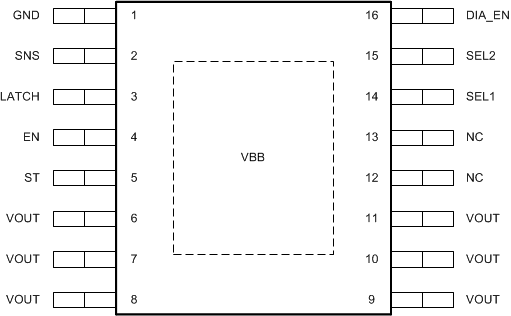

Figure 6-1 PWP Package
16-Pin HTSSOP
Top ViewTable 6-1 Pin
Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | GND | — | Device ground |
| 2 | SNS | O | Sense output |
| 3 | LATCH | I | Sets fault handling behavior (latched or auto-retry) |
| 4 | EN | I | Switch control input, active high |
| 5 | ST | O | Switch diagnostic feedback, active low |
| 6, 7, 8, 9, 10, 11 | VOUT | O | Switch output |
| 12 | NC | -- | No Connect |
| 13 | NC | -- | No Connect |
| 14 | SEL1 | I | Diagnostics Select 1 |
| 15 | SEL2 | I | Diagnostics Select 2 |
| 16 | DIA_EN | I | Diagnostic enable, active high |
| Exposed pad | VBB | I | Power supply input |
