10.2 Typical Application
This application example demonstrates how the TPS27SA08 device can be used to power resistive heater loads as in seat heaters. #SLVSDZ36903 shows a typical application where the load is a resistive seat heater. This document highlights the basics of this type of application, however for a more detailed discussion reference TI's Smart Power Switch Seat Heater Reference Design.

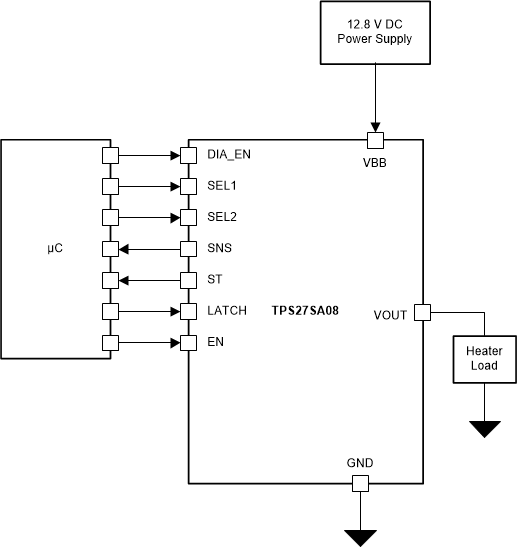

Figure 10-3 Block Diagram for Powering Heater Loads
