9.2.3 Application Curves
A.

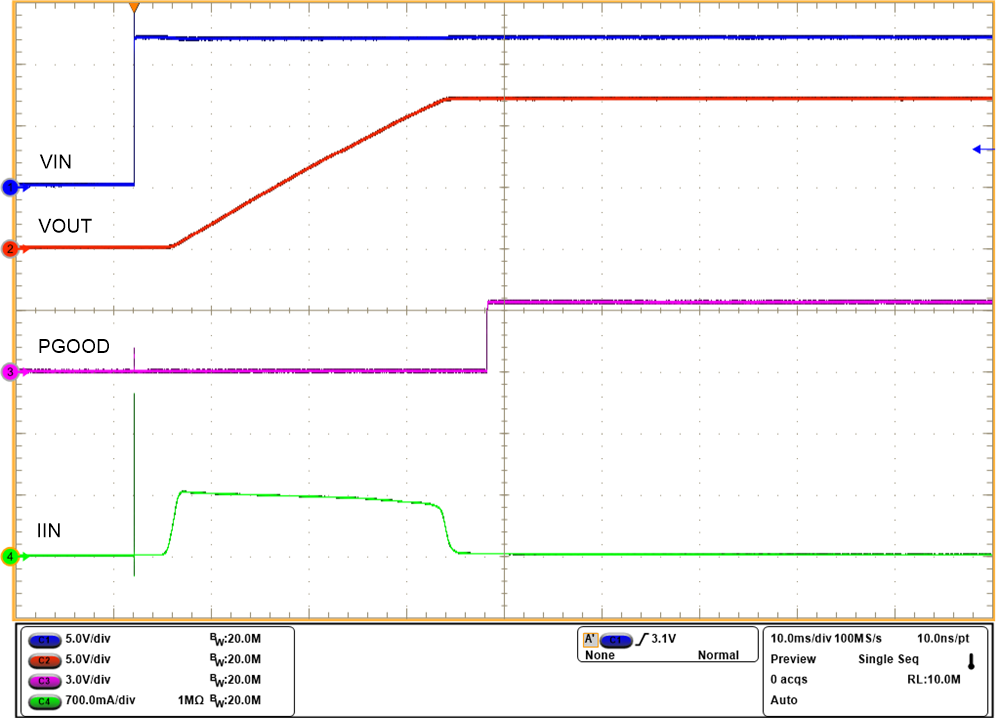

Figure 54. Hot-Plug Start-Up Without Load on Output - dVdt Limited | COUT = 1.4 mF | CdVdt = 10 nF | RL(SU) = Open |
A.

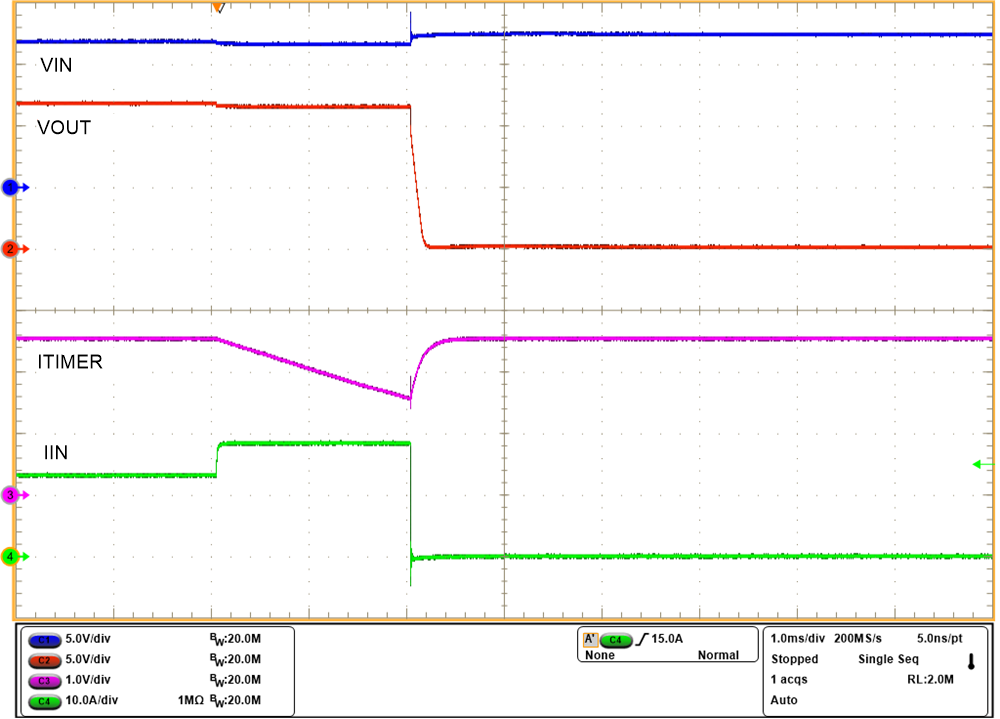

Figure 56. Circuit Breaker With Transient Overcurrent Blanking Interval of 2 ms | RILIM = 100 Ω | CITIMER = 4.7 nF
|
|
1.

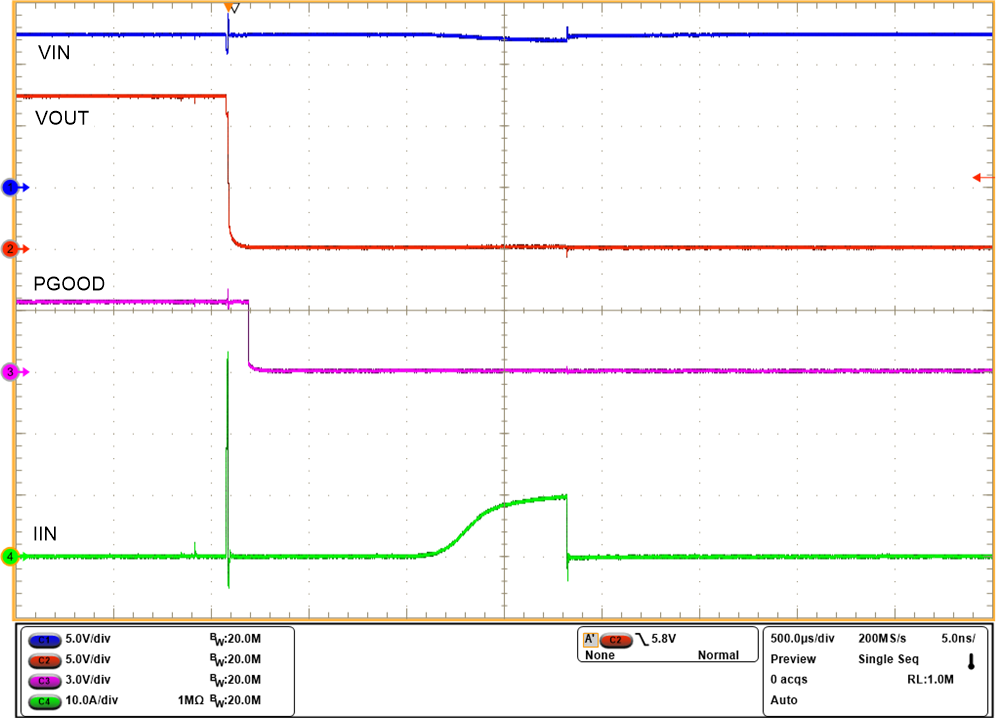

Figure 58. Output Hard Short-Circuit While ON | RILIM = 100 Ω |
A.

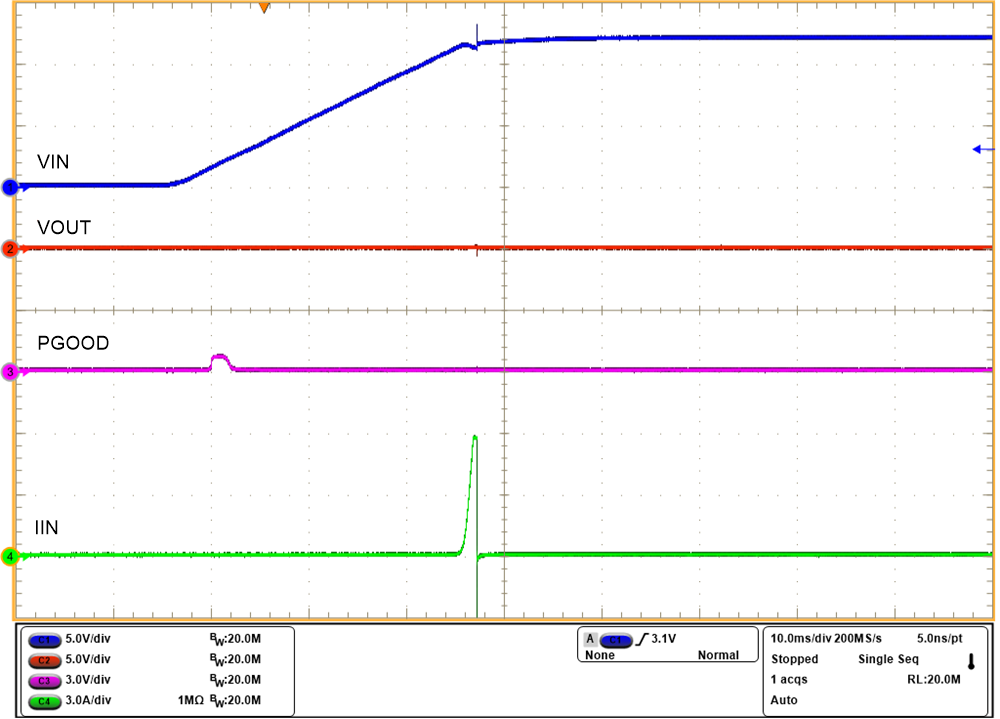

Figure 60. Power-Up With Short-Circuit on Output
A.

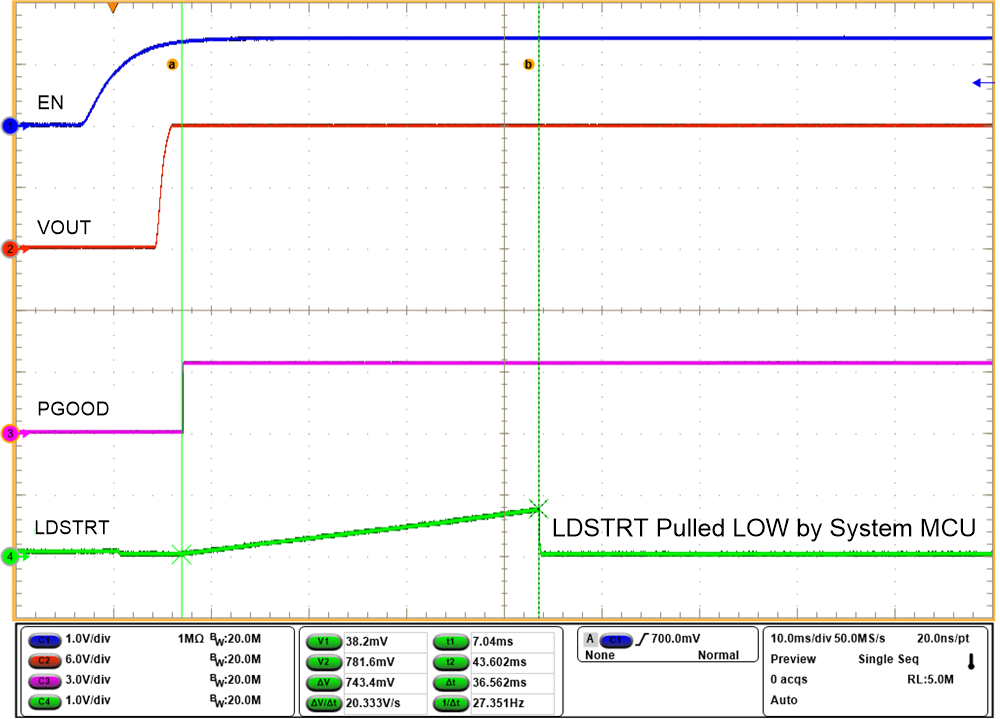

Figure 62. Successful Load Handshake (LDSTRT) | CLDSTRT = 0.1 μF |
A.

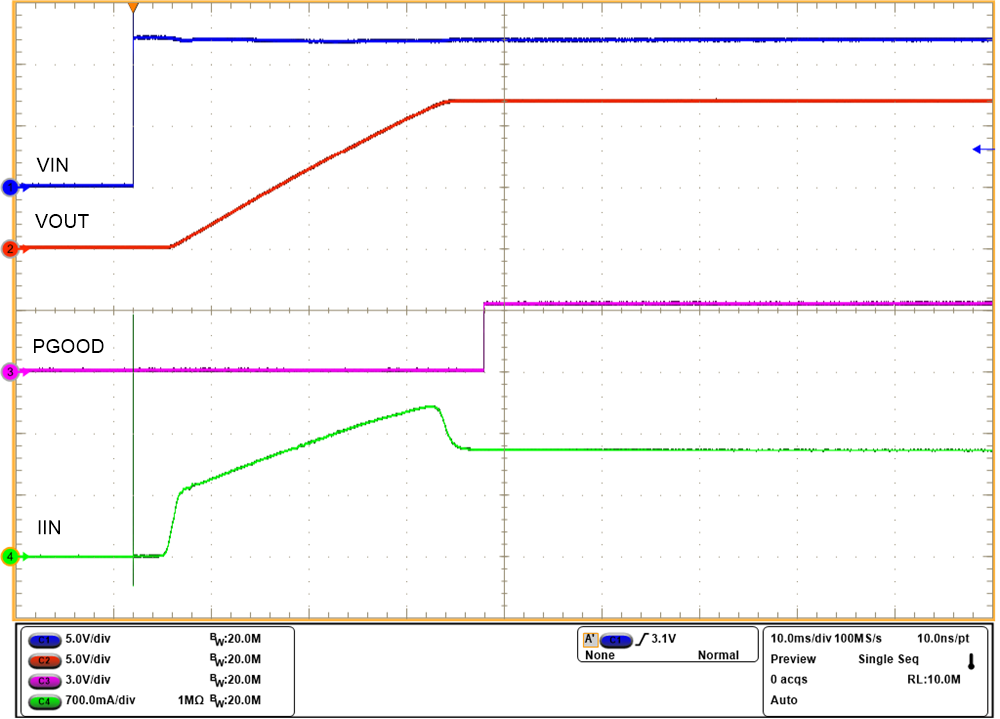

Figure 55. Hot-Plug Start-Up With Load on Output - dVdt Limited | COUT = 1.4 mF | CdVdt = 10 nF | RL(SU) = 10 Ω |
A.
Figure 57. Circuit Breaker - Auto-Retry 4 Times With Retry Delay of 100 ms | RILIM = 100 Ω | CITIMER = 4.7 nF | CRETRY_DLY = 2.2 nF,
CNRETRY = 2.2 nF |
1.

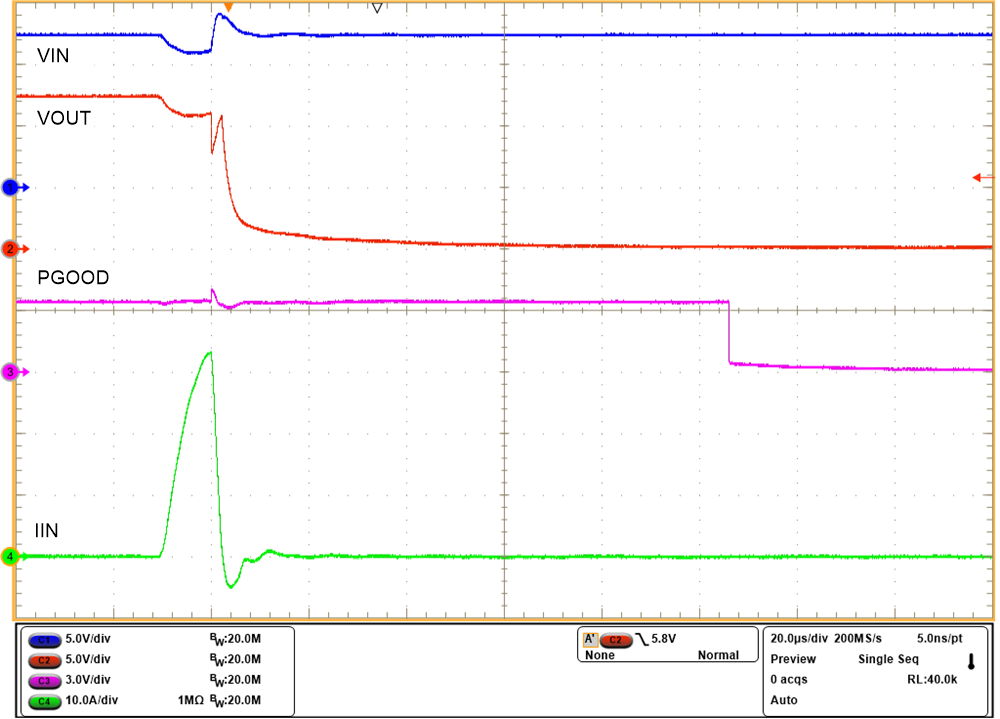

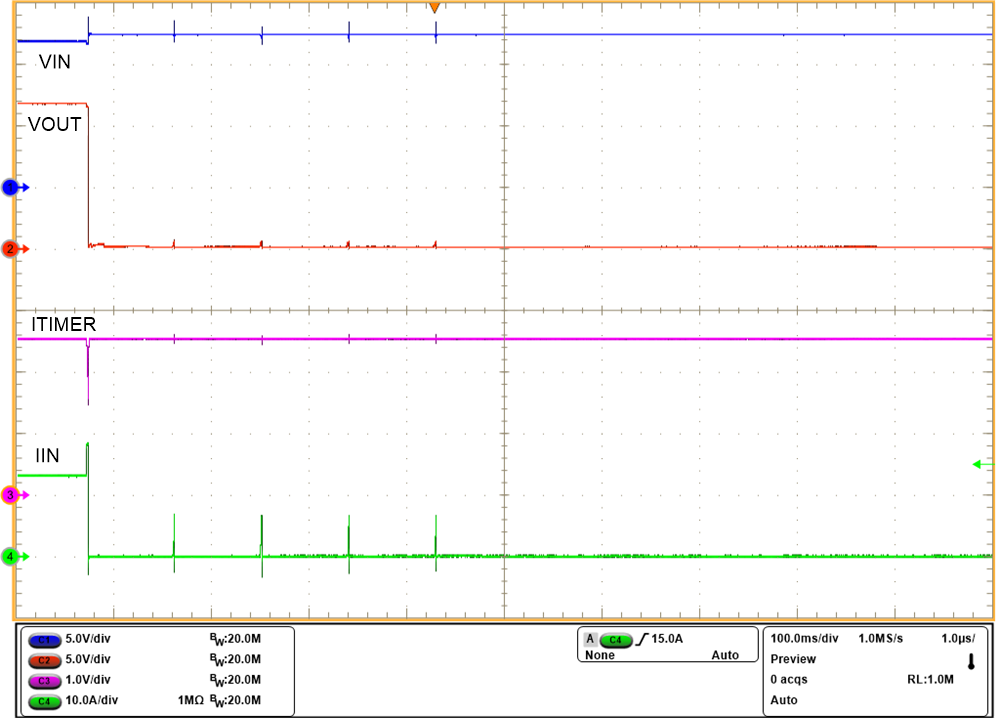

Figure 59. Output Hard Short-Circuit While ON (Zoomed In) | RILIM = 100 Ω |
1.

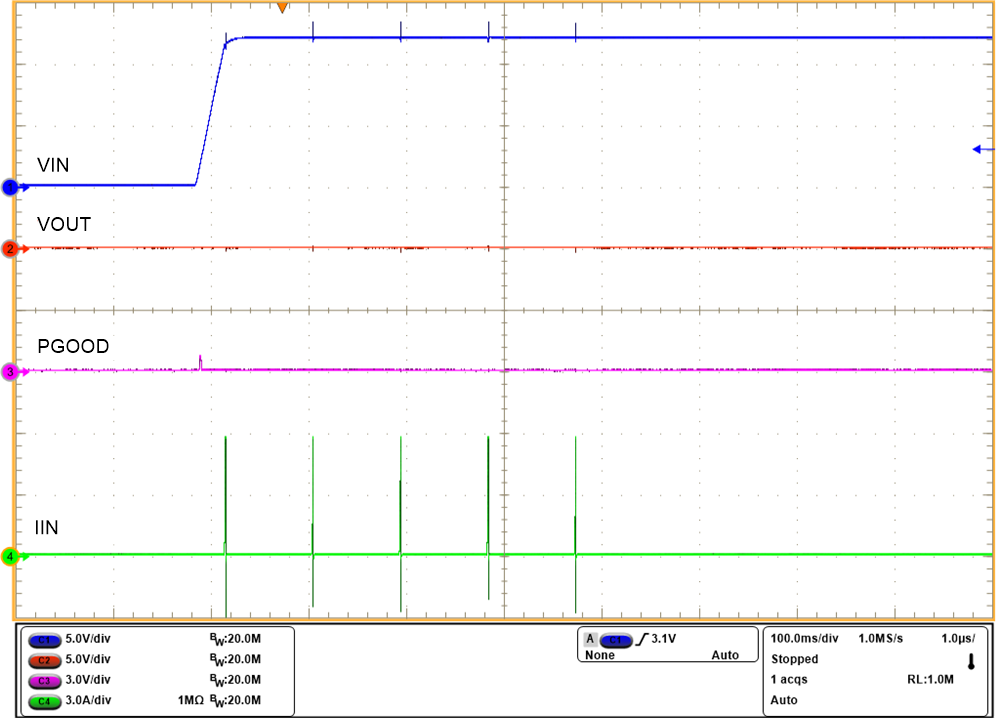

Figure 61. Power-Up With Short-Circuit on Output - Auto-Retry 4 Times With Retry Delay of 100 ms
A.

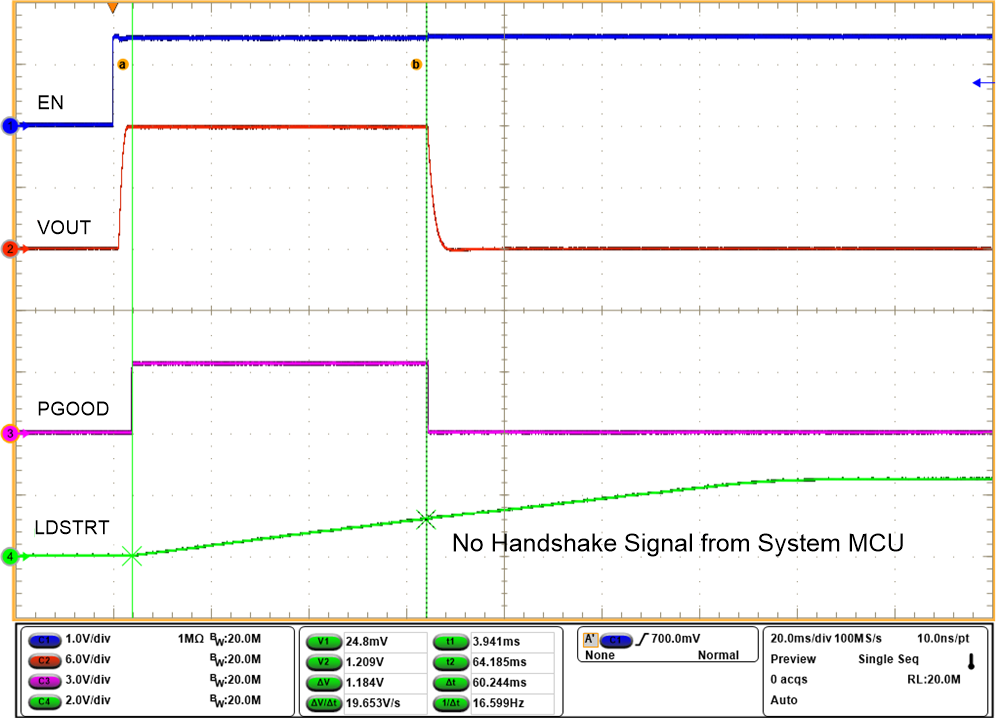

Figure 63. Unsuccessful Load Handshake (LDSTRT) | CLDSTRT = 0.1 μF |
