7.8 Typical Characteristics
A.

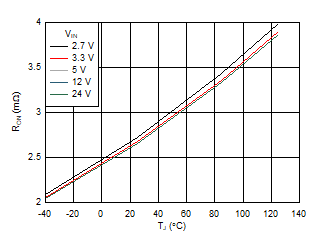

Figure 2. ON Resistance vs Temperature
A.
Figure 4. Supply OVP Threshold vs Temperature | TPS259822x Variants |
A.

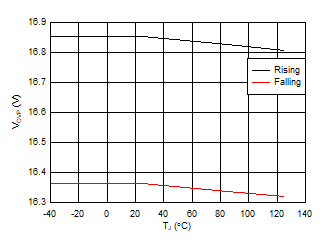

Figure 6. Supply OVP Threshold vs Temperature | TPS259824x Variants |
A.

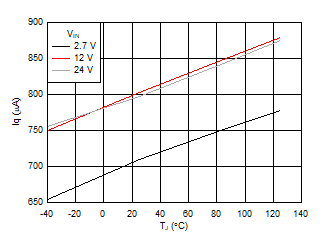

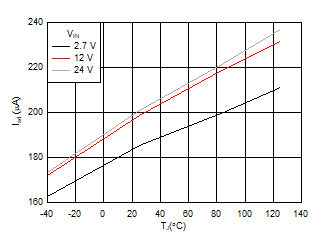

Figure 8. Quiescent Current vs Temperature | VENUVLO = 2 V, OUT = Open |
A.

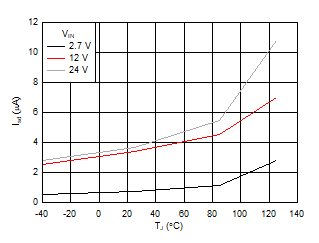

Figure 10. Shut-Down Current vs Temperature | VENUVLO = 1 V, OUT = Open |
A.

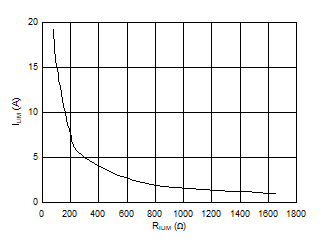

Figure 12. Output Current Limit (ILIM) vs RILIM
A.

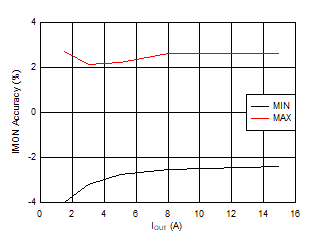

Figure 14. Output Current Monitor Gain (GIMON) Accuracy | Across Process, Voltage, Temperature Corners, Normalized to mean value of 246 μA/A |
A.

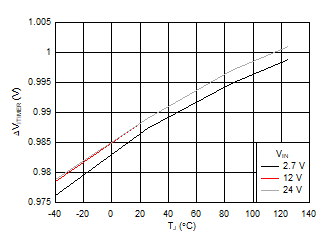

Figure 16. ITIMER Voltage Threshold Delta vs Temperature
A.

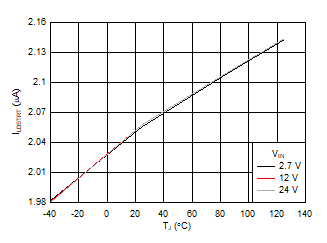

Figure 18. LDSTRT Charging Current vs Temperature
A.

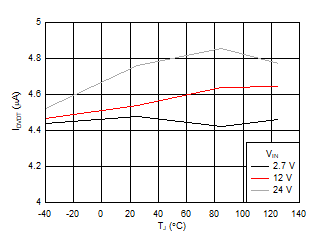

Figure 20. DVDT Charging Current vs Temperature
A.

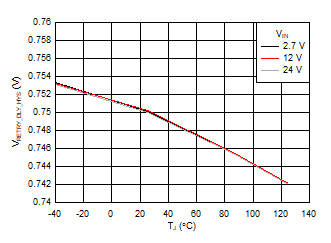

Figure 22. RETRY_DLY Oscillator Hysteresis vs Temperature
A.

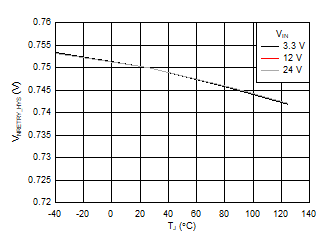

Figure 24. NRETRY Oscillator Hysteresis vs Temperature
A.

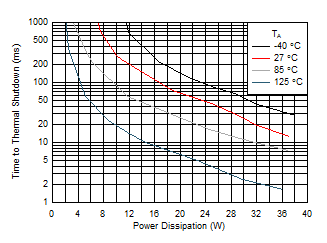

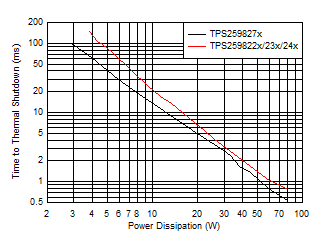

Figure 26. Thermal Shutdown Plot - Inrush/Overload
A.

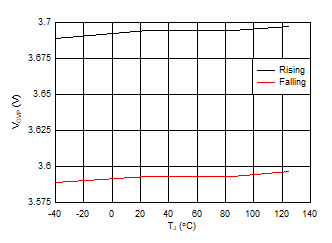

Figure 3. Supply UVP Threshold vs Temperature
A.

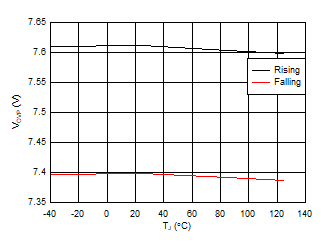

Figure 5. Supply OVP Threshold vs Temperature | TPS259823x Variants |
A.

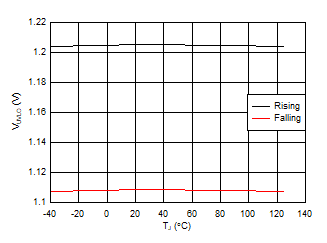

Figure 7. EN/UVLO Threshold vs Temperature
A.

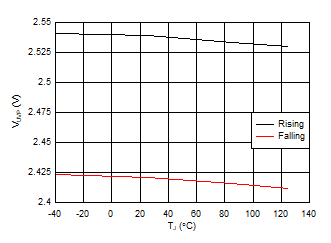

Figure 9. EN/UVLO Falling Threshold for Lowest Current Consumption
A.
Figure 11. Deep Shut-Down Current vs Temperature | VENUVLO = 0 V, OUT = Open |
A.

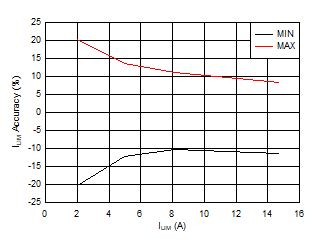

Figure 13. Output Current Limit (ILIM) Accuracy | Across Process, Voltage, Temperature Corners |
A.

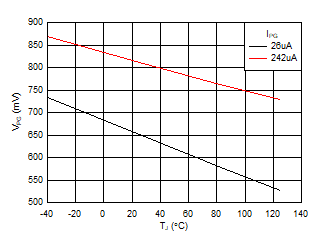

Figure 15. Power Good Output Voltage (De-asserted State) vs Temperature | VIN = 0 V |
A.

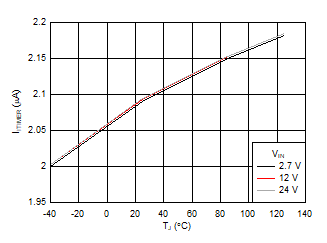

Figure 17. ITIMER Discharge Current vs Temperature
A.

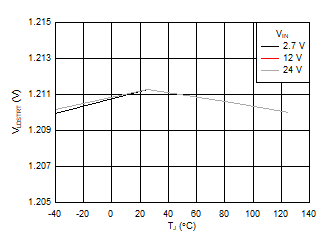

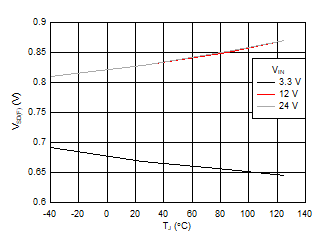

Figure 19. LDSTRT Threshold Voltage vs Temperature
A.

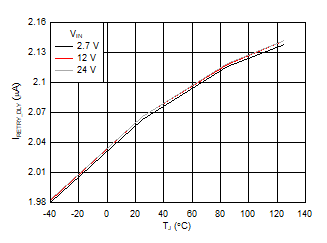

Figure 21. RETRY_DLY Bias Current vs Temperature
A.

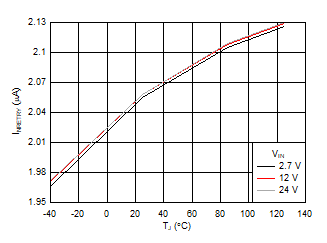

Figure 23. NRETRY Bias Current vs Temperature
A.
Figure 25. Thermal Shutdown Plot - Steady State
A.

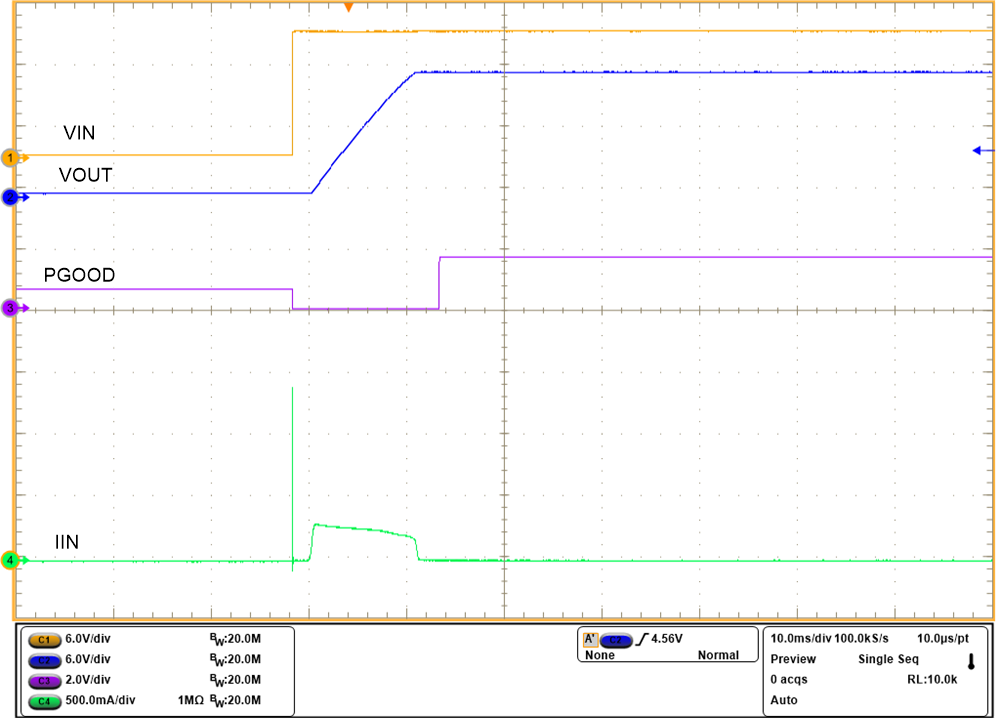

Figure 27. Hotplug | CIN = 1 μF | COUT = 220 μF | CdVdt = 3.3 nF |
A.

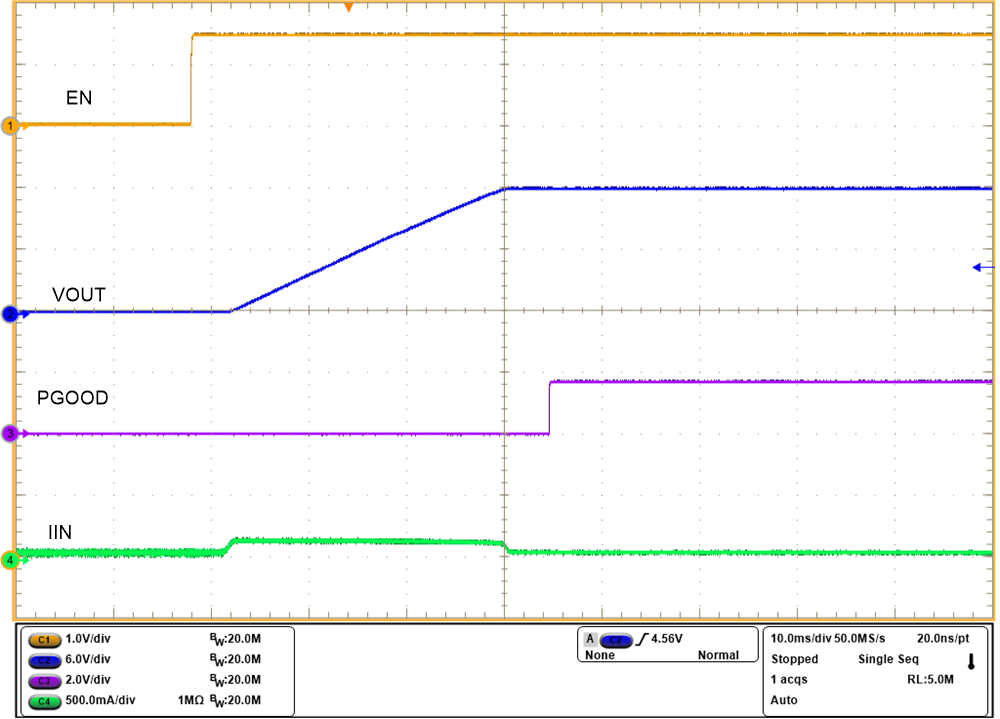

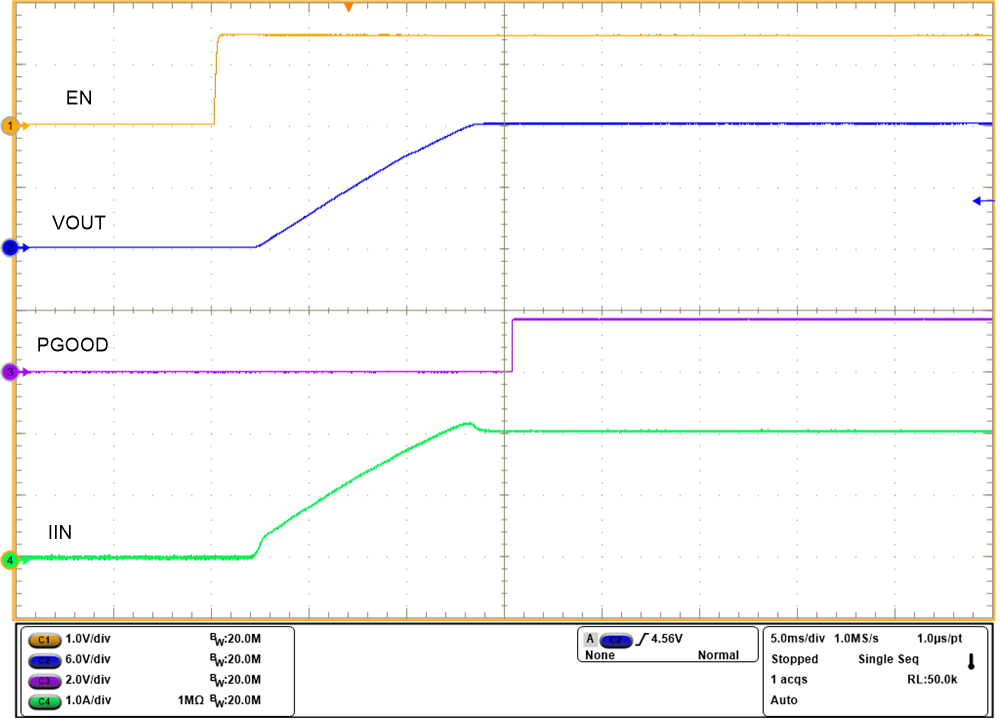

Figure 29. Startup With EN Into Resistive Load - dVdt Limited | COUT = 220 μF | CdVdt = 3.3 nF | ROUT = 6 Ω |
A.

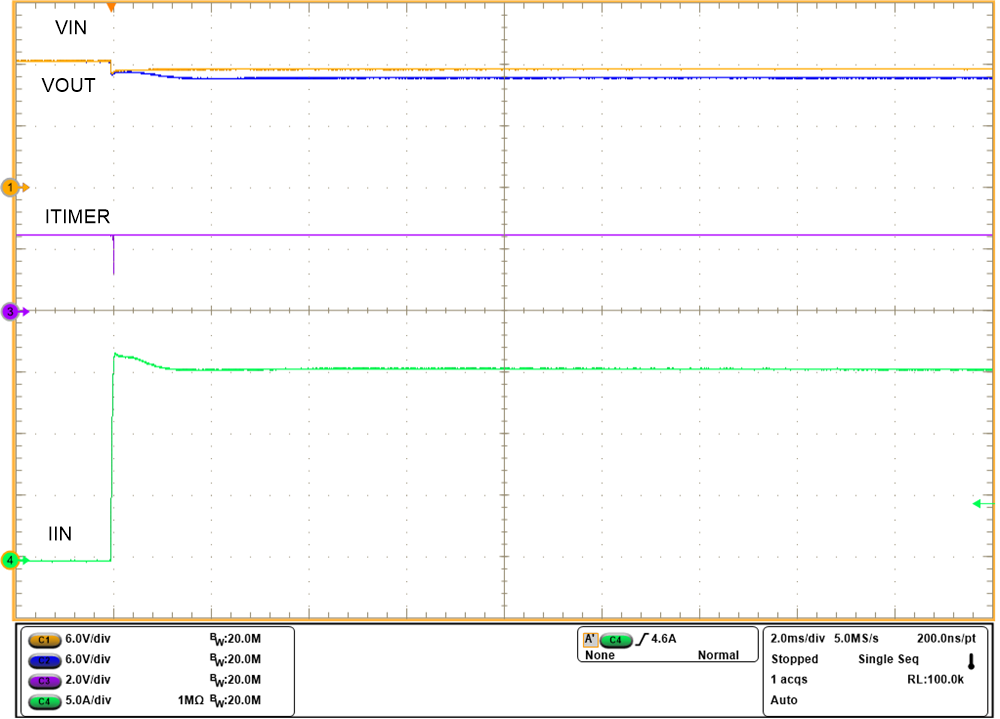

Figure 31. Current Limit Without Transient Overcurrent Blanking | RILIM = 100 Ω | CITIMER = Open |
A.

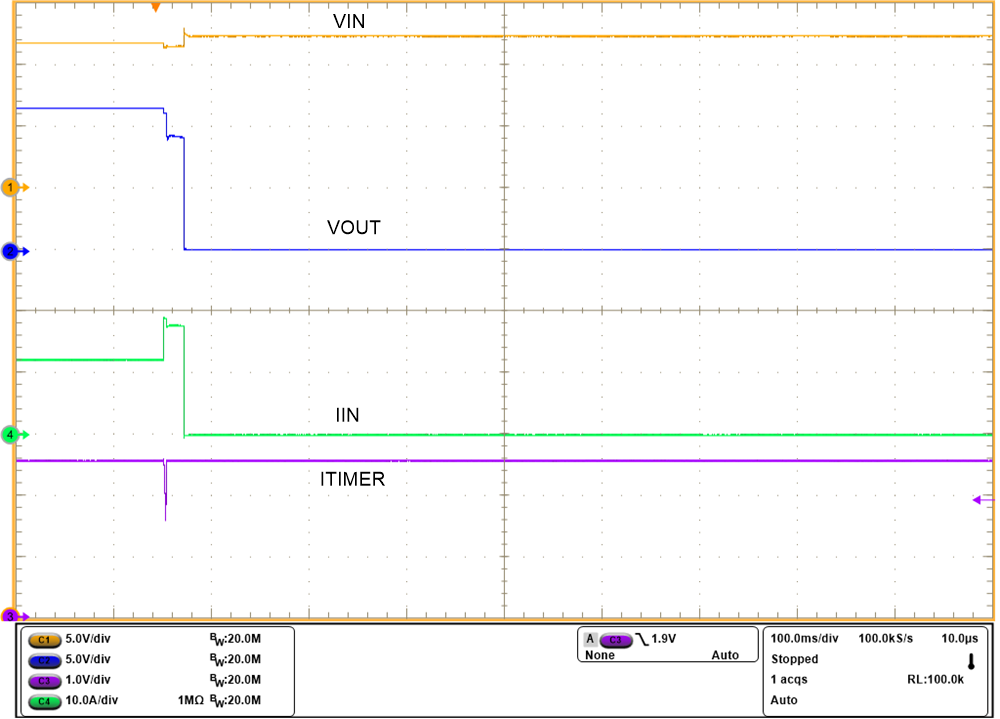

Figure 33. Current Limit Followed By Thermal Shutdown - Latch-off | RILIM = 100 Ω | CITIMER = 4.7 nF | RETRY_DLY =
Short to GND |
A.
Figure 35. Circuit Breaker With Transient Overcurrent Blanking | RILIM = 100 Ω | CITIMER = 4.7 nF | |
A.

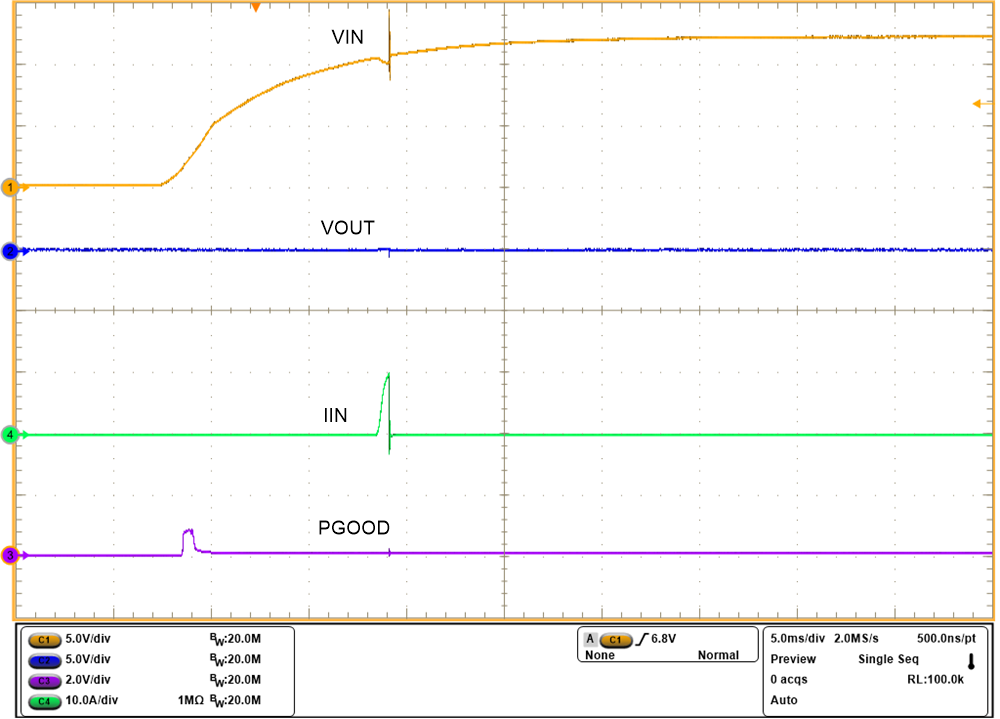

Figure 37. Power Up Into Output Short-Circuit | RILIM = 100 Ω | ||
A.

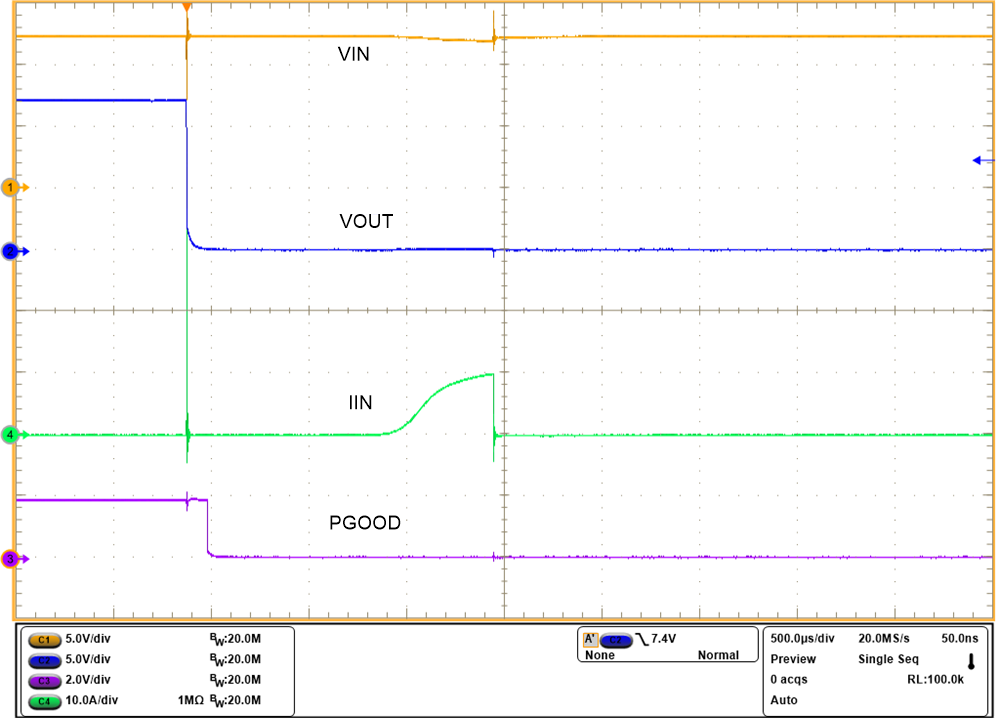

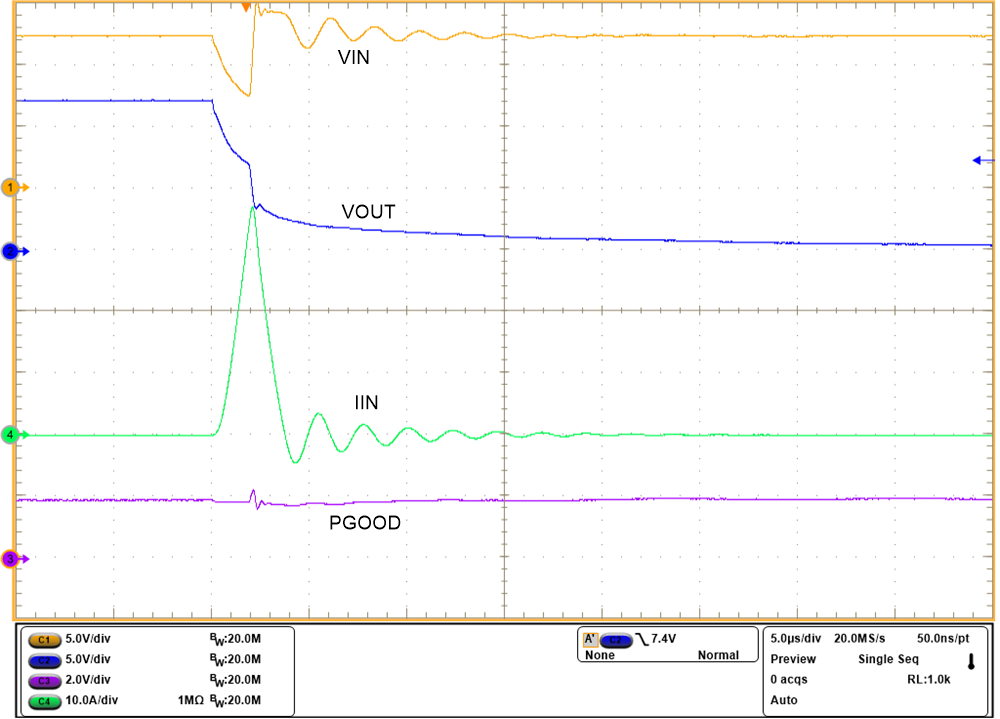

Figure 39. Output Hard Short-Circuit While ON (Zoomed In) | RILIM = 100 Ω |
A.

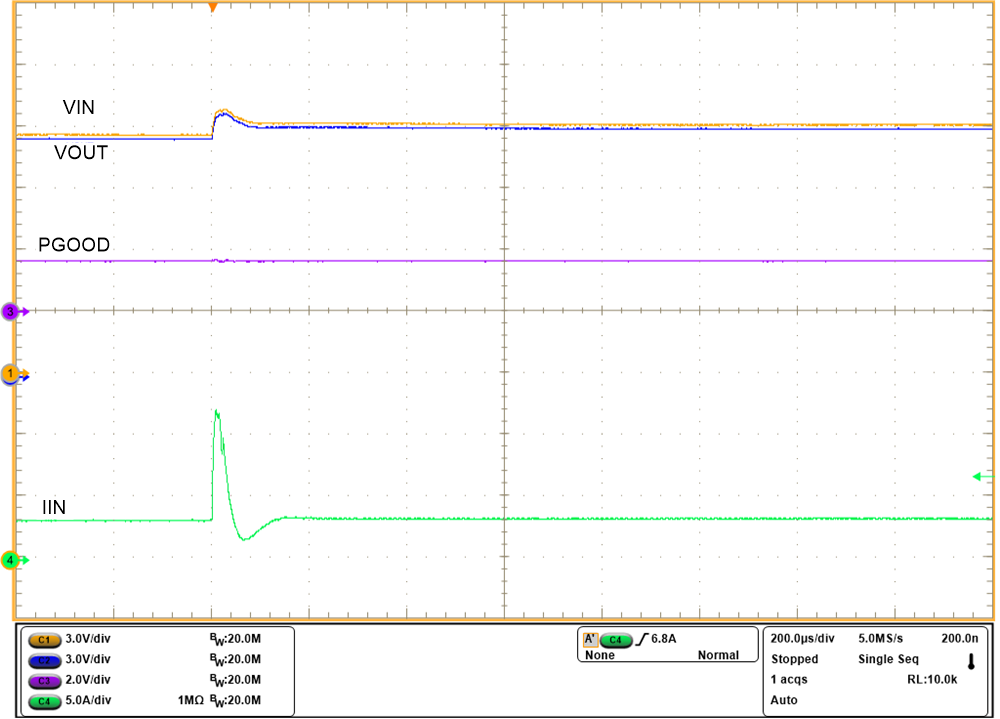

Figure 41. Supply Line Transient Immunity - Adjacent Load Hot Unplug | RILIM = 511 Ω |
A.
Figure 28. Startup With EN - dVdt Limited | COUT = 220 μF | CdVdt = 10 nF | ROUT = Open |
A.

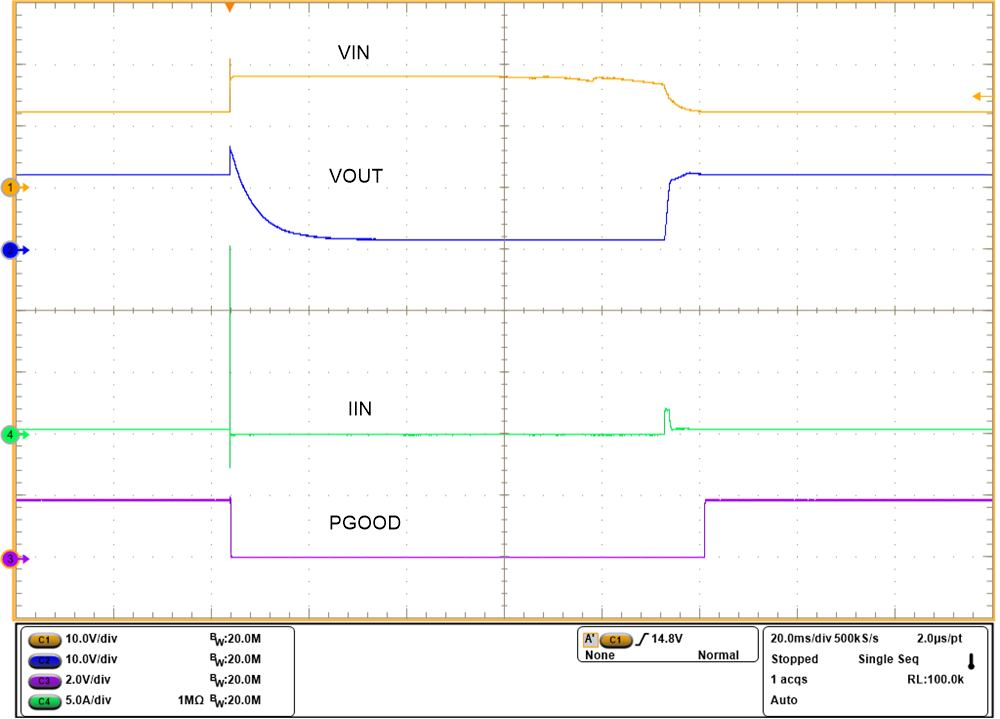

Figure 30. Overvoltage Protection | TPS259824x (16.7-V OVP variant) |
A.

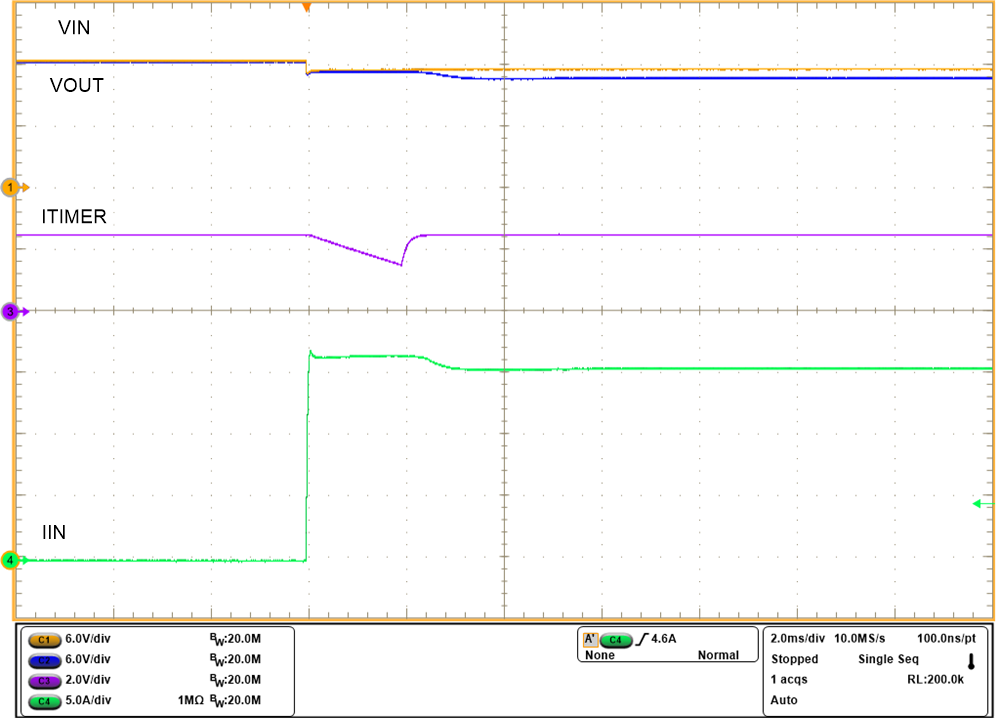

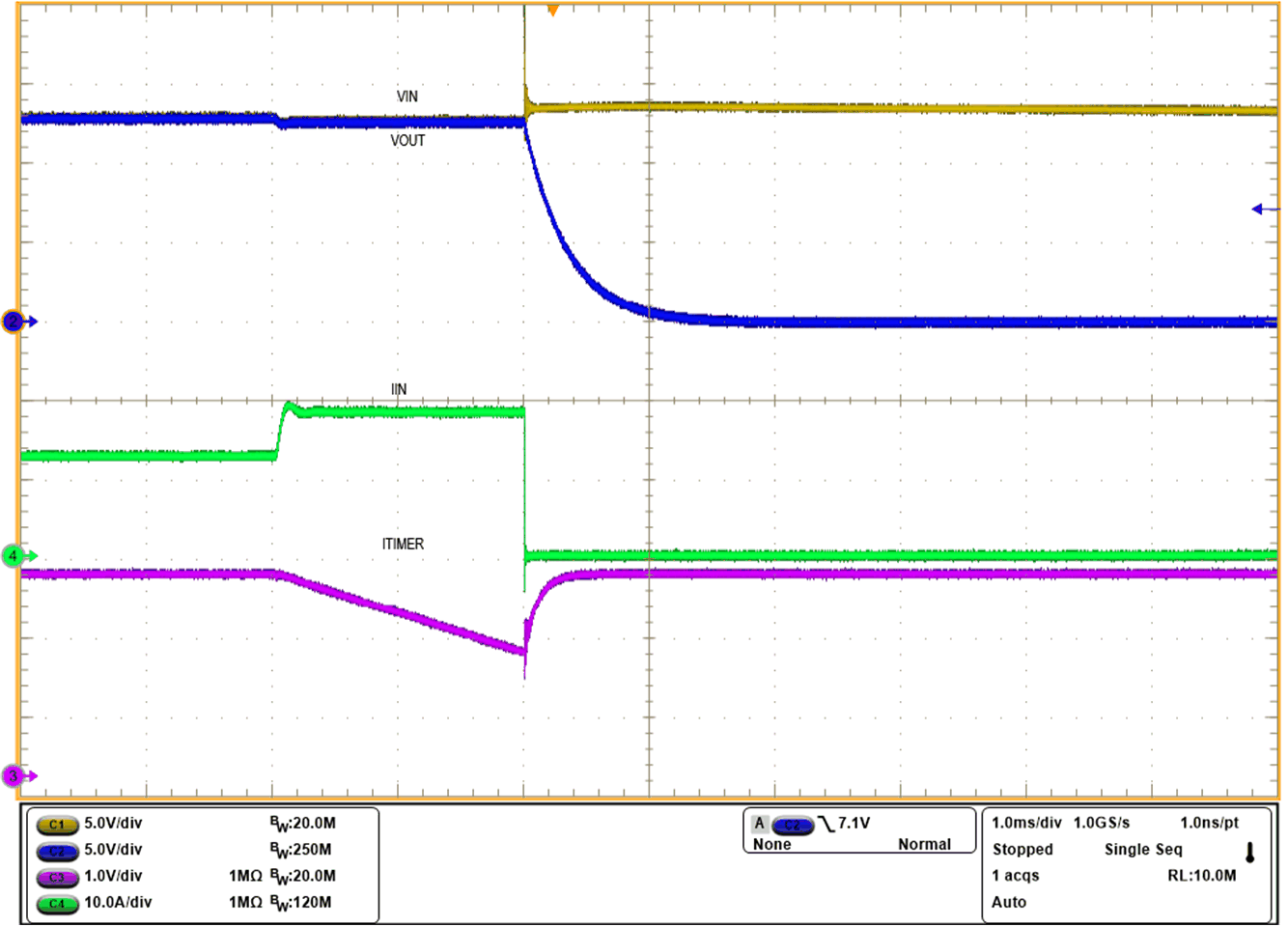

Figure 32. Current Limit With Transient Overcurrent Blanking | RILIM = 100 Ω | CITIMER = 4.7 nF |
A.

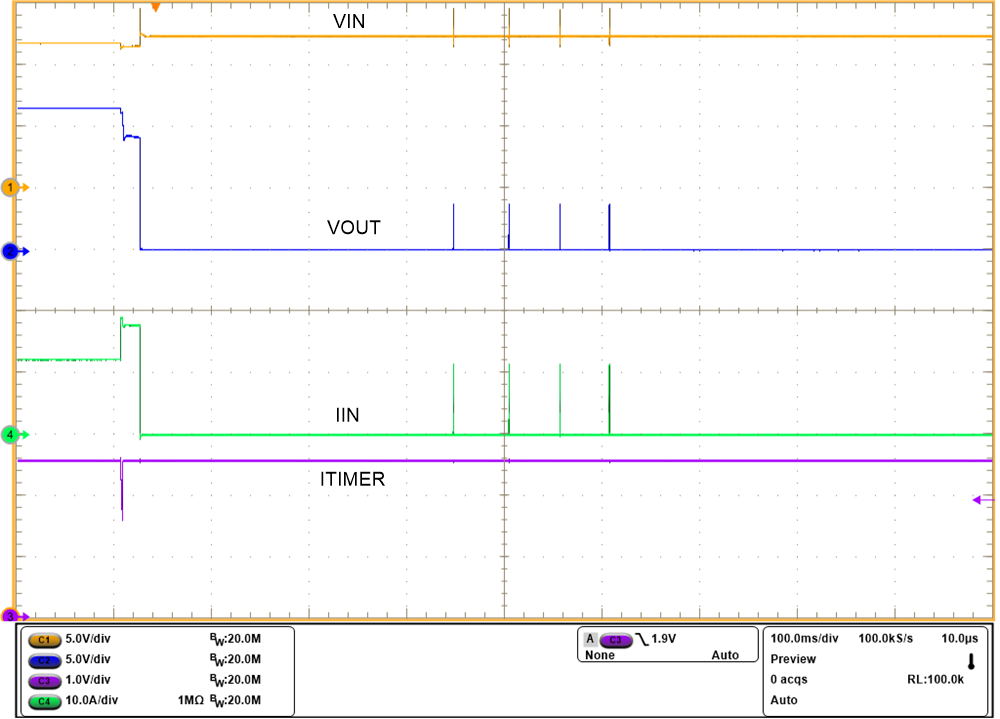

Figure 34. Current Limit Followed By Thermal Shutdown - Auto-Retry | RILIM = 100 Ω | CITIMER = 4.7 nF | CRETRY_DLY = 1 nF,
CNRETRY = Open |
A.

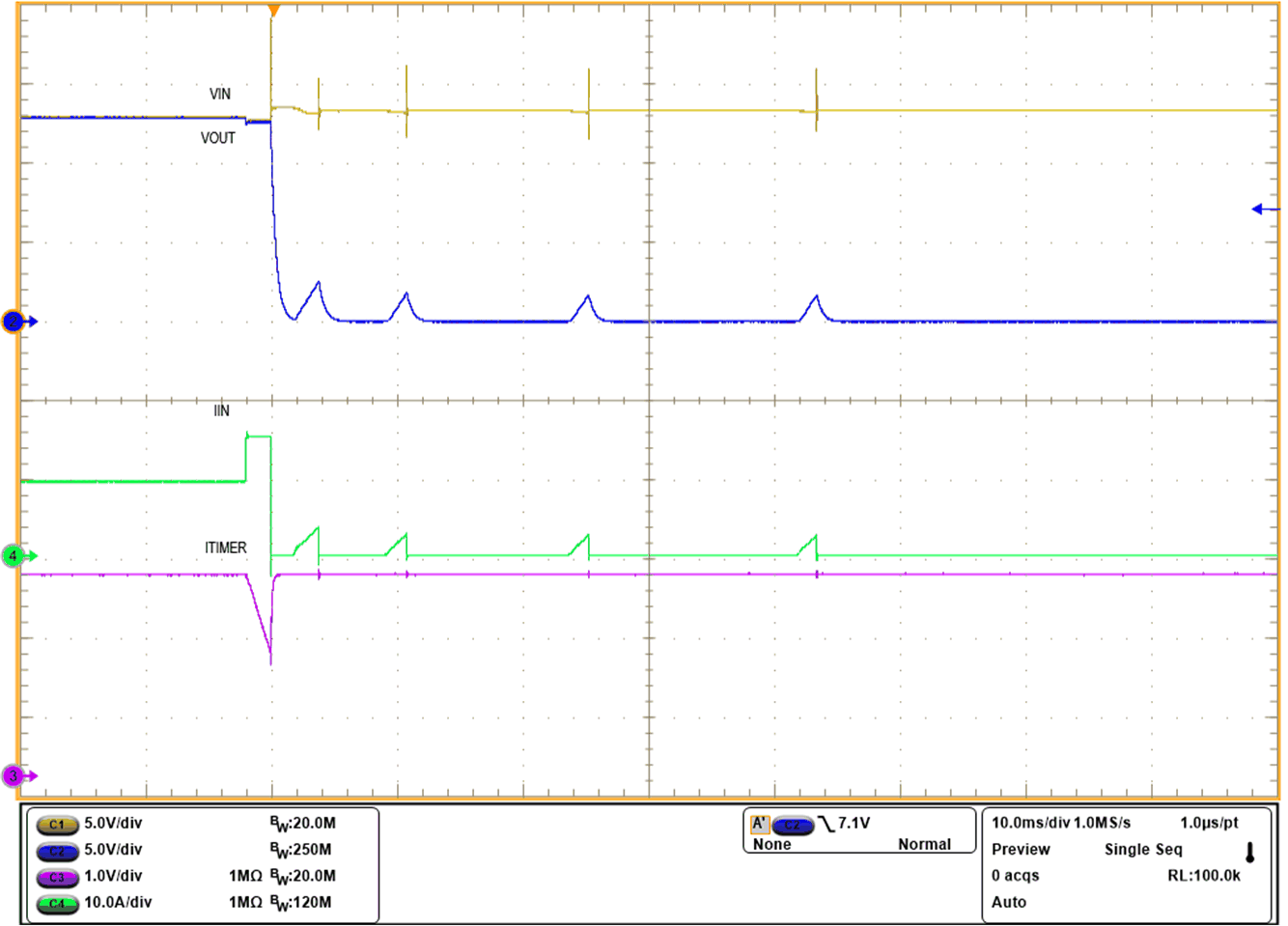

Figure 36. Circuit Breaker - Auto-Retry | RILIM = 100 Ω | CITIMER = 4.7 nF | CRETRY_DLY = Open,
CNRETRY = Open |
A.
Figure 38. Output Hard Short-Circuit While ON | RILIM = 100 Ω | ||
A.

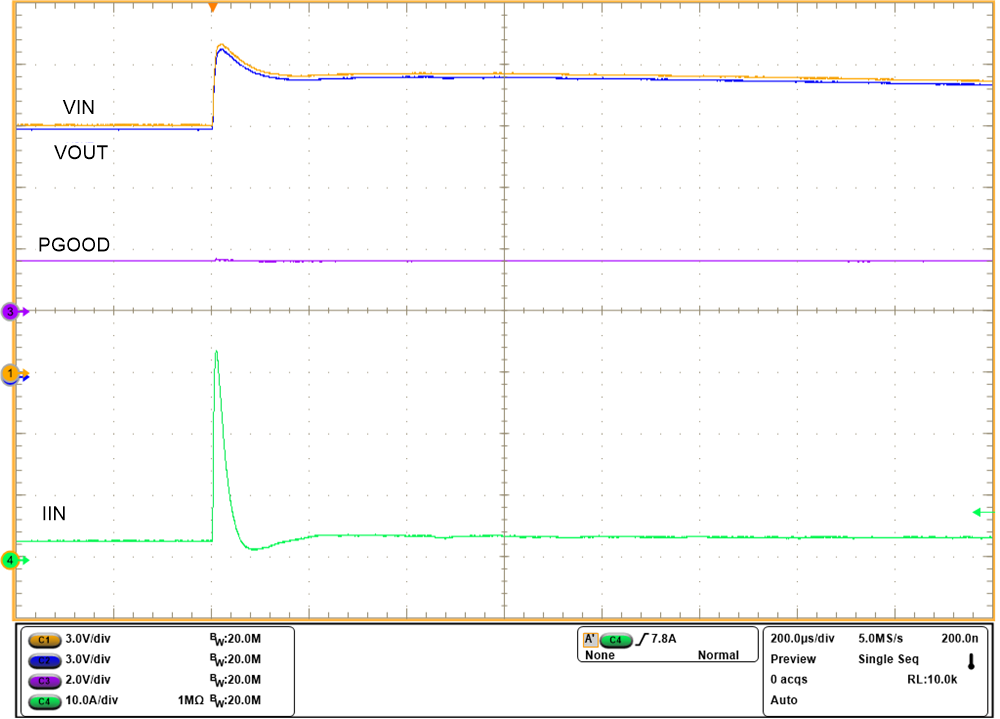

Figure 40. Supply Line Transient Immunity - Input Voltage Step | RILIM = 332 Ω |
