9.3.1.6 Fault Event – Timing Diagrams
All timing diagrams assume that the SEL1 pin is low.
The LATCH, DIA_EN, and EN pins are controlled by the user. The timing diagrams represent a possible use-case.

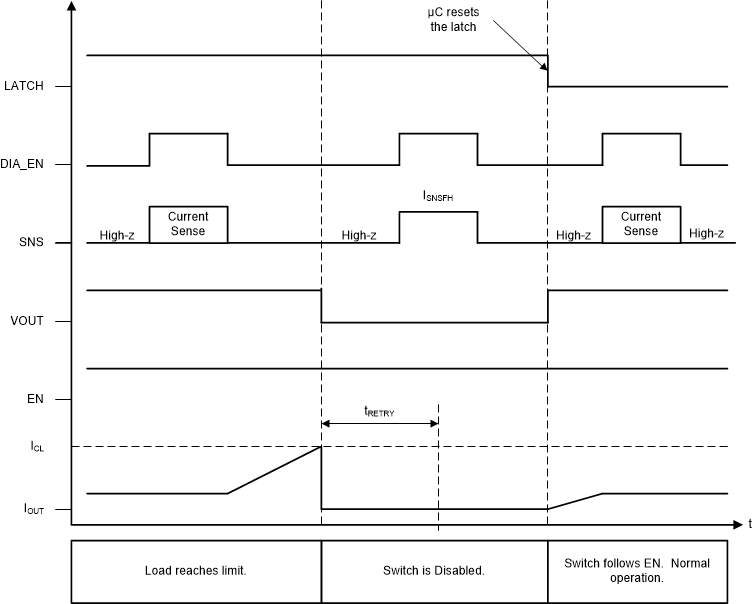

Figure 9-6 shows the immediate current limit switch off behavior. The diagram also illustrates the retry behavior. As shown, the switch will remain latched off until the LATCH pin is low.

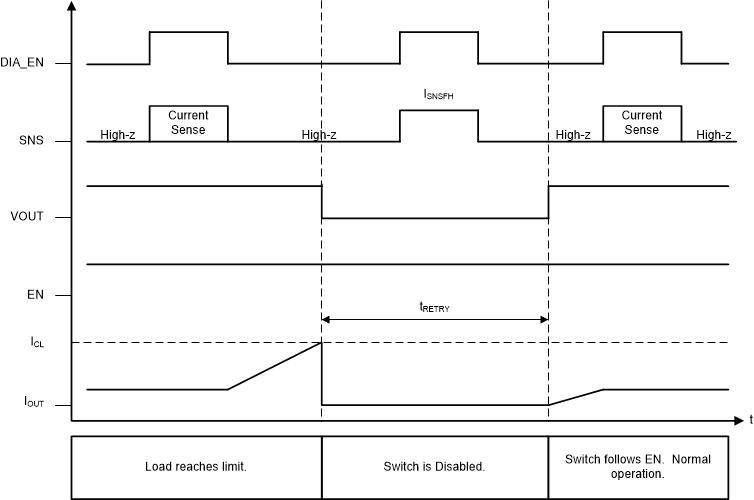

Figure 9-6 Current Limit – Version A and B - Latched BehaviorFigure 9-7 shows the immediate current limit switch off behavior. In this example, LATCH is tied to GND; hence, the switch will retry after the fault is cleared and tRETRY has expired.

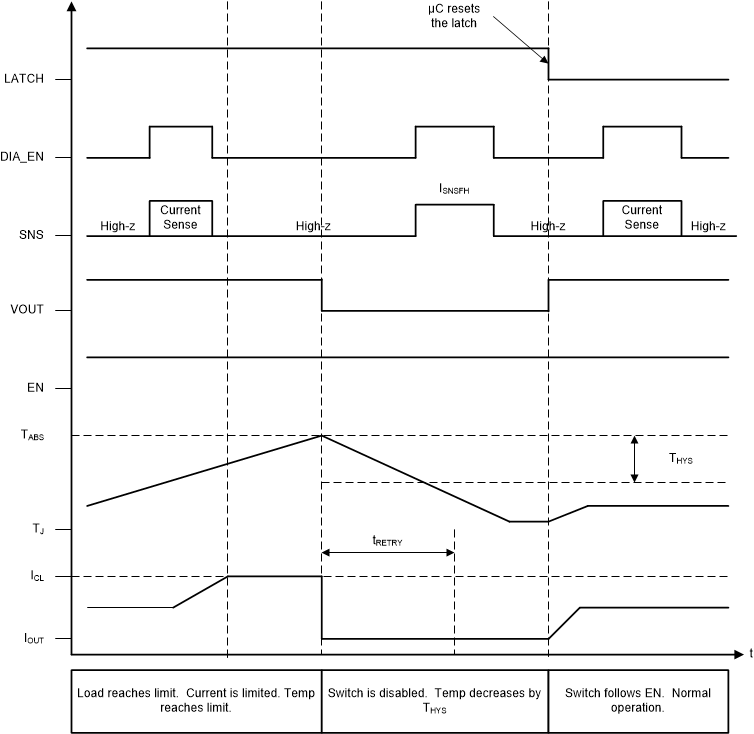

Figure 9-7 Current Limit - Version A and B - LATCH = 0Figure 9-8 shows the active current behavior of version C. In version C, the switch will not shutdown until thermal shutdown is reached.
Figure 9-8 Current

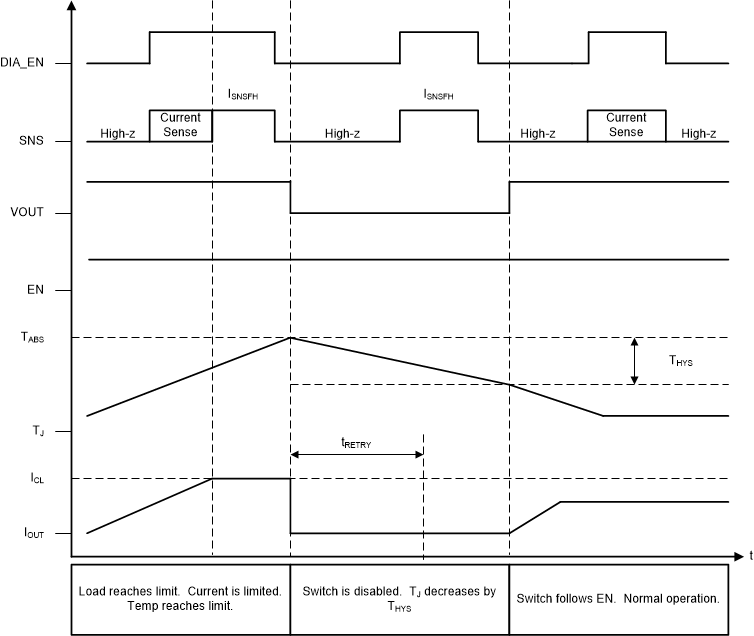

Limit – Version C - Latched BehaviorFigure 9-9 shows the active current behavior of version C. The switch will not shutdown until thermal shutdown is tripped. In this example, LATCH is tied to GND.
Figure 9-9 Current

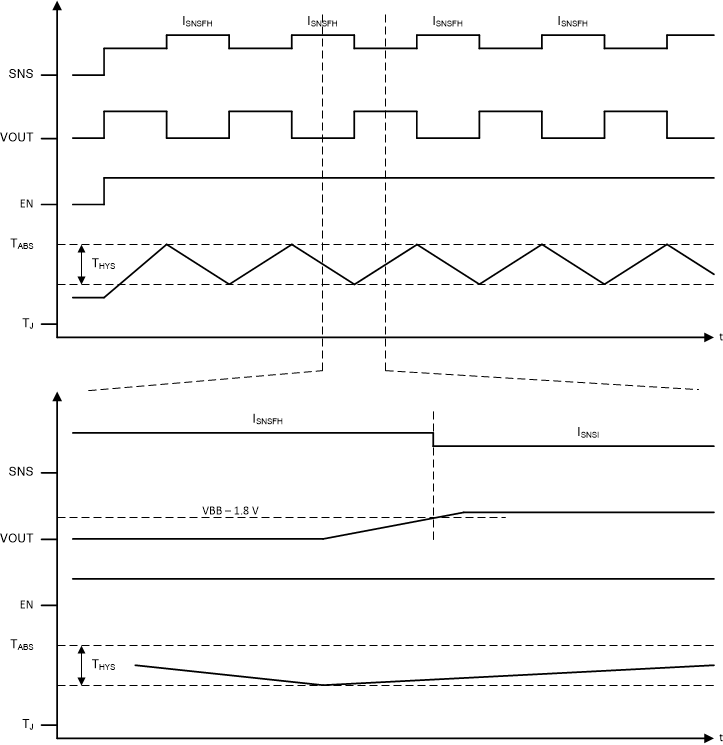

Limit – Version C - LATCH = 0When the switch retries after a shutdown event, the SNS fault indication will remain until VOUT has risen to VBB – 1.8 V. After VOUT has risen, the SNS fault indication is reset and current sensing is available. If there is a short-to-ground and VOUT is not able to rise, the SNS fault indication will remain indefinitely. Figure 9-10 illustrates auto-retry behavior and provides a zoomed-in view of the fault indication during retry.
Figure 9-10 assumes that tRETRY has expired by the time that TJ reaches the hysteresis threshold.
LATCH = 0 V and DIA_EN = 5 V
Figure 9-10 Fault Indication During Retry
