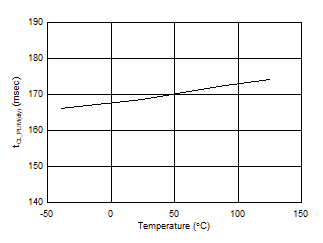

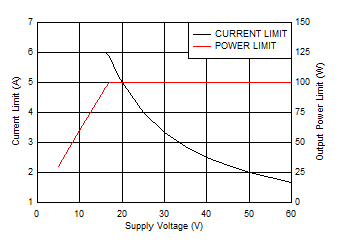

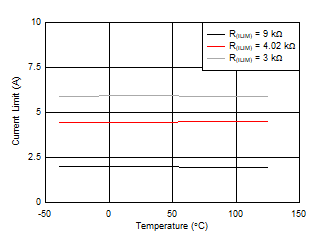

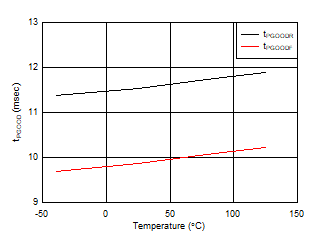

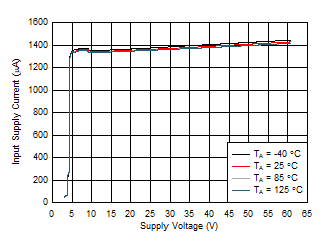

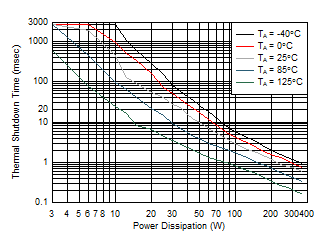

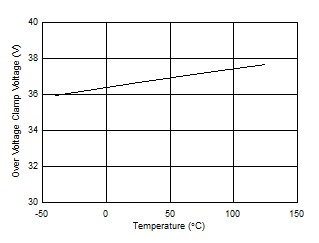

7.7 Typical Characteristics
–40°C ≤ TA = TJ ≤ +125°C, V(IN) = V(P_IN) = 24 V, V( SHDN) = 2 V, R(ILIM) = 30 kΩ, IMON = PGOOD = FLT = OPEN, C(OUT) = 1 μF, C(dVdT) = OPEN (unless stated otherwise)

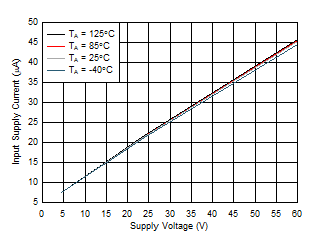

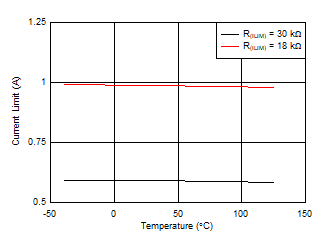

A.

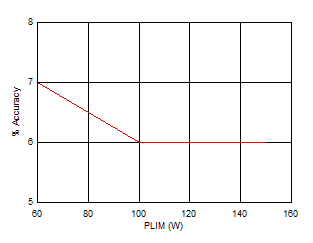

Figure 7-7 Output Power Limiting Accuracy vs PLIM
| Taken on VQFN device on EVM Board |
| TPS16632 |
| TPS16632 | R(PLIM) = 100 kΩ | R(ILIM) = 3 kΩ |
A.

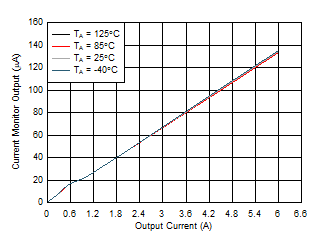

Figure 7-10 IMON
Gain Accuracy at Low Output Current Levels
