ZHCSEN2A November 2015 – February 2016 TPD4E02B04
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 IEC 61000-4-2 ESD Protection
- 7.3.2 IEC 61000-4-4 EFT Protection
- 7.3.3 IEC 61000-4-5 Surge Protection
- 7.3.4 IO Capacitance
- 7.3.5 DC Breakdown Voltage
- 7.3.6 Ultra Low Leakage Current
- 7.3.7 Low ESD Clamping Voltage
- 7.3.8 Supports High Speed Interfaces
- 7.3.9 Industrial Temperature Range
- 7.3.10 Easy Flow-Through Routing Package
- 7.4 Device Functional Modes
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息

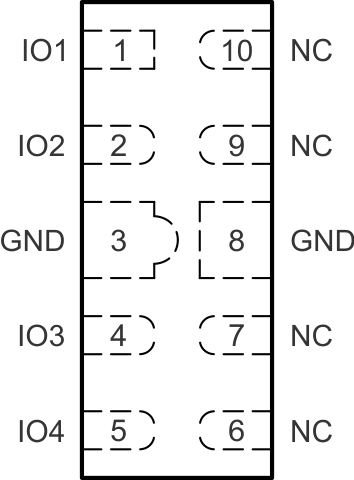

5 Pin Configuration and Functions
DQA Package
10-Pin USON
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| GND | 3 | Ground | Ground. Connect to ground. |
| GND | 8 | Ground | |
| IO1 | 1 | I/O | ESD Protected Channel |
| IO2 | 2 | ||
| IO3 | 4 | ||
| IO4 | 5 | ||
| NC | 6 | NC | Not Connected; Used for optional straight-through routing. Can be left floating or grounded. |
| NC | 7 | ||
| NC | 9 | ||
| NC | 10 | ||
