ZHCS821G February 2012 – August 2024 TPD1E10B06
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- DPY|2
訂購信息
4 Pin Configuration and Functions

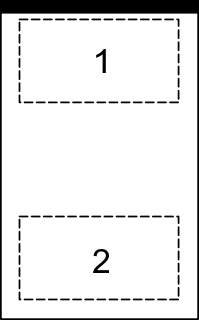

Figure 4-1 DPY Package2-Pin X1SON
Top View

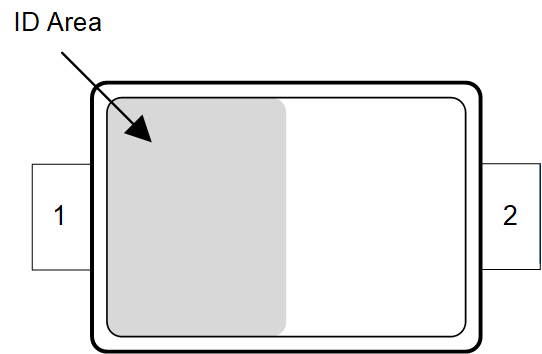

Figure 4-2 DYA Package2-Pin SOD-523
Top View
Table 4-1 Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| 1 | I/O | ESD Protected I/O. Connect other pin ground. | |
| 2 | |||
