9.2.1.3 Application Curves

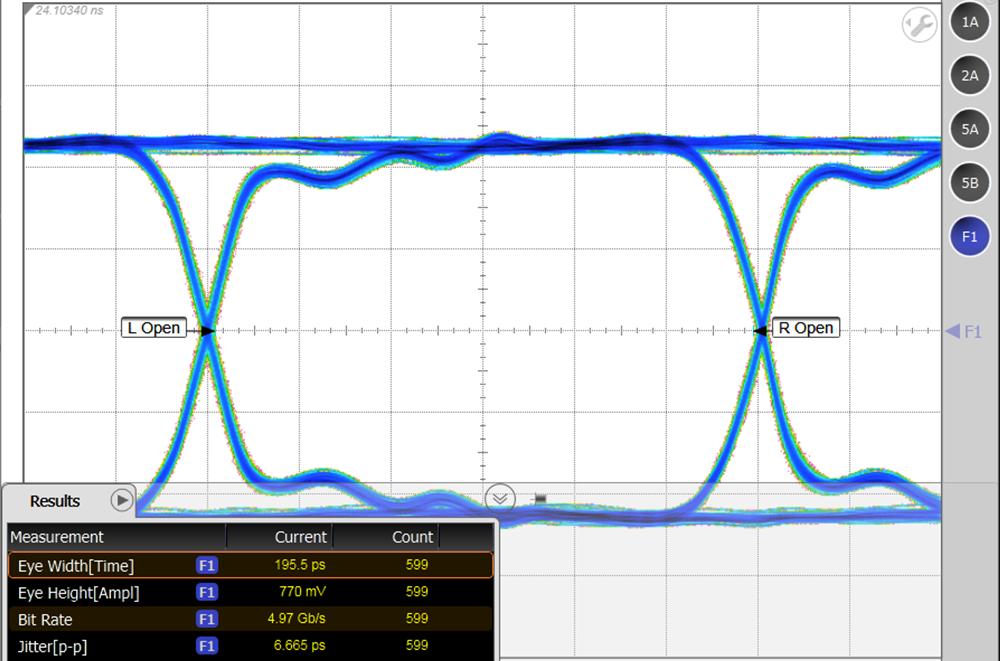

Figure 9-3 5
Gbps PRBS-7 Signals Through Calibration Traces in TI Evaluation
Board

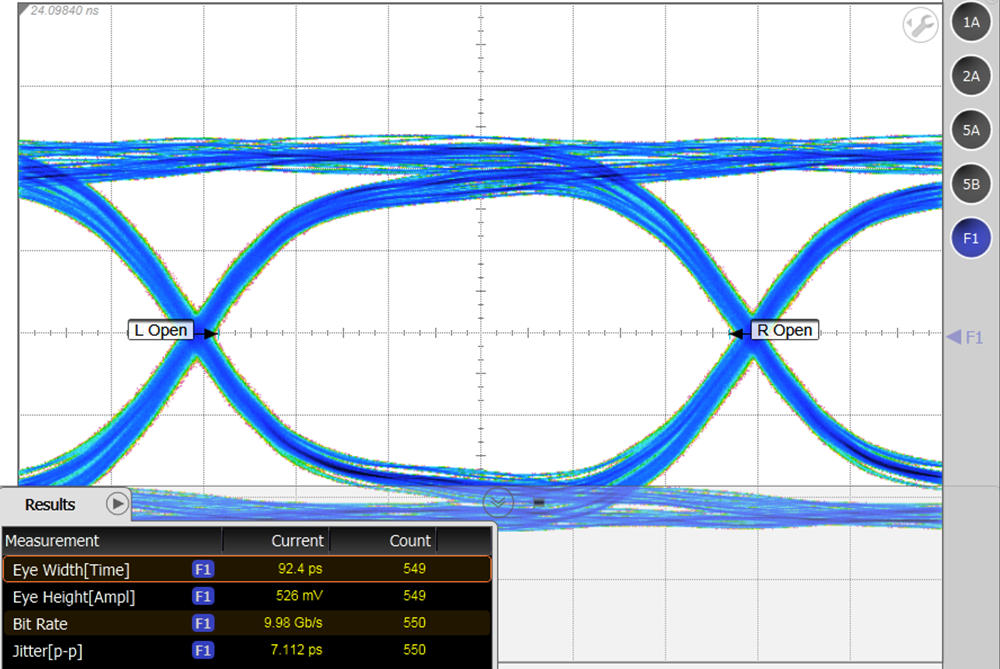

Figure 9-5 10
Gbps PRBS-7 Signals Through Calibration Traces in TI Evaluation
Board

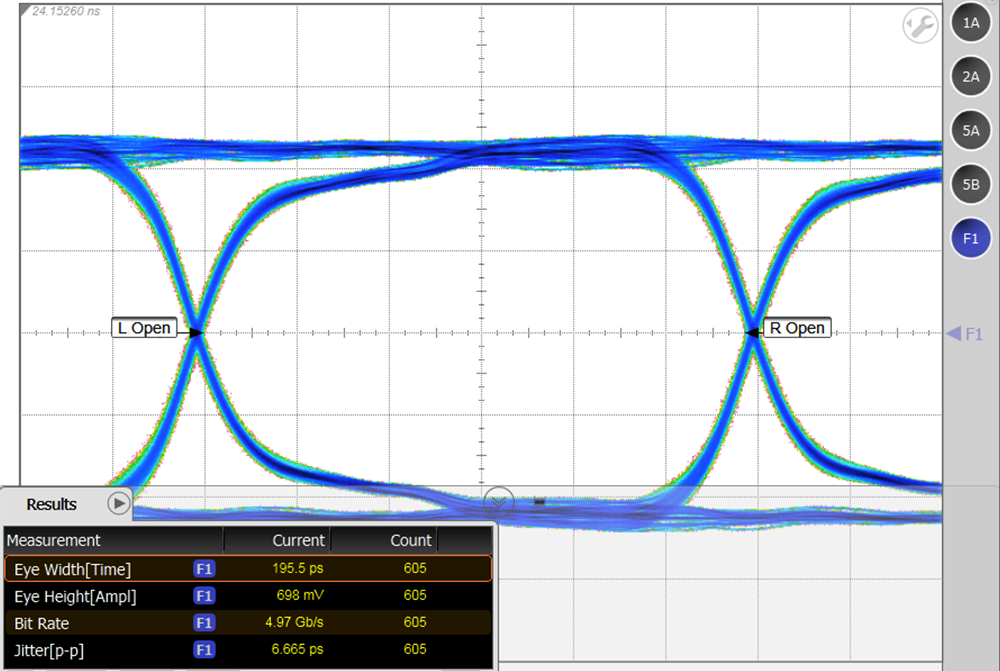

Figure 9-4 5
Gbps PRBS-7 Signals Through a Typical TMUXHS4212 Channel in TI
Evaluation Board

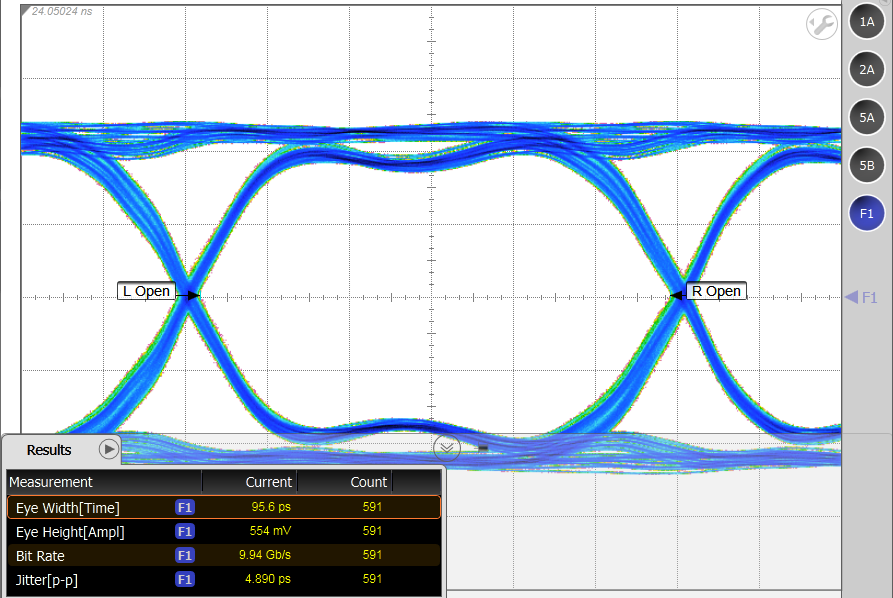

Figure 9-6 10
Gbps PRBS-7 Signals Through a Typical TMUXHS4212 Channel in TI
Evaluation Board
