6.8 Typical Characteristics

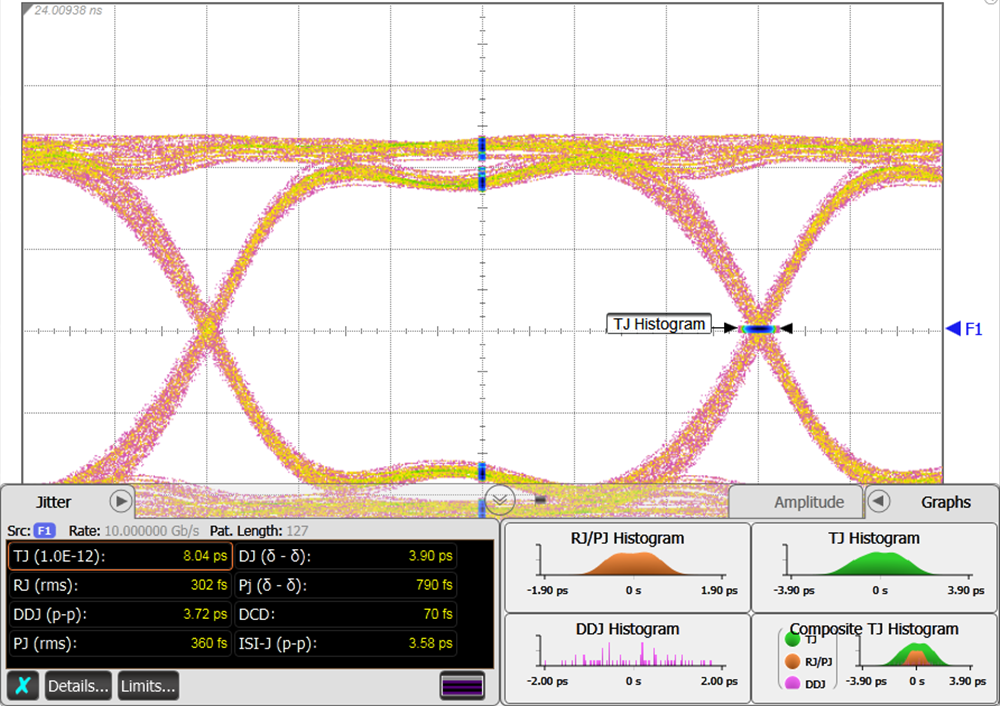

Figure 6-1 Jitter Decomposition of
10 Gbps PRBS-7 Signals Through Calibration Traces
in TI Evaluation Board

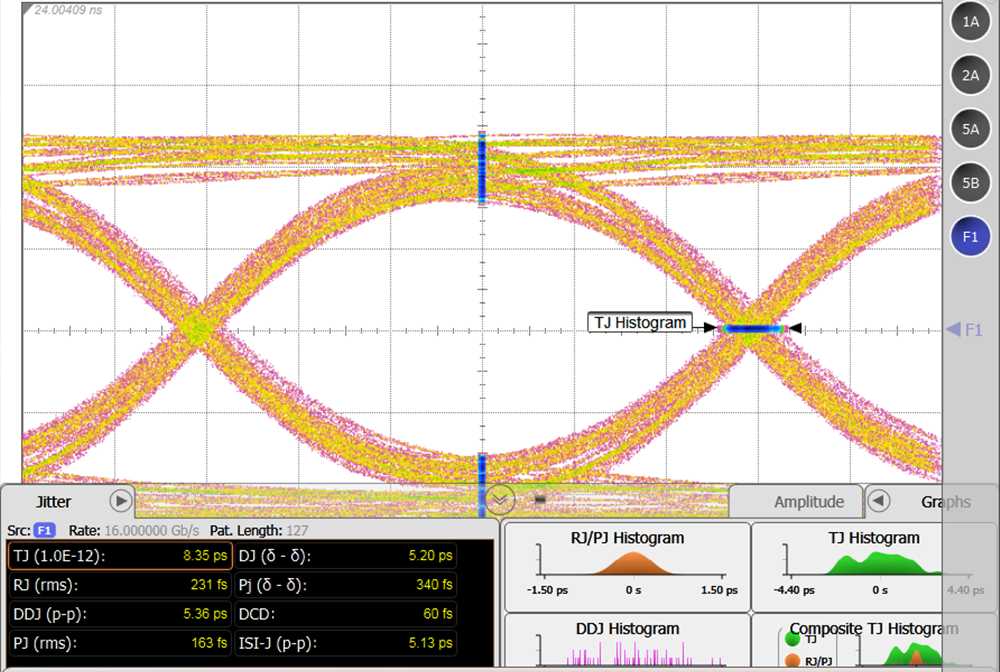

Figure 6-3 Jitter Decomposition of
16 Gbps PRBS-7 Signals Through Calibration Traces
in TI Evaluation Board

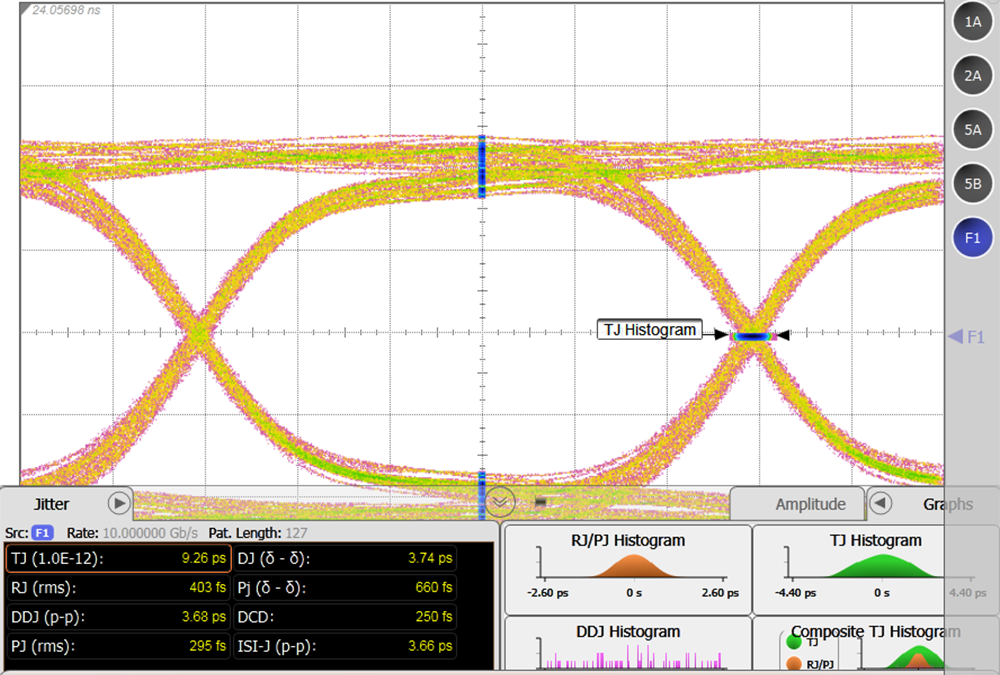

Figure 6-2 Jitter Decomposition of
10 Gbps PRBS-7 Signals Through a Typical TMUXHS4212 Channel in TI
Evaluation Board

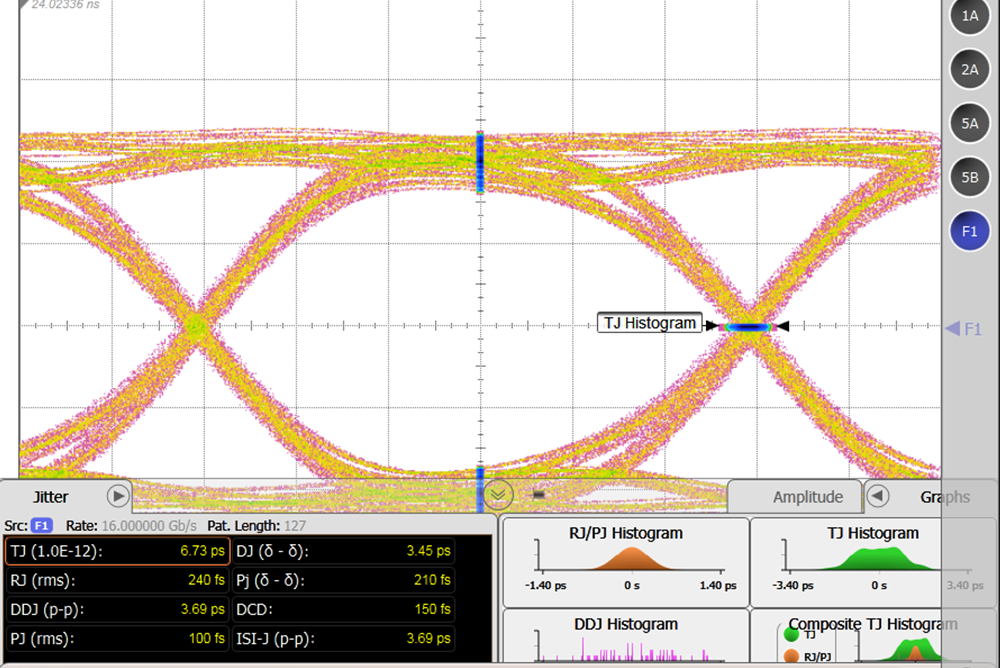

Figure 6-4 Jitter Decomposition of
16 Gbps PRBS-7 Signals Through a Typical TMUXHS4212 Channel in TI
Evaluation Board
