Figure 6-9 and Figure 6-10 show a side-by-side eye diagram comparison at 3Gbps signals through calibration traces (without the device) and a typical TMUXHS221LV channel. Attenuation of the vertical and horizontal eye opening through the device is minimal. The mux device adds only a small amount of jitter at 3Gbps.

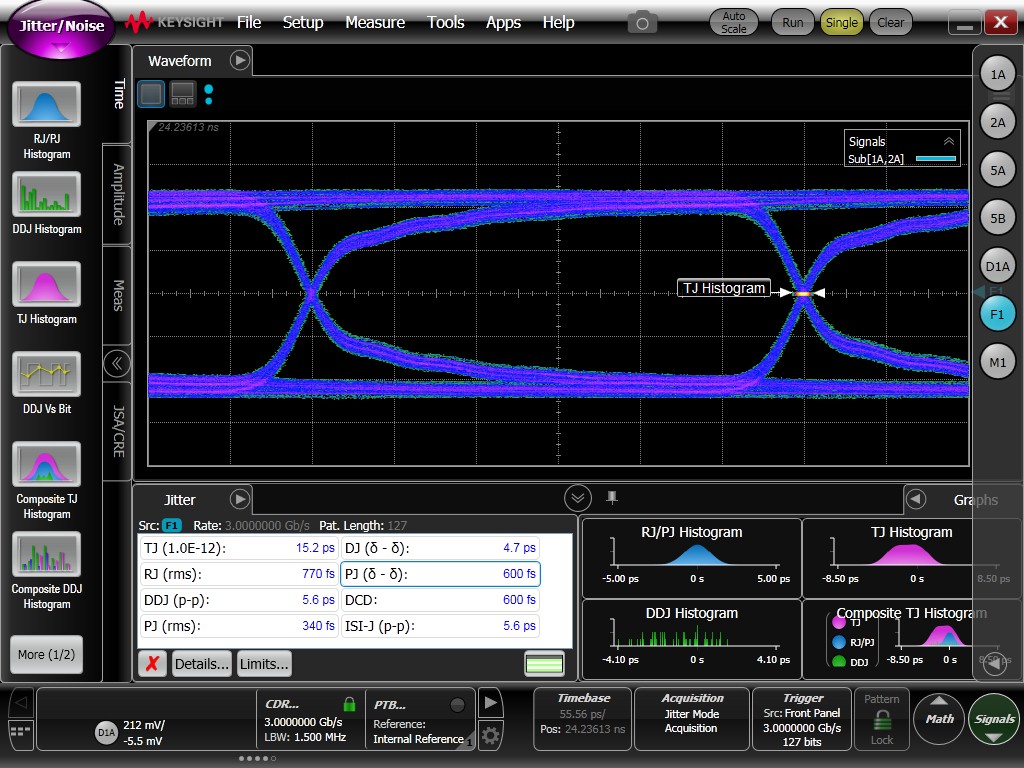

Figure 6-9 Through Calibration Traces
at 3Gbps

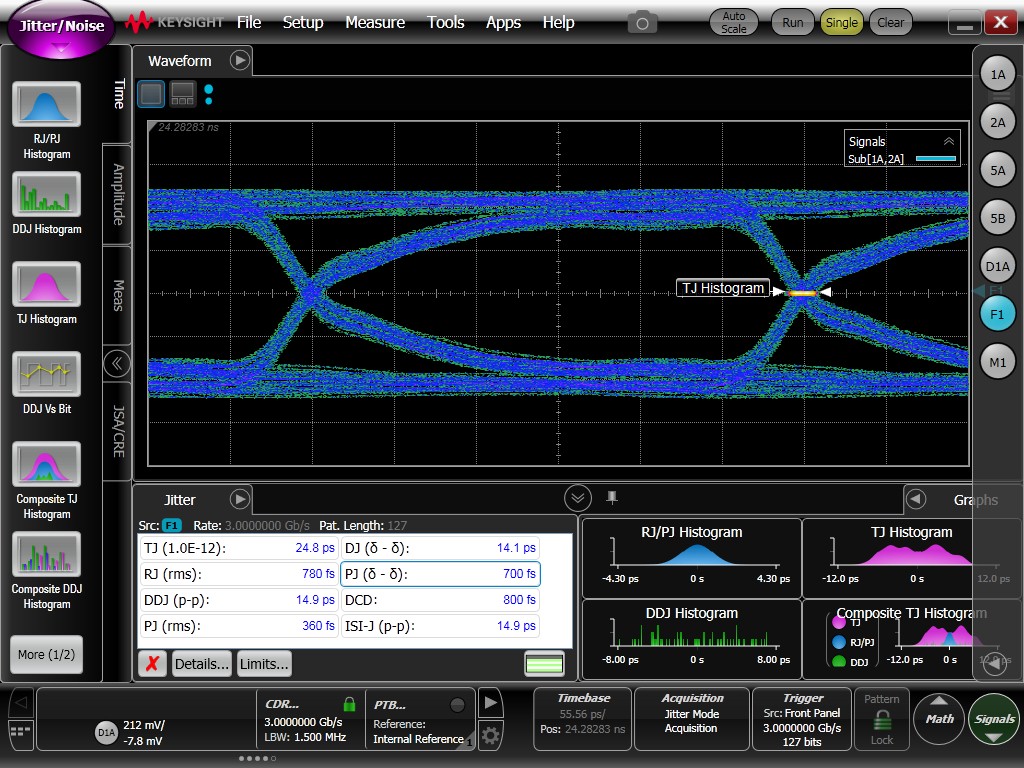

Figure 6-10 Through a Typical TMUXHS221LV Channel at 3Gbps
