7.3.6 Ultra-low Charge Injection
The TMUX1108 has a transmission gate topology, as shown in Figure 7-13. Any mismatch in the stray capacitance associated with the NMOS and PMOS causes an output level change whenever the switch is opened or closed.

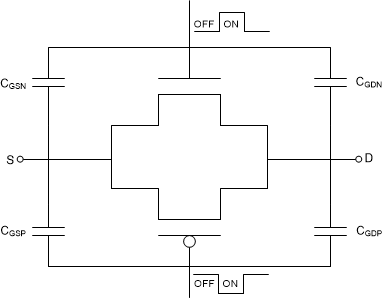

Figure 7-13 Transmission Gate TopologyThe TMUX1108 has special charge-injection cancellation circuitry that reduces the source-to-drain charge injection to as low as 1pC at VS = 1V as shown in Figure 7-14.
Figure 7-14 Charge Injection vs Source or Drain Voltage
