8.2.3 Application Curves
The following curves show the performance capabilities of the TMP451-Q1 device. Figure 8-3 shows the accuracy performance in an oil-bath temperature drift of a population of 16 standard 2N3906 transistors measured in a diode-connected configuration. Figure 8-4 shows the typical step response to a submerging of a sensor in an oil bath with temperature of 100°C.

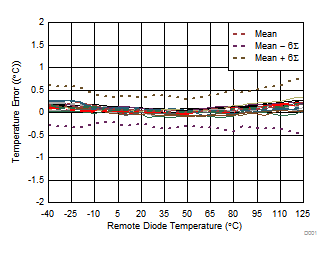

Figure 8-3 TMP451-Q1 Remote Diode Temperature
Drift (Diode-Connected 2N3906)

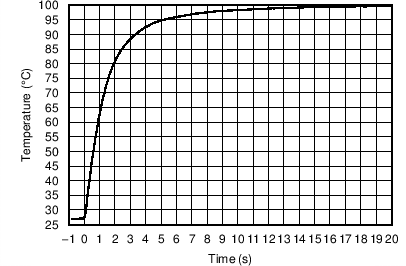

Figure 8-4 Temperature Step Response
