As shown in Figure 189, the TAS5411-Q1 can reach up to 83% into a 4-Ω load. Output power can be up to 8 W at 10% THD+N into a 4-Ω load.
The TLV320AIC3109-Q1 features a configurable MICBIAS level (that is, 2 V, 2.5 V, or AVDD). As shown in Figure 190, 2-V and 2.5-V MICBIAS levels remain stable with changes in the AVDD supply voltage. When the MICBIAS output voltage is configured as AVDD, the MICBIAS output voltage follows AVDD.

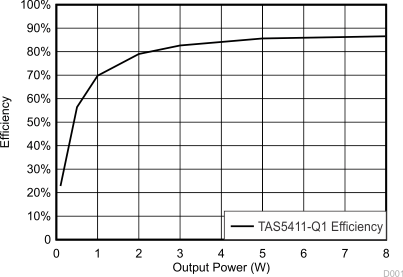

Figure 189. Efficiency Curve for the TAS5411-Q1
Figure 190. MICBIAS Output Voltage vs AVDD for the TLV320AIC3109-Q1
