8.3.6.7.3.2 Sampling Rate: 22.05 kHz to 24 kHz
Figure 8-51 shows the magnitude response and Figure 8-52 shows the pass-band ripple and phase deviation for a decimation filter with a sampling rate of 22.05 kHz to 24 kHz. Table 8-39 lists the specifications for a decimation filter with a 22.05-kHz to 24-kHz sampling rate.
Figure 8-51 Ultra-Low-Latency Decimation Filter Magnitude Response

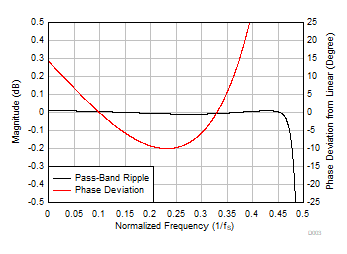

Figure 8-52 Ultra-Low-Latency Decimation Filter Pass-Band Ripple and Phase
DeviationTable 8-39 Ultra-Low-Latency Decimation Filter Specifications
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| Pass-band ripple | Frequency range is 0 to 0.46 × fS | –0.01 | 0.01 | dB | |
| Stop-band attenuation | Frequency range is 0.6 × fS onwards | 87.1 | dB | ||
| Group delay or latency | Frequency range is 0 to 0.325 × fS | 4.1 | 1/fS | ||
| Group delay deviation | Frequency range is 0 to 0.325 × fS | –0.514 | 0.514 | 1/fS | |
| Phase deviation | Frequency range is 0 to 0.325 × fS | –10.0 | 14.3 | Degrees |
