7.13 Typical Characteristics
at TA = 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS = 48 kHz, 32-bit audio data, BCLK = 256 × fS, TDM slave mode, PLL on, DRE_LVL = –36 dB, channel gain = 0 dB, and linear phase decimation filter (unless otherwise noted); all performance measurements are done with a 20-kHz, low-pass filter, and an A-weighted filter

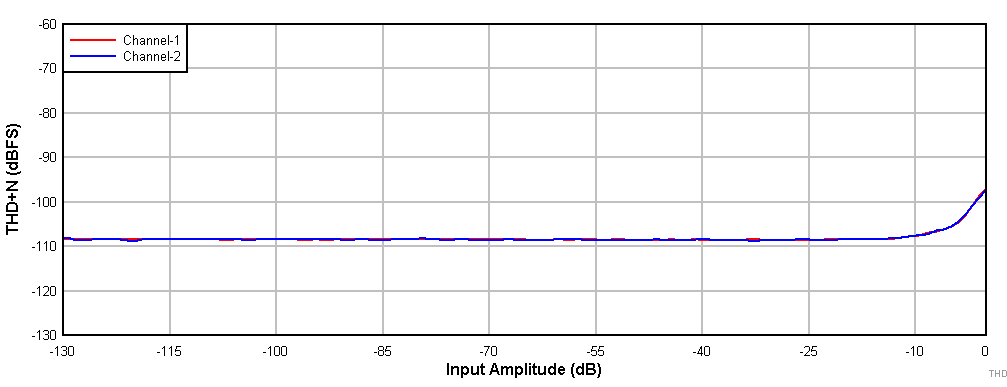

| Differential input |

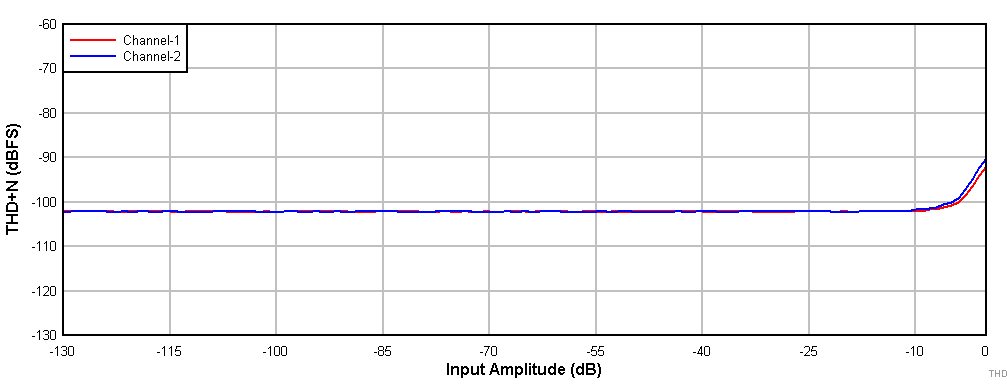

| Single-ended input |

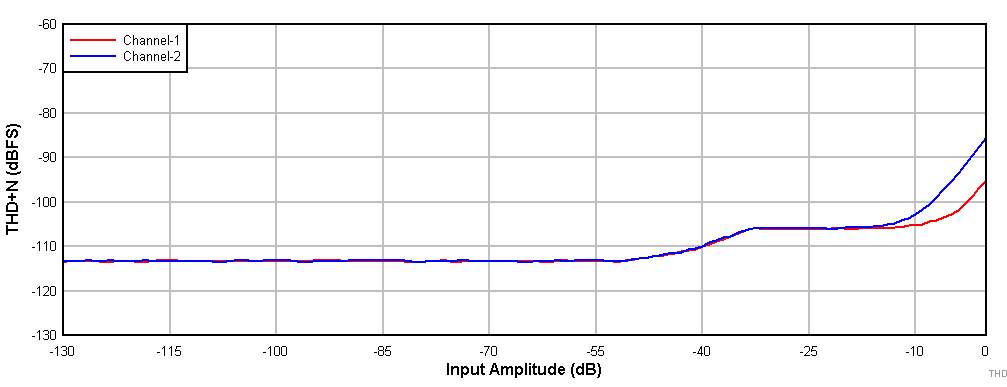

| Differential input with AVDD = 1.8 V and VREF = 1.375 V |

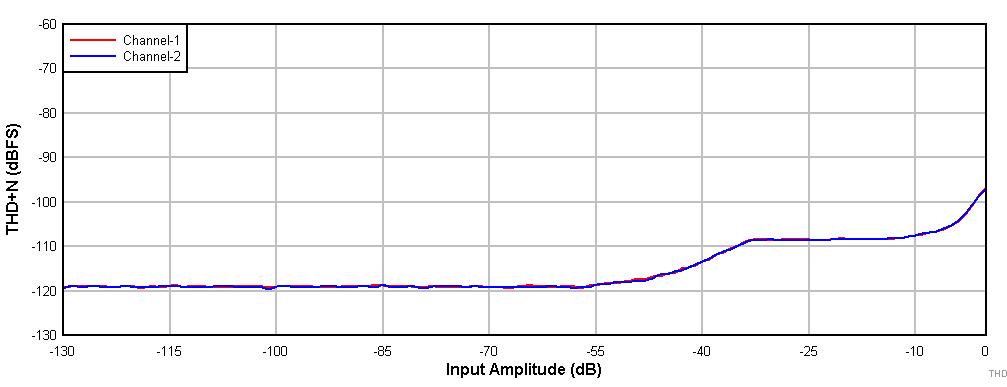

| Single-ended input |

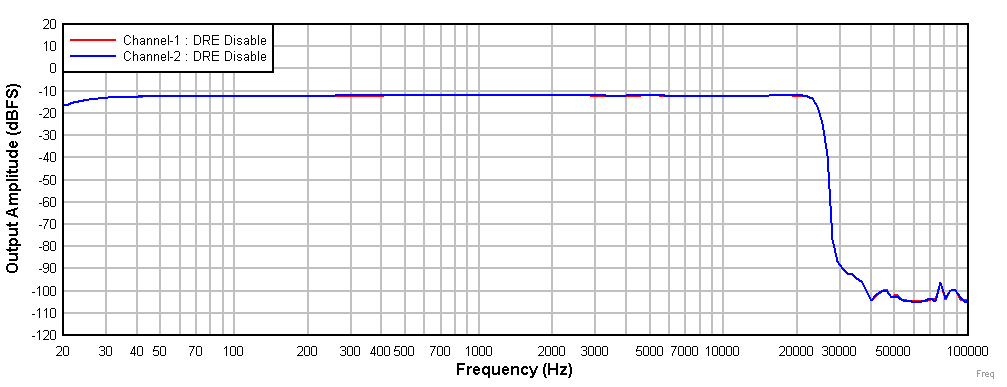

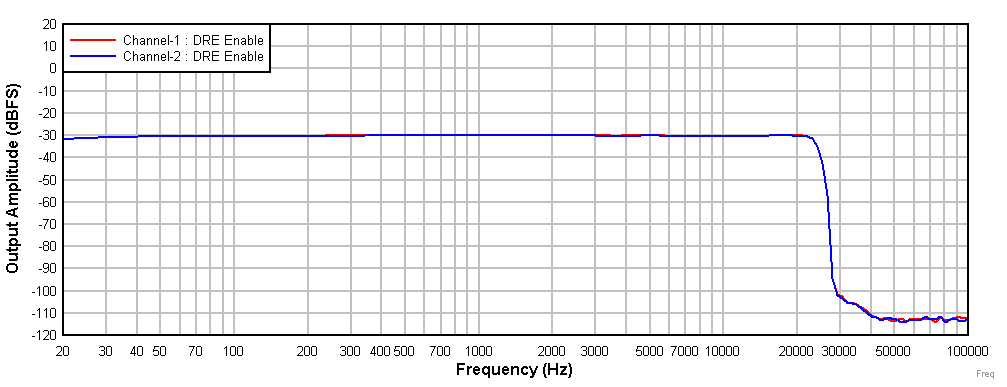

Figure 7-16 Frequency Response With a –30-dBr Input

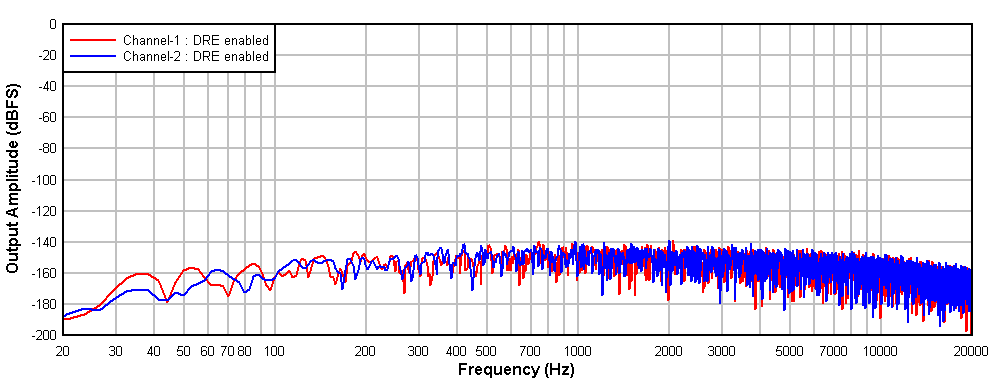

Figure 7-18 FFT
With Idle Input With DRE Enabled

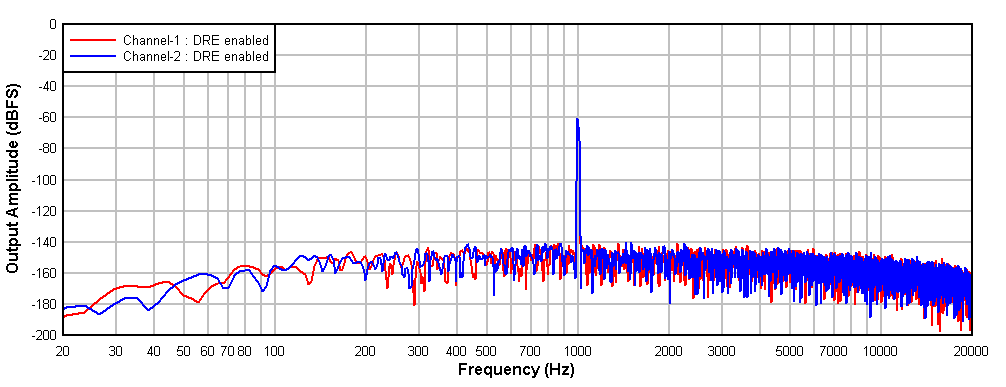

Figure 7-20 FFT
With a –60-dBr Input
With DRE Enabled

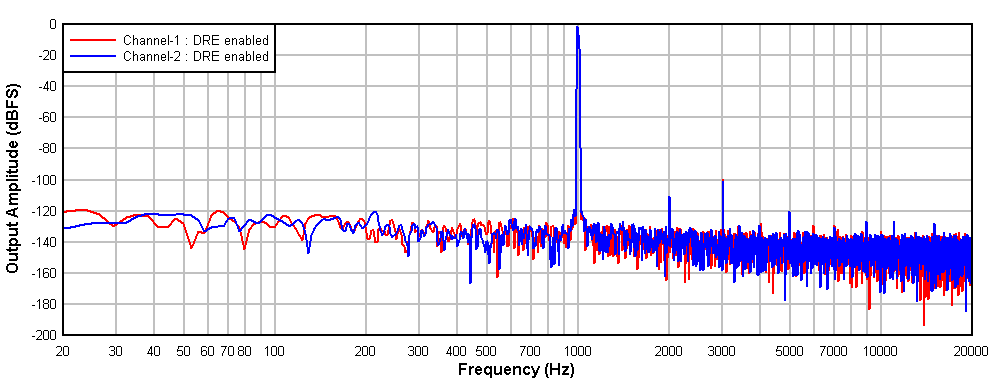

Figure 7-22 FFT
With a –1-dBr Input With
DRE Enabled

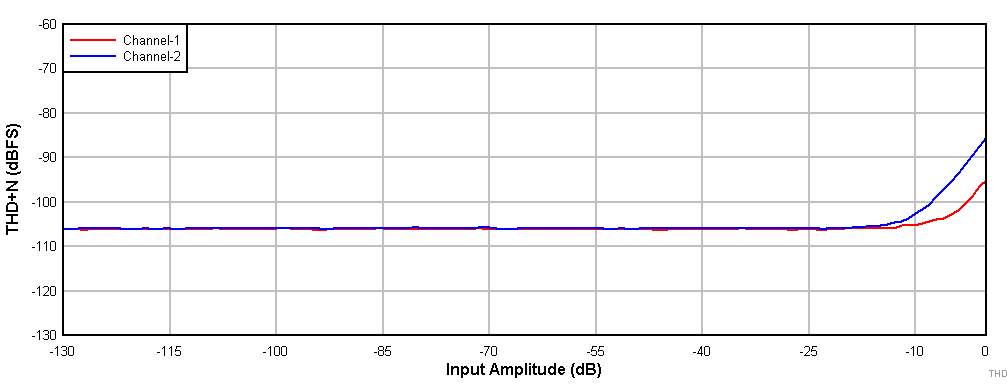

Figure 7-24 PDM Input THD+N vs Input Amplitude
Figure 7-26 PDM
Input FFT With a –60-dBr Input
| Differential input |
| Single-ended input |
| Differential input with AVDD = 1.8 V and VREF = 1.375 V |
| Differential input |
Figure 7-17 Power-Supply Rejection Ratio vs Ripple Frequency With 100-mVPP
Amplitude

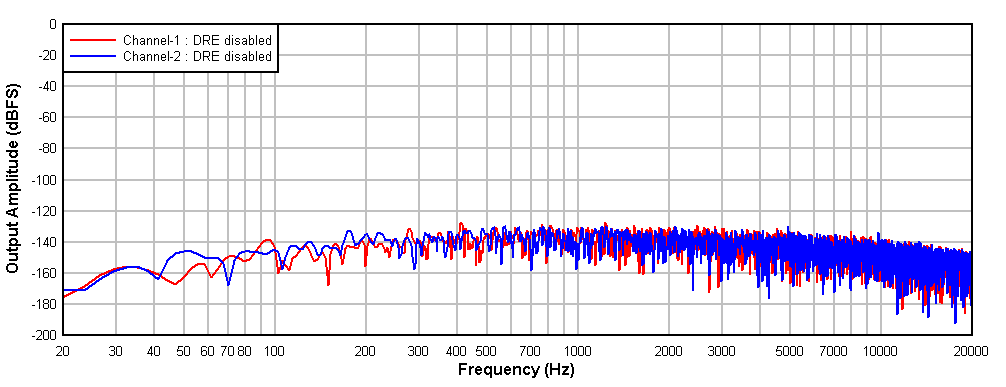

Figure 7-19 FFT
With Idle Input With DRE
Disabled

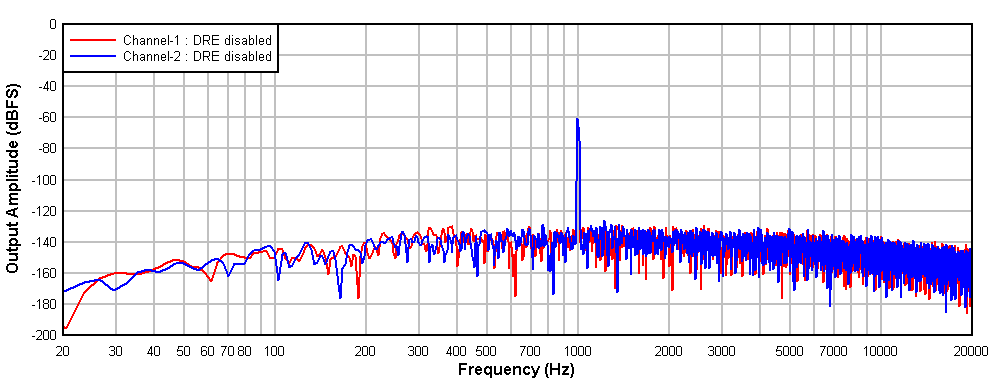

Figure 7-21 FFT
With a –60-dBr Input
With DRE Disabled
Figure 7-23 FFT
With a –1-dBr Input With
DRE Disabled
Figure 7-25 PDM
Input THD+N vs Input Frequency With a –20-dBr Input
Figure 7-27 PDM
Input Frequency Response With a –20-dBr Input
