9.2.1 Two-Channel Analog Microphone Recording

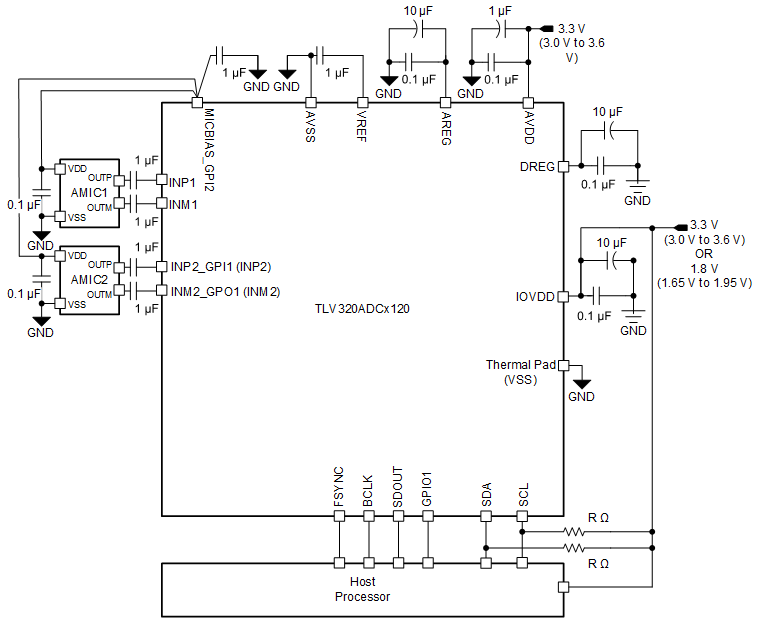

Figure 9-1 shows a typical configuration of the TLV320ADC5120 for an application using two analog microelectrical-mechanical system (MEMS) microphones for simultaneous recording operation with an I2C control interface and a time-division multiplexing (TDM) audio data slave interface. For best distortion performance, use input AC-coupling capacitors with a low-voltage coefficient.
Figure 9-1 Two-Channel
Analog Microphone Recording Diagram
