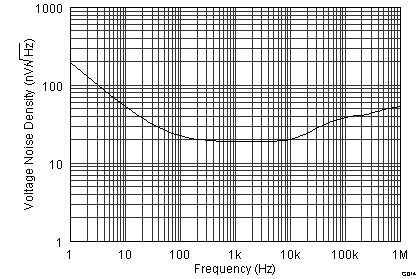

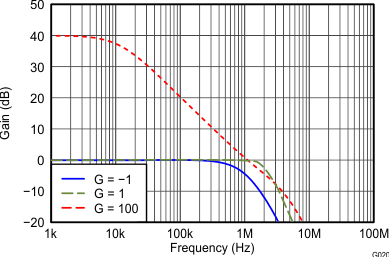

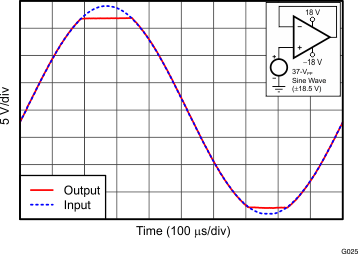

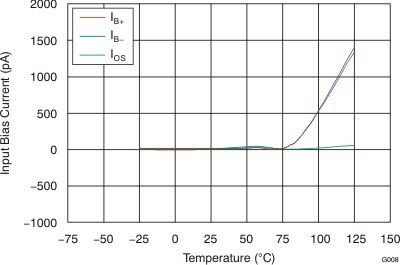

6.9 Typical Characteristics

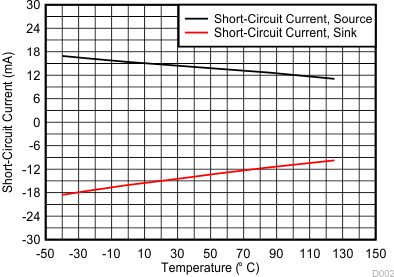

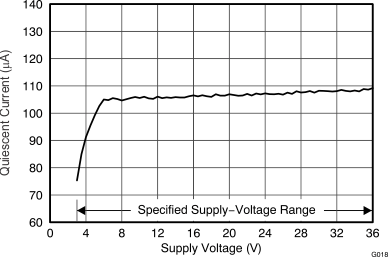

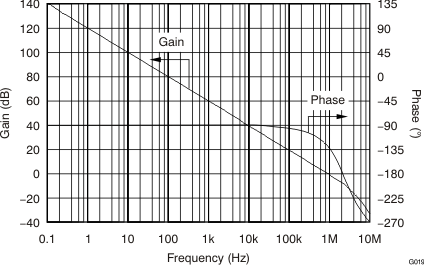

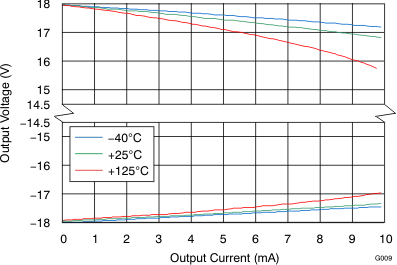

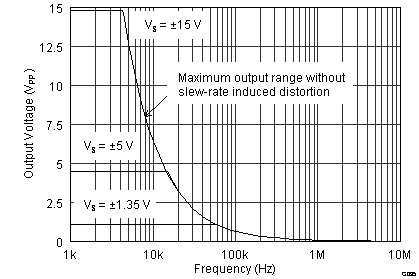

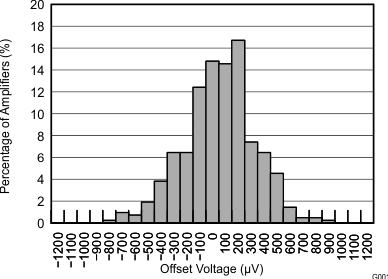

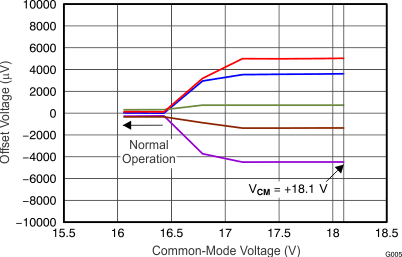

| Distribution taken from 400 amplifiers |
| 5 typical units shown |
(Upper Stage)

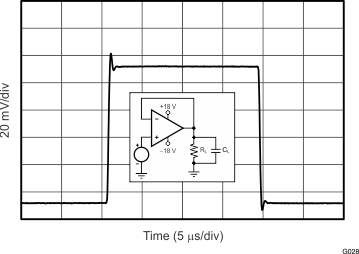

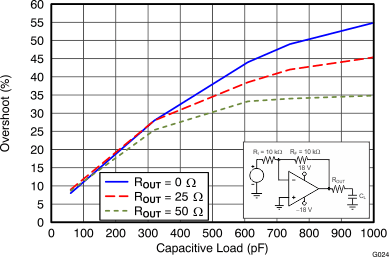

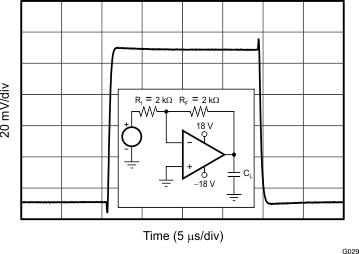

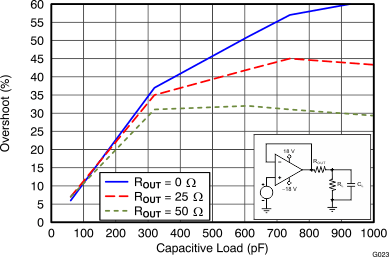

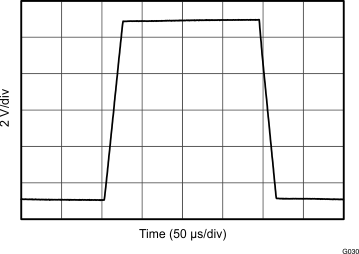

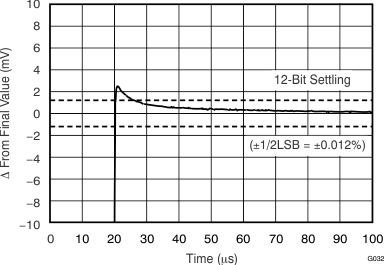

| 100-mV output step, RL = 10 kΩ, G = –1 |
| RL = 10 kΩ, CL = 10 pF, G = +1 |
| G = +1, RL = 10 kΩ, CL = 10 pF | ||
| 10-V positive step, G = +1 |

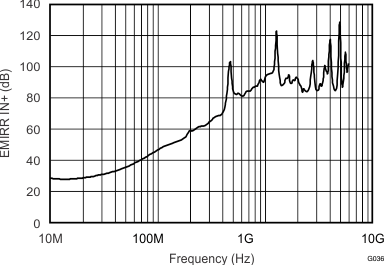

| PRP = –10 dBm, VS = ±18 V, VCM = 0 V |
| 5 typical units shown |

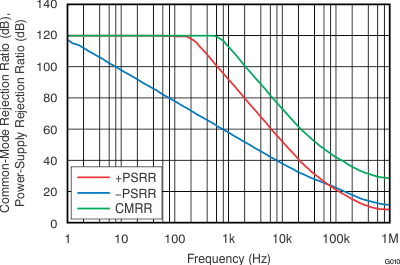

(Referred-to Input)
| 100-mV output step, RL = 10 kΩ, G = +1 |
| RL = 10 kΩ, CL = 10 pF, G = –1 |
| G = –1, RL = 10 kΩ, CL = 10 pF |
| 10-V negative step, G = –1 |
