8.2.3 Application Curves
Figure 8-2 and Figure 8-3 show the propagation delay from the TXD pin to the LIN pin for both dominant to recessive and recessive to dominant stated under lightly loaded conditions.

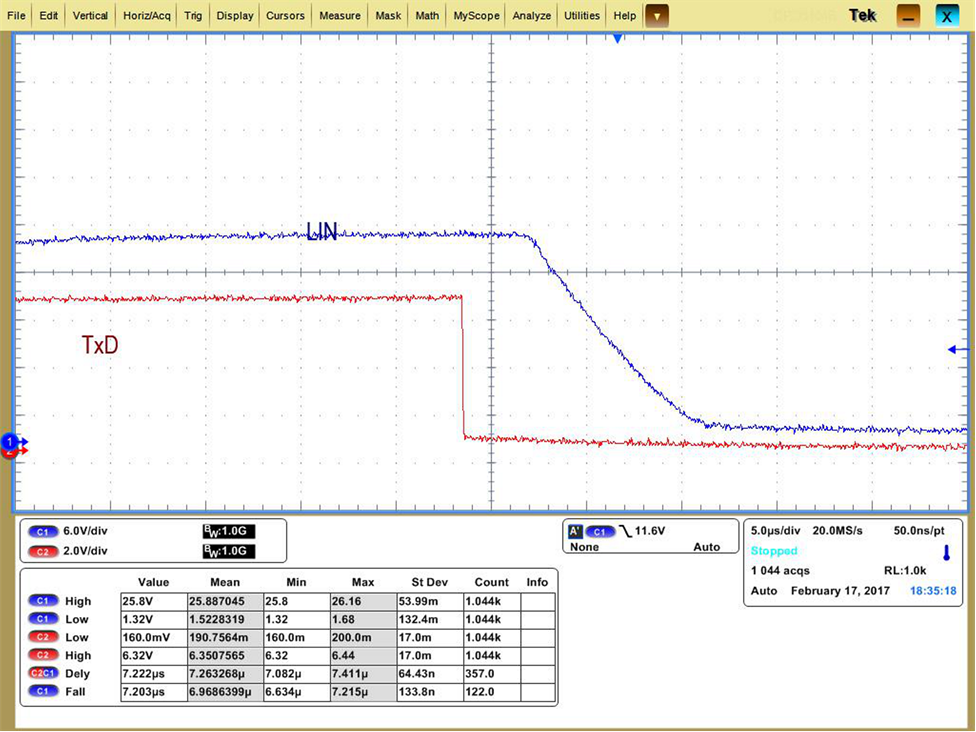

Figure 8-2 Dominant to Recessive Propagation

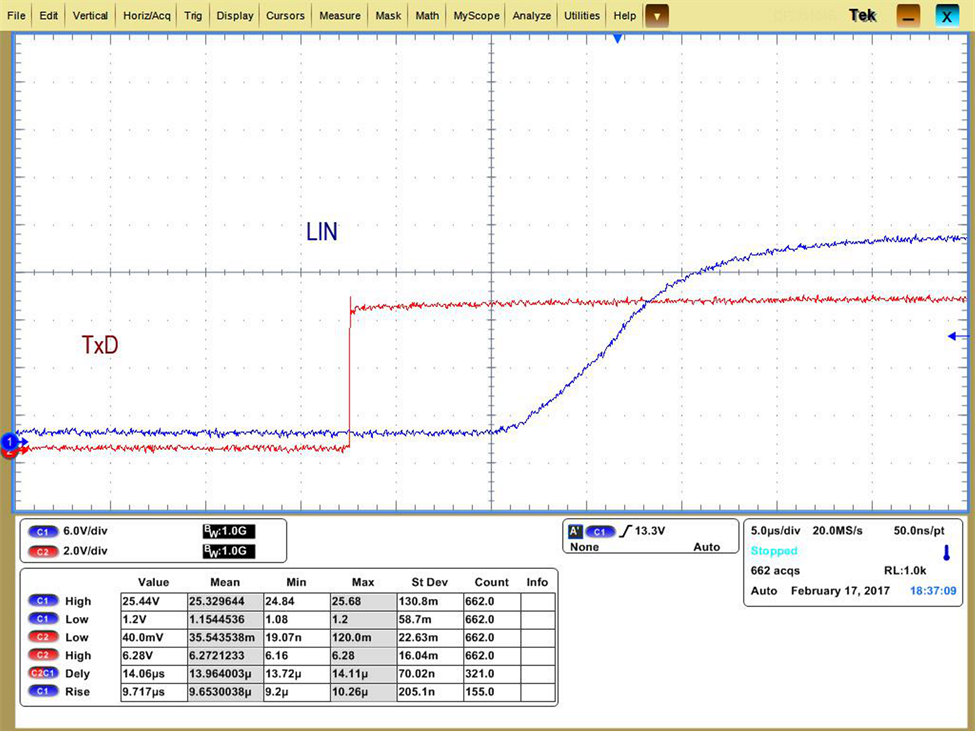

Figure 8-3 Recessive to Dominant Propagation
