10.2.3 Application Curves
The below figures show the propagation delay from the TXD pin to the LIN pin for both dominant to recessive and recessive to dominant edges. Device was configured in commander mode with external pull-up resistor (1 kΩ) and 680 pF bus capacitance.
Figure 10-2 Recessive to Dominant Propagation

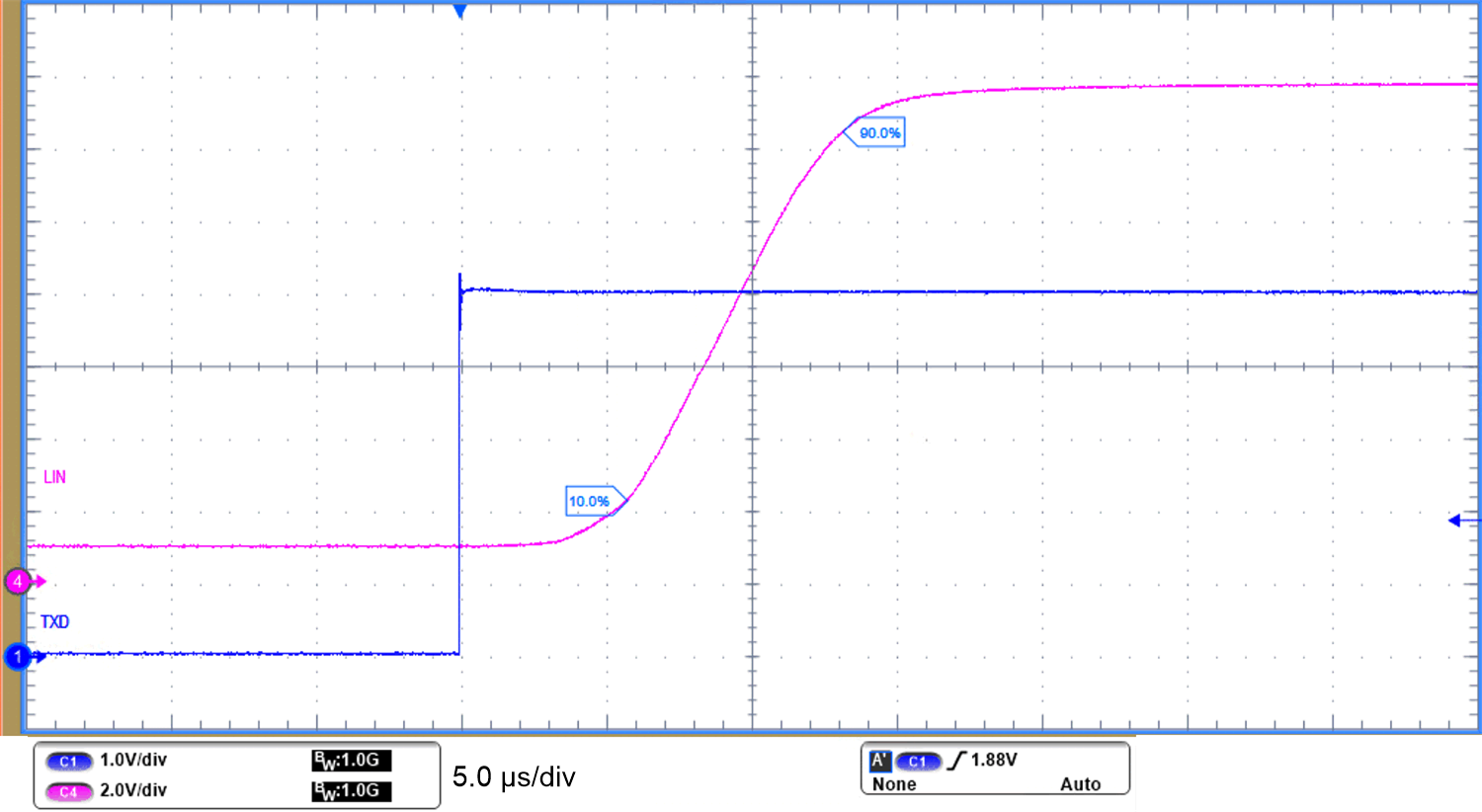

Figure 10-3 Dominant to Recessive Propagation
