7.9 Typical Characteristics

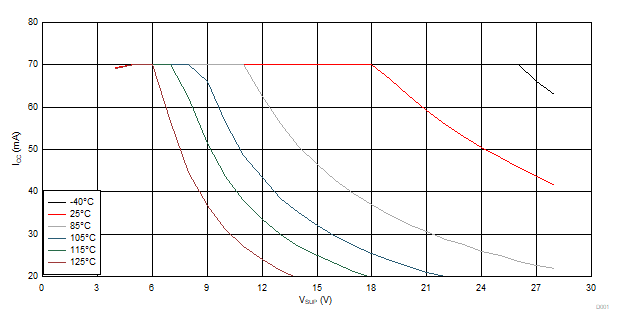

| Package = D | VCC = 3.3 V | Temp = Ambient |

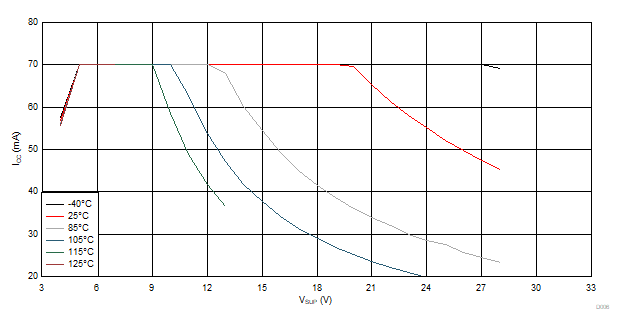

| Package = DDA | VCC = 3.3 V | Temp = Ambient |
| Package = DRB | VCC = 5 V | Temp = Ambient |
Note:

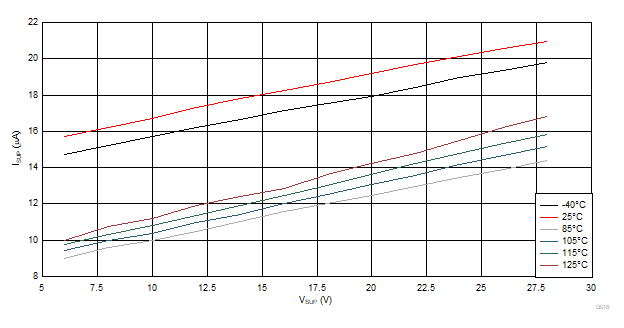

Figure 7-7 Sleep Mode Current Across VSUP and Temperature| Package = D | VCC = 3.3 V | Temp = Ambient |

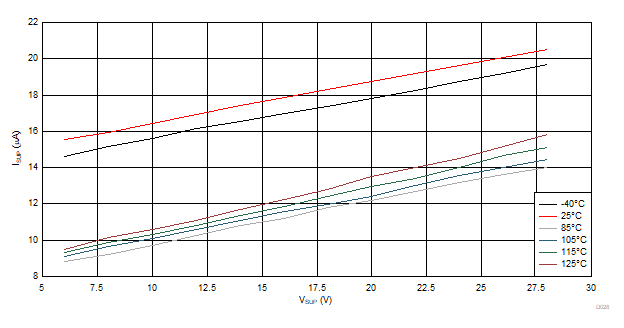

| Package = DDA | VCC = 3.3 V | Temp = Ambient |

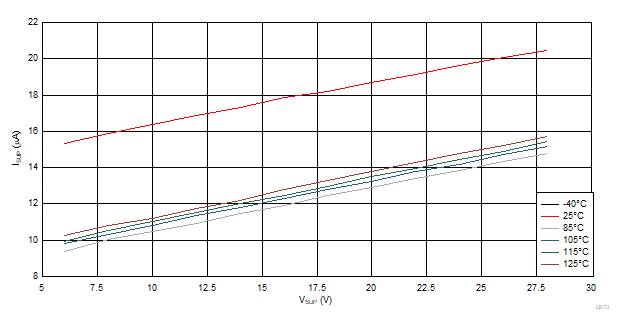

| Package = DRB | VCC = 5 V | Temp = Ambient |

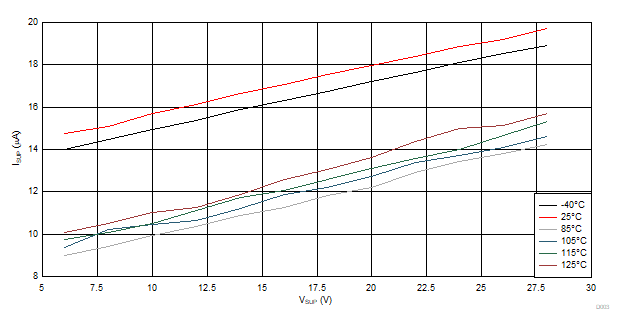

| Package = DRB | VCC = 3.3 V | Temp = Ambient |
| Package = D | VCC = 5 V | Temp = Ambient |
| Package = DDA | VCC = 5 V | Temp = Ambient |
| Package = DRB | VCC = 3.3 V | Temp = Ambient |
| Package = D | VCC = 5 V | Temp = Ambient |
| Package = DDA | VCC = 5 V | Temp = Ambient |

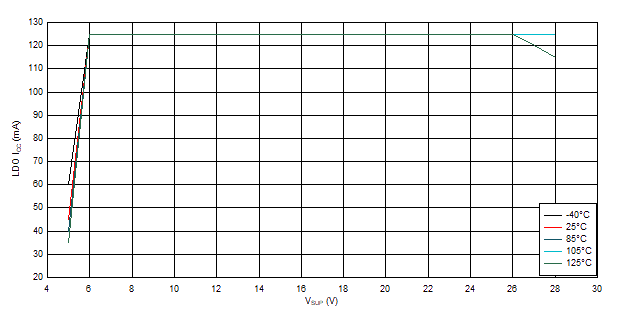

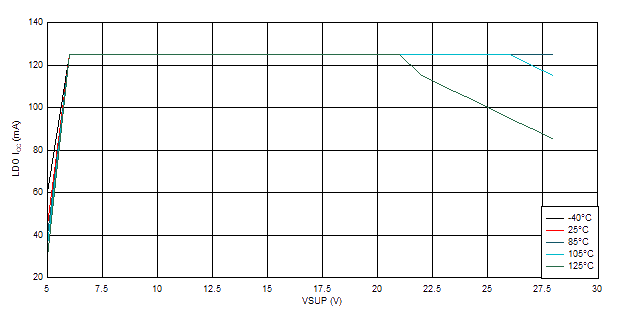

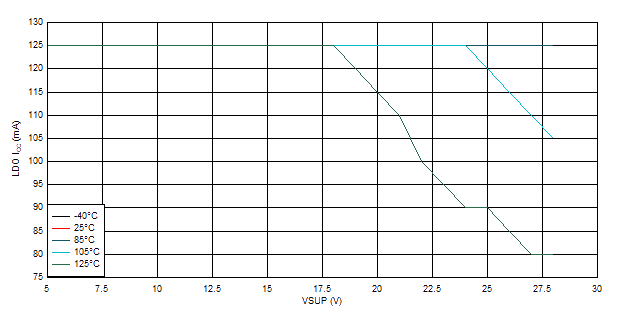

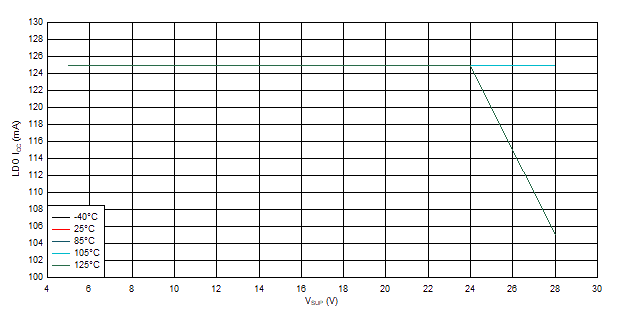

Note: For
the LDO ICC vs VSUP vs Temperature typical curves the data was
collected on a high-k EVM board using a forced air system. The curves show
performance based upon thermal resistance RθJB.
